Ceramic Fire Paper Fireproof Paper Ceramic Wool Paper

Name: Ceramic Fire Paper Fireproof Paper Ceramic Wool Paper
Brand: YAOXING
SKU: 102722159
Availability: InStock

US$ 1 - 30 MOQ: 100 Rolls

Key Specifications

Place of Origin:

Shandong, China

Application:

Heat Insulation, Fireproof in glass industry

Thickness:

3mm

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Thickness 3mm

Width 610mm

Length 20000mm

Grade ST (Standard)

Chemical Composition Al2o3,SiO2

Working Temperature 1000℃, 1000C

Fiber Diameter 3μm

Thermal Conductivity 0.075

Shrinkage (1800℉, 3h) ≤3%

Brand Name YAOXING

Model Number YXTX-236

Specifications

1.China ceramic fiber factory
2.OEM service
3.Wonderful fireproof paper
4.FORM-E,FTA
5.Fit for glass&electronics industry

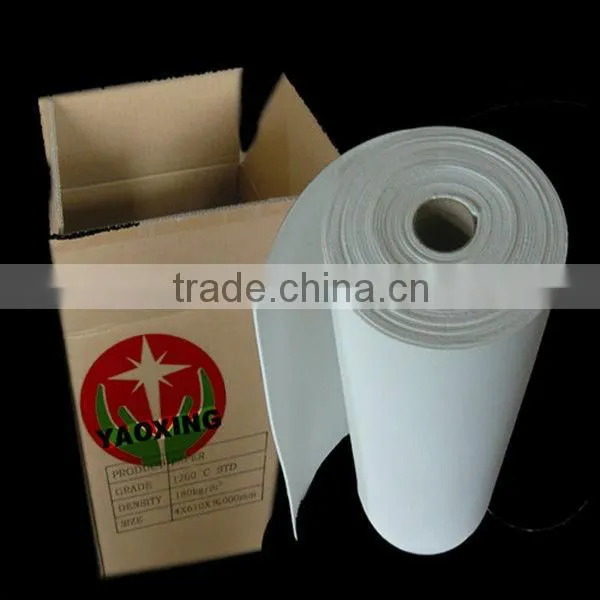

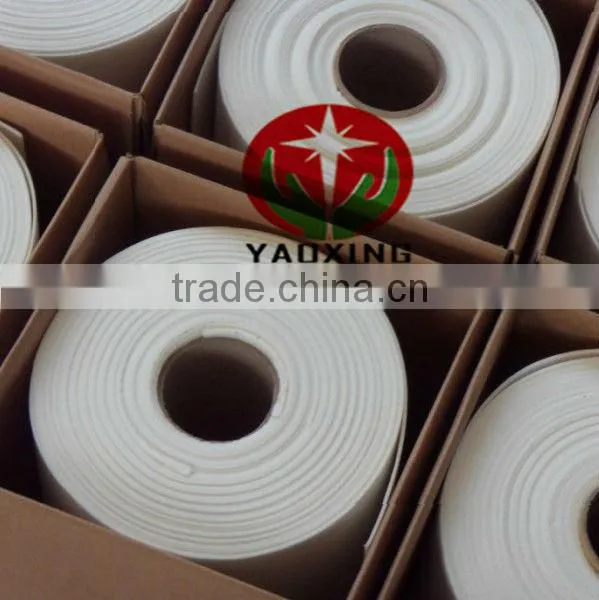

1.YAO XING ceramic fiber paper is

manufactured from high-grade ceramic fiber formed into flexible sheet.

It offers:

2.The ceramic fiber paper can be widely used in the applications where purity,

cracking resistance and heat resistance are of importance.

It provides maximum heat resistance and thermal insulation in limited space.

Technical Index

Classification Temperature		1260	1400
Name		ST Ceramic Fiber Paper	HZ Ceramic Fiber Paper
Code		YXTX-236	YXTX-336
Shrinkage on Heating (%)		1000°C×24h ≤-3	1350°C×24h≤-3
Theoretical Thermal Conductivity (W/m·k)	(200°Caverage) (400°Caverage) (600°Caverage)	0.075-0.085 0.110-0.121 0.160-0.170
Organic Content (%)		≤ 10	≤ 8
Theoretical Density (kg/m3)		200±15
Tensile Strength (Mpa)		≥0.3	≥0.2
Moisture Content(%)		≤1
Specification (mm)		100000/12000×610/1220×0.5/7, According to your requirements
Package		Plastic Bag Inside, Carton Box Outside
Quality Control System		ISO9001-2000, ISO14001-1996
