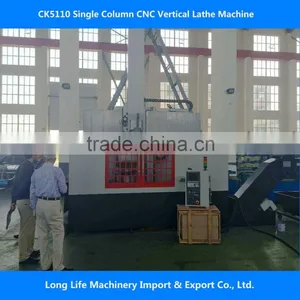

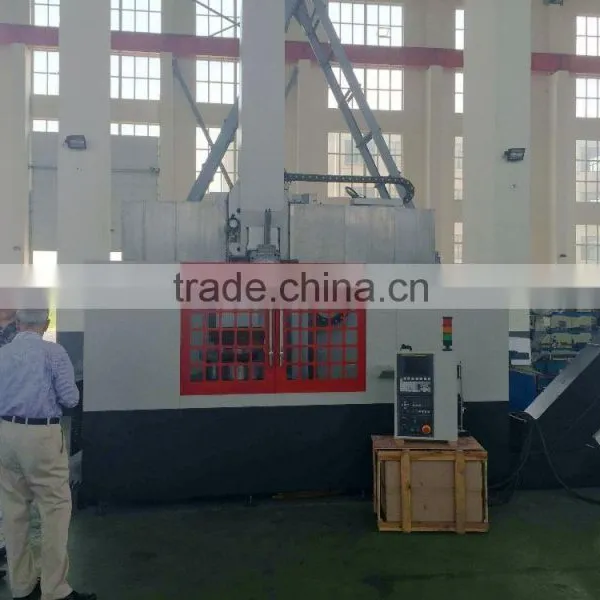

CK5110 Single Column Cnc Vertical Lathe Machine for Sale

US$ 50,500 - 52,219 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1000mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number CK5110 single column cnc vertical lathe machine

Voltage Customer's Requirement

Power(W) 22kW

Dimension(L*W*H) depends

Weight 9000kgs

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CK5110 single column cnc vertical lathe machine

Main Technical Data

Specifications	Unit	Parameter
Max. turning diameter	mm	1000
Worktable diameter	mm	900
Max. turning height	mm	1000
Max.workpiece weight	t	2
Table speed range	r/min	8~250(GSK 980TDC) 10~315(FANUC OI MATE TD)
Table speed series	Grade	16
Max. table torque	Kn/m	10
Too post feeding range(X/Z axis)	mm/min	0.1~1000
Too post feed rate/grade		stepless
Vertical tool post horizontal travel	mm	670
Vertical tool post vertical travel	mm	650
Vertical tool rest maximum cutting force	KN	20
Tool post fast moving speed(X/Z axis)	mm/min	3000
Bean travel	mm	580
Beam lift speed	mm/min	440
Tool rod section size (length * width)	mm	30×40
Main motor power	kW	22
Machine weight(about)	T	9
Nc axes		X, Z Biaxial linkage
Location accuracy	mm	0.03
Repositioning resolution	mm	0.015
Processing dimensional accuracy		IT 7

Control System

S/N	Item	Details
1	Control system	FANUC OI-MATE TD/GSK 980TDC
2	Controlled Axes	2Axis
3	Compounding axis number	2Axis
4	Nc axes	X ,Z
5	Interpolation	Straight line and arc
6	Compensation	With reverse clearance, pitch error compensation and tool wear compensation and nose radius compensation
7	Coordinate setting	Workpiece coordinate setting
8	Displayer	Color display in English
9	Multiplying power	Fast rate
10	Controller	Built-inprogrammablecontroller
11	Programme	Drawing size programming directly
12	Feed	With a manual electronic hand wheel feed (hand pulse generator)
13	Alarm	Machine tools and operating all kinds of alarm display
14	Port	External computer interface RS - 232 - c, CF card and Ethernet front-end ports
15	Real time copying	Figure trace real-time display
16	Manual feed	Hand pulser X, Z axis
