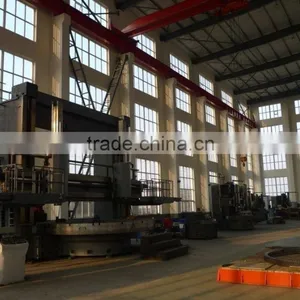

C52100 Super Large double column vertical lathe
Such double column vertical lathe has following features:
1. double column vertical lathe;
2. with DRO and CE Certificate;
3. such vertical lathe is suitable for turning the ferrous, nonferrous metal and some kinds of non-metal materials with hard alloy, high capacity and high speed steel tools.
4.Main bodies of the machine are made of high rigid resin sand castings with thermal aging treatment. Steel parts are thermal refined.
5.The machine adopts a stable rigid structure and consists mainly of base, table, column, cross rail, tool head, hydraulic system and electric system. Cross rail moves up and down along guideways of the column.
Specifications |
Unit |
Parameter |
Max. turning diameter |
mm |
10000 |
Table diameter |
mm |
7100 |
Max. working height of workpiece |
mm |
4000 |
Max. weight of workpiece |
T |
100 |
Travel of tool post Horizontal |
mm |
-20~5400 |
Cutting resistance of right tool pos t |
KN |
80 |
Cutting resistance of left tool post |
KN |
63 |
Max. torque of table |
KN·m |
640 |
Travel of ram Vertical |
mm |
2520 |
Power of main motor |
kW |
DC132 |
Rapid traveling speed of tool post |
mm/min |
4000 |
Table guide |
|
Hydrostatic |
Moving degrees limit of tool post |
|
-15 º ~+ 30 º |
Speed range of table |
r/min |
0.16~16 |
kinds of colors for your choice/can be customized
