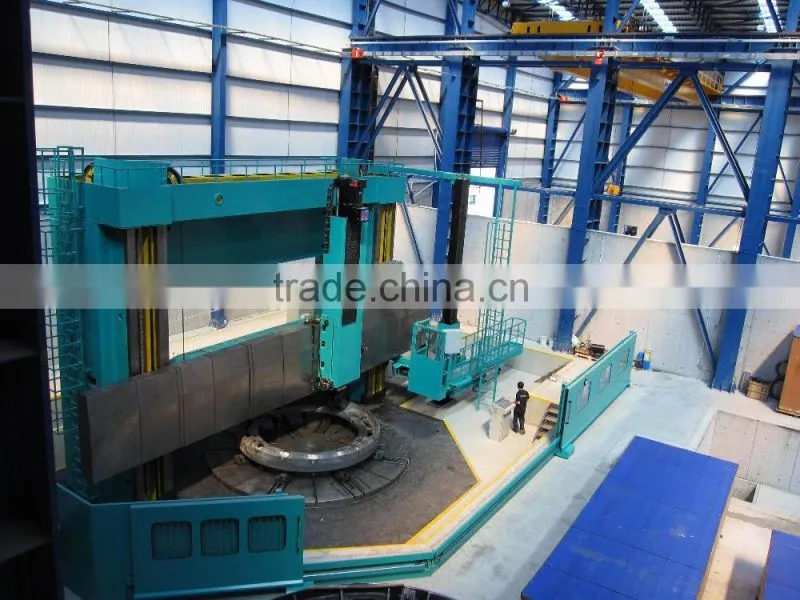

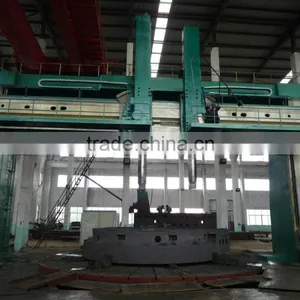

CK52100 Large cnc vertical lathe Technical Data
The CNC vertical lathe is of excellent performance, a wide range of technology, high productivity.
Based on referring to the advanced machine design and manufacturing technology, adopting the newest design philosophy, and combining the profound corporate culture, our company has developed a kind of delicate machine tools with mechatronics and hydraulics integration, and provided the world-class products for overseas and domestic customers.
To make the lathe with high turning precision and enough rigidity and intensity, the table adopts integral casting and thermal symmetric structure, the main shaft bearing is the high-precision double row cylindrical roller bearing, and the table guideway;
Specifications |
Unit |
Parameter |
Max. turning diameter of railhead |
mm |
10000 |
Table diameter |
mm |
7100 |
Max. working height of workpiece |
mm |
4000 |
Max. weight of workpiece |
T |
100 |
Sectional size of tool bar |
mm |
100×100 |
Max. cutting resistance of tool post |
KN |
Right:80 left:63 |
Max. torque of table |
KN.m |
640 |
Speed range of table |
r/min |
0.16~16 |
Feed range of tool post |
mm/min |
0.1-500 |
Rapid traveling speed of tool post |
mm/min |
4000 |
Travel of tool post (Horizontal) |
mm |
-50~5400 |
Travel of tool post (Vertical) |
mm |
2500 |
Table guide |
|
hydrostatic |
Max. travel of the crossbeam |
mm |
3000 |
Moving speed of the crossbeam |
mm/min |
230 |
Sectional size of the ram |
|
320~360 |
Controller |
|
Siemens802D or Optional |
Position accuracy |
mm |
Test and evaluate accuracy according to GB/T17421.2-2000 |
Positional Accuracy |
mm |
X/Z 0.03/1000 |
Repeatable positional accuracy |
mm |
X/Z 0.015/1000 |
Reverse positional accuracy |
mm |
X/Z 0.010/1000 |
Temperature range |
|
0~40° |
Ambient humidity |
|
≤85% |
Power supply and voltage |
|
380V±10% |
Power of main motor |
kW |
DC132 |
kinds of colors for your choice/can be customized
