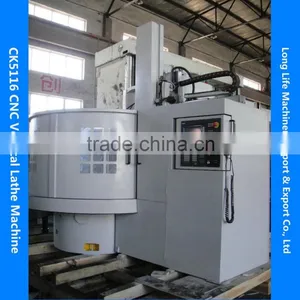

CK5116 larger cnc vertical lathe machine
Such cnc column vertical lathe has following features:
1. single column vertical lathe;
2. CE Certificate and kinds of cnc controllers for your choice: Fanuc, Siemens, GSK and so on;
3.Suitable for high speed steel tools and carbide cutting tool machining all kinds of non-ferrous metal, black metal and part of the non-metallic materials.
4. The variable speed is convenient,quick and reliable. The Gear is setted in the system. 40Cr is used in all gear grinding gear,which has high rotation accuracy, low noise characteristics.
Specifications |
Unit |
Parameter |
Max. turning diameter |
mm |
1600 |
Max. working height of workpiece |
mm |
1400/1600 opt |
Max. weight of workpiece |
t |
5 |
Table diameter |
mm |
1400 |
Speed-step of table |
|
Four gears stepless |
Speed range of table |
r/min |
2.5~200 |
Max. torque of table |
KN.m |
16 |
Power of main motor |
KW |
30 |
Max. cutting resistance of tool post |
KN |
16 |
Travel of ram of railhead |
mm |
800 |
Rapid traveling speed of railhead (x,z axis) |
mm/min |
2000 |
Travel of railhead Horizontal |
mm |
-20~915 |
Feeding steps of railhead (x,z axis) |
|
stepless |
Feed range of railhead (x,z axis) |
mm/min |
0.1~2000 |
Sectional size of tool bar |
mm |
32×32 |
Travel of crossbeam |
mm |
1050 |
Traveling speed of crossbeam |
mm/min |
440 |
Power of motor for going up and down of crossbeam |
KW |
2.2 |
Positional accuracy (x,z axis) |
mm |
0.03/1000 |
Repeatable positional accuracy (x,z axis) |
mm |
0.015/1000 |
Power supply and voltage |
|
|
Controller |
|
Siemens 802D |
kinds of colors for your choice/can be customized
Semi-cover
