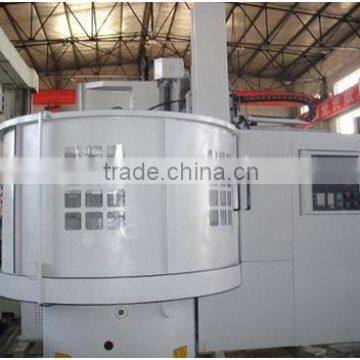

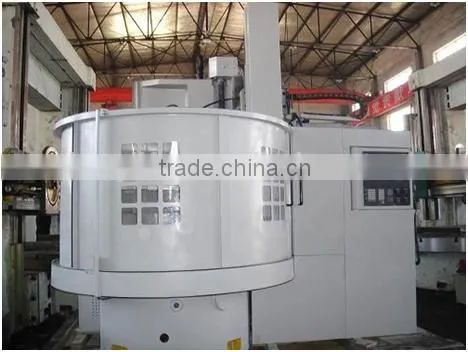

CK5123 CE Larger Single Column Cnc Vertical Lathe

US$ 116,000 - 136,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China;

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 12500mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number CK5123 single column cnc vertical lathe

Voltage 220V/380V/415V/440V/480V 50/60Hz

Power(W) 37kW

Dimension(L*W*H) depends

Weight 17 tons

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CK5123 Larger CNC Vertical Lathe Technical Data

Main Featurers:

Suitable for high speed steel tools and carbide cutting tool machining all kinds of non-ferrous metal, black metal and part of the non-metallic materials.
The variable speed is convenient,quick and reliable. The Gear is setted in the system. 40Cr is used in all gear grinding gear,which has high rotation accuracy, low noise characteristics.
Kinds of CNC controllers for your choice: Fanuc, Siemens, GSK and so on;

Specifications	Unit	Parameter
Max. turning diameter	mm	2300
Max. working height of workpiece	mm	1400/2000 opt
Max. weight of workpiece	t	8
Table diameter	mm	2000
Speed-step of table		Four gears stepless
Speed range of table	r/min	2.5~100
Max. torque of table	KN.m	32
Power of main motor	KW	37
Max. cutting resistance of tool post	KN	20
Travel of ram of railhead	mm	800
Rapid traveling speed of railhead (x,z axis)	mm/min	2000
Travel of railhead Horizontal	mm	-20~1150
Feeding steps of railhead (x,z axis)		Stepless
Feed range of railhead (x,z axis)	mm/min	0.1~2000
Sectional size of tool bar	mm	32×40
Travel of crossbeam	mm	1100
Traveling speed of crossbeam	mm/min	440
Power of motor for going up and down of crossbeam	KW	2.2
Positional accuracy (x,z axis)	mm	0.03/1000
Repeatable positional accuracy (x,z axis)	mm	0.015/1000
Power supply and voltage		440V±10%
Controller		Siemens 802D
