Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > Q35Y-20 Hydraulic Combined Ironworkers With CE

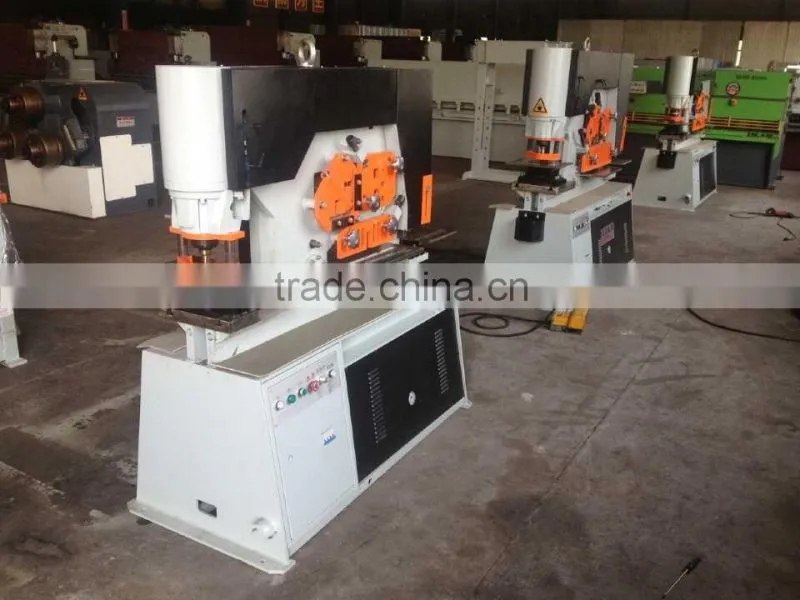

Q35Y-20 Hydraulic Combined Ironworkers With CE

US$ 12,917 - 13,017 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Power Source:

Hydraulic

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Power Source Hydraulic

Place of Origin Liaoning, China

Brand Name LFM

Model Number Q35Y-20(75tons)

Power(W) 5.5kW

Certification CE;ISO9001-2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Q35Y-20 Hydraulic Iron Worker Technical Data

Product Description

Q35Y iron worker is a muti-purpose ironworker, hydraulic type;
can be fore cutting, bending and notching small piece of steel.
Normally it equipped with 5 sets of standard mold tools for cutting, shearing, punching. some molds shall be customized according to customers' requirement.

Main Technical Data:

Specifications	Unit	Parameter
Punching pressure	T	75
The maximum thickness can be cut	mm	20
Plate strength	N//mm²	≤450
Shearing angle	°	8
One-time cut sheet(length* width)	mm	20x330 10x480
Slide stroke	mm	80
Stroke times	time/min	8
Throat depth	mm	355
Punching thickness	mm	20
Maximum punching diameter	mm	Φ30
Cutting circular steel	mm	Φ50
Equilateral angle steel	mm	90°Cut 140×140×12 45°Cut 70×70×10
Square steel	mm	50X50
Steel trough*	mm	126×53×5.5
H Shape of the steel*	mm	160x60x6.5
T Shape of the steel*	mm	90°Cut 120×120×12 45°Cut 60×60×8
Motor	KW	5.5
Machine dimension	mm	1860×840×1900
Package dimension	mm	2100×1150×2200
Machine weight/Gross weight	kg	2300/3200

*: its corresponding mould shall be ordered separately.

Tel:+86 -15641121240/15641121140

Fax:+86-411-84410129

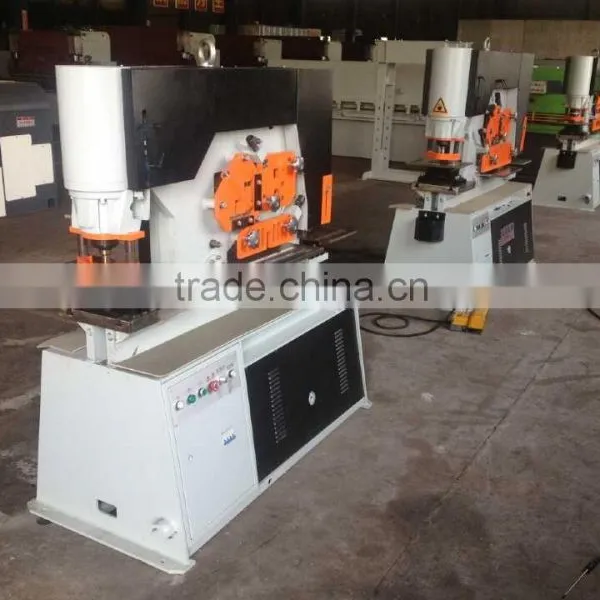

Real Photos:

Our Service:

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129
