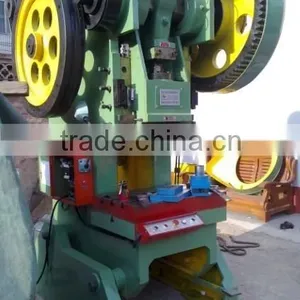

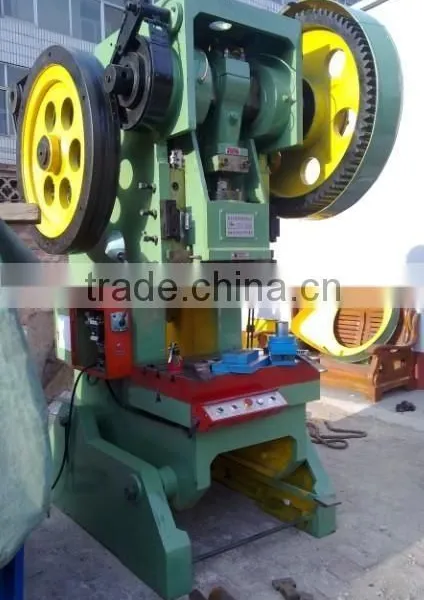

J23-100T Mechnical Accentric Press Machine

US$ 14,942 - 14,942 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Mechanical

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Mechanical

Place of Origin Liaoning, China

Brand Name LFM

Model Number J23-100T accentric press machine

Voltage 220V,380V,440V 50/60Hz

Power(W) 11kW

Weight 6500kgs

Dimension(L*W*H) 2200x1550x3100mm

Certification ISO9001, CE

Warranty 12 months after delivery

After-sales Service Provided Engineers available to service machinery overseas

J23-100T accentric press machine technical data

Main Features

Such eccentric press machine has following features:

Casting body,
inclinable body.
horizontally placed crankshaft is used;
rolling bearing is used instead of copper bush with lower noise and longer service life;
J23-80 and the upon models adopt balance cylinders;
Manual shut height adjustment with scale display;
High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

Main Usage

Main Technical Data

Specifications	Unit	Parameter
Nominal pressure	KN	1000
Slipper stroke	mm	120
Stroke times	s.m.p	50
Max. closing height	mm	300
Adjustment of closing height	mm	90
Throat depth	mm	300
Pole distance	mm	400
Thickness of bench	mm	100
Bench size (L and R)	mm	800
Bench size (F and B)	mm	500
Size of slipper (L and R)	mm	380
Size of slipper (F and B)	mm	300
Size of punch shank hole(Dia.)	mm	60
Size of punch shank hole(Depth)	mm	60
Dimension	mm	F and B: 2200 L and R: 1550 Height: 3100
Main motor power	kW	11
N.W/G.W	kg	6500/8000
Packing size	mm	3300×1800×2500
