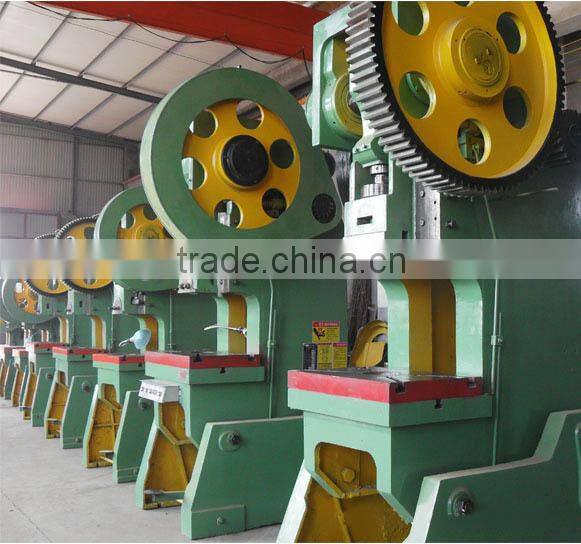

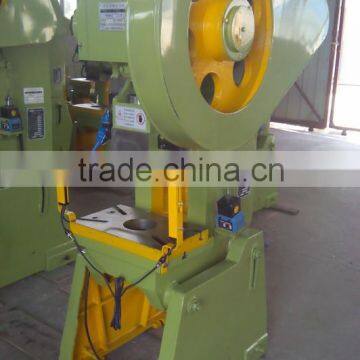

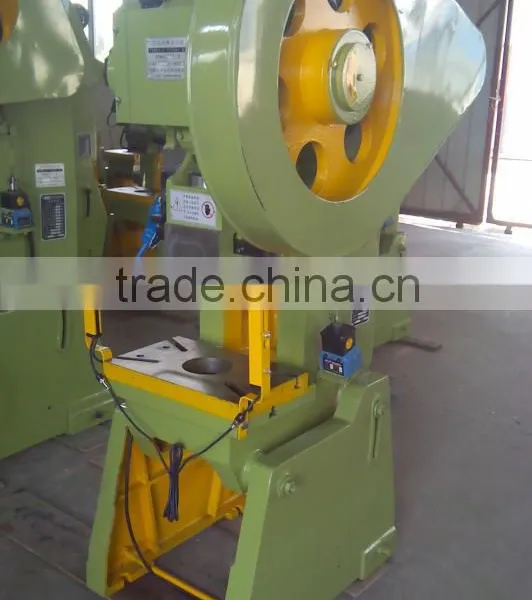

J23-80T accentric power press machine
- 100 Set / Sets per Month
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | Normal | Power Source: | Mechanical |
Place of Origin: | Liaoning, China | Brand Name: | LFM | Model Number: | J23-80T accentric power press machine |
Voltage: | 220V,380V,440V 50/60Hz | Power(W): | 7.5KW | Weight: | 4800kgs |
Dimension(L*W*H): | 1800x1550x2600mm | Certification: | ISO9001, CE | Warranty: | 12 months after delivery |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
J23-80T accentric press machine technical data
- Casting body,
- inclinable body.
- horizontally placed crankshaft is used;
- rolling bearing is used instead of copper bush with lower noise and longer service life;
- J23-80 and the upon models adopt balance cylinders;
- Manual shut height adjustment with scale display;
- High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
Main Usage:
- For cutting, punching, blanking, bending and light stretching work and so on;
Specifications | Unit | Parameter |
Nominal pressure | kN | 800 |
Slipper stroke | mm | 112 |
Stroke times | s.m.p | 45 |
Max. closing height | mm | 275 |
Adjustment of closing height | mm | 80 |
Throat depth | mm | 290 |
Pole distance | mm | 340 |
Thickness of bench | mm | 90 |
Bench size (L and R) | mm | 800 |
Bench size (F and B) | mm | 450 |
Size of slipper (L and R) | mm | 380 |
Size of slipper (F and B) | mm | 260 |
Size of punch shank hole(Dia.) | mm | 60 |
Size of punch shank hole (Depth) | mm | 60 |
Dimension | mm | F and B: 1800 L and R: 1550 Height: 2600 |
Main motor power | KW | 7.5 |
N.W/G.W | kg | 4800/6500 |
Packing size | mm | 2900×1800×2100 |
Kinds of colors for your choice/can be Customized according to user's demand;
