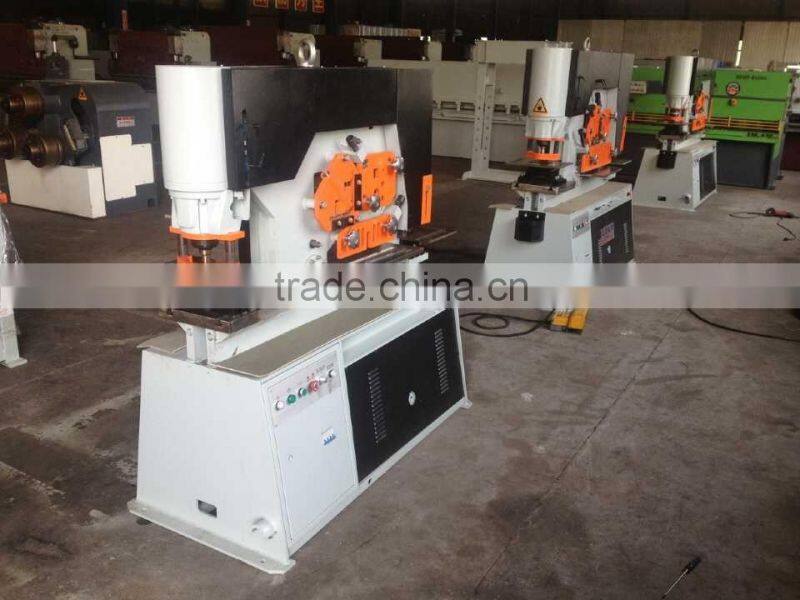

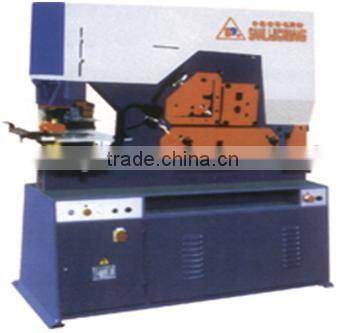

Q35Y-16 Hydraulic Iron Worker Machine With CE

US$ 13,555 - 13,885 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Hydraulic

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Hydraulic

Place of Origin Liaoning, China

Brand Name LFM

Model Number Q35Y-16(55T)

Voltage 220V 380V 400V 415V 440V 480V

Power(W) 5.5kW

Certification CE;ISO9001-2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

Q35Y-16 Hydraulic Iron Worker Technical Data

Main introduction:

Q35Y iron worker is a muti-purpose ironworker, hydraulic type;
can be fore cutting, bending and notching small piece of steel.

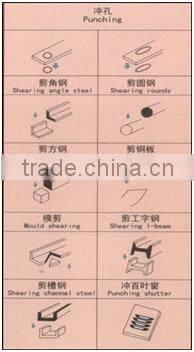

Normally it equipped with 5 sets of standard mold tools for cutting, shearing, punching. some molds shall be customized according to customers' requirement.

Specifications	Unit	Parameter
Punching pressure	T	55
The maximum thickness can be cut	mm	16
Plate strength	N//mm²	≤450
Shearing angle		7°
One-time cut sheet(length* width)	mm	16×250 8×400
Slide stroke	mm	80
Stroke times	time/min	8
Throat depth	mm	300
Punching thickness	mm	16
Maximum punching diameter	mm	Φ25
Cutting circular steel	mm	Φ45
Equilateral angle steel	mm	90°Cut 125×125×12 45°Cut 70×70×8
Square steel	mm	40×40
Steel trough*	mm	126×53×5.5
H Shape of the steel*	mm	126×74×5
T Shape of the steel*	mm	90°Cut 120×120×12 45°Cut 60×60×8
Motor	KW	7.5
Dimension	mm	1640×730×1770
Machine weight	kg	1700
