Thermal Paper Engine Hood Insulation Heat Resistant Paper

Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
Thermal Paper Engine Hood Insulation Heat Resistant Paper thumbnail-1
Thermal Paper Engine Hood Insulation Heat Resistant Paper thumbnail-2
Thermal Paper Engine Hood Insulation Heat Resistant Paper thumbnail-3
Thermal Paper Engine Hood Insulation Heat Resistant Paper thumbnail-4
Thermal Paper Engine Hood Insulation Heat Resistant Paper thumbnail-5
Thermal Paper Engine Hood Insulation Heat Resistant Paper thumbnail-6
Thermal Paper Engine Hood Insulation Heat Resistant Paper photo-1
Thermal Paper Engine Hood Insulation Heat Resistant Paper photo-2
Thermal Paper Engine Hood Insulation Heat Resistant Paper photo-3
Thermal Paper Engine Hood Insulation Heat Resistant Paper photo-4
Thermal Paper Engine Hood Insulation Heat Resistant Paper photo-5
Thermal Paper Engine Hood Insulation Heat Resistant Paper photo-6
Negotiable MOQ: 100 Rolls (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Application:
Refractory, Engine hood insulation
Thickness:
0.5-7mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Thickness 0.5-7mm
Width 610/1220mm
Length 100000-12000mm
Grade HZ (High Zirconium)
Chemical Composition Al2O3≥38% ,ZrO2≥15%
Working Temperature 1350
Fiber Diameter 3μm
Thermal Conductivity 0.075
Shrinkage (1800℉, 3h) ≤3%
Brand Name YAOXING
Model Number YXTX-336







Product Description





THERMAL PAPER





Technical Index



Classification Temperature

1260

1400

Code

YXTX-236

YXTX-336

Shrinkage on Heating (%)

1000°C×24h≤-3

1350°C×24h≤-3

Theoretical

 Thermal

Conductivity

(W/m·k)

(200°Caverage)

(400°Caverage)

(600°Caverage)

0.075-0.085

0.115-0.121

0.165-0.175

Theoretical Density (kg/m3)

200±15

200±15

Specification (mm)

100000/12000×610/1220×0.5/7,

According to your requirements

Tensile Strength(MPa)

≥0.04

AL2O3(%)

45-46

38~47

ZrO2

-

15~17

AL2O3+SiO2(%)

≥97

—

AL2O3+SiO2+ZrO2(%)

—

≥99

Fe2O3(%)

≤1.0

≤0.2

K2O+Na2O(%)

≤0.5

≤0.2

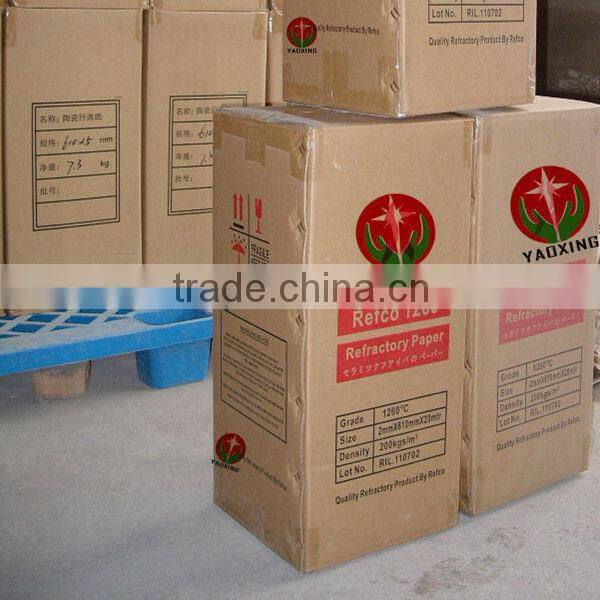

Package

Plastic Bag Inside, Carton Outside

Quality Control System

ISO9001-2000, ISO14001-1996





Size:



0.5mmX610/1220mmX90meters



0.7mmX610/1220mmX80meters



1mm  X610/1220mmX60meters



2mm  X610/1220mmX30meters



3mm  X610/1220mmX20meters



4mm  X610/1220mmX15meters



5mm  X610/1220mmX12meters



Characteristic:



1.Low Heat Storage



2.Low Thermal Conductivity



3.Excellent Thermal Electrical Insulation



4.Excellent Machine-processed Capability



5.Excellent Broken Resistance



6.Excellent Flexibility



7.Low Shot Content



Application:



1.Industrial insulating ,sealing and protecting materials



2.Electric and thermal insulation materials for electric industry



3.Insulation materials for instrument-equipment



4.Insulating materials for motor industry



5.Filling materials for expansion slot



6.Insulating materials as the sinter resistance



7.Sealing gasket for molten metal



8.Fireproof materials









thermal paper engine hood insulation heat resistant paperthermal paper engine hood insulation heat resistant paperthermal paper engine hood insulation heat resistant paper
