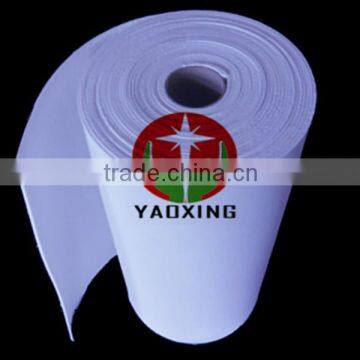

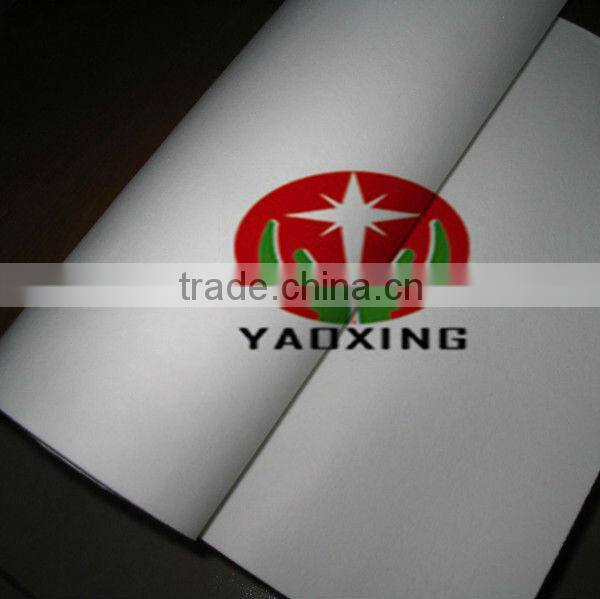

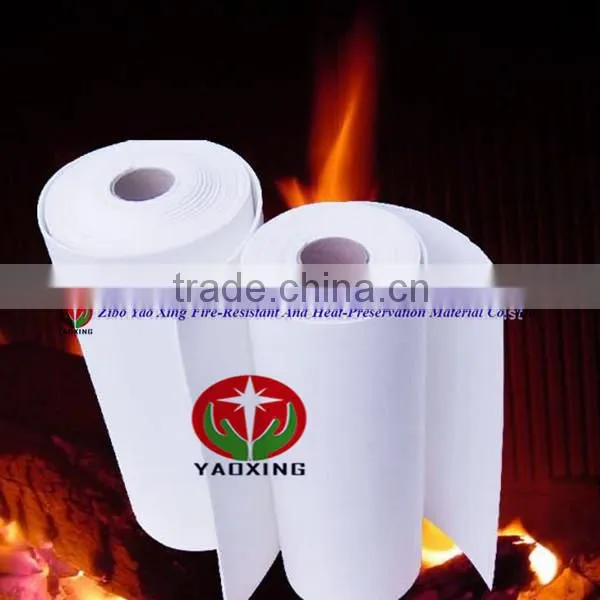

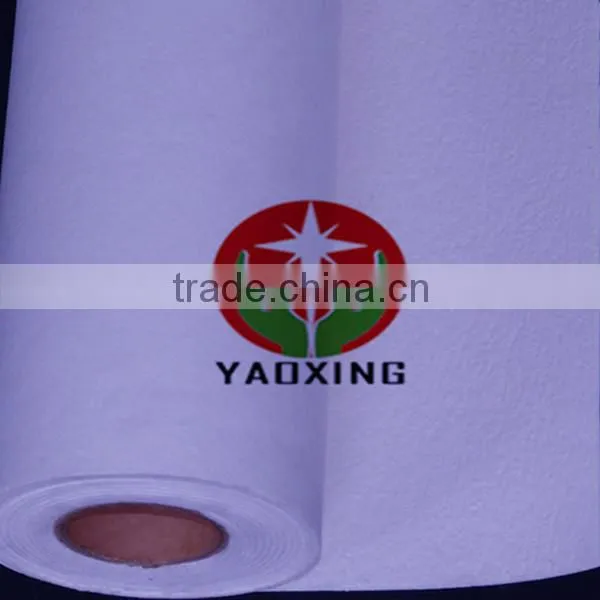

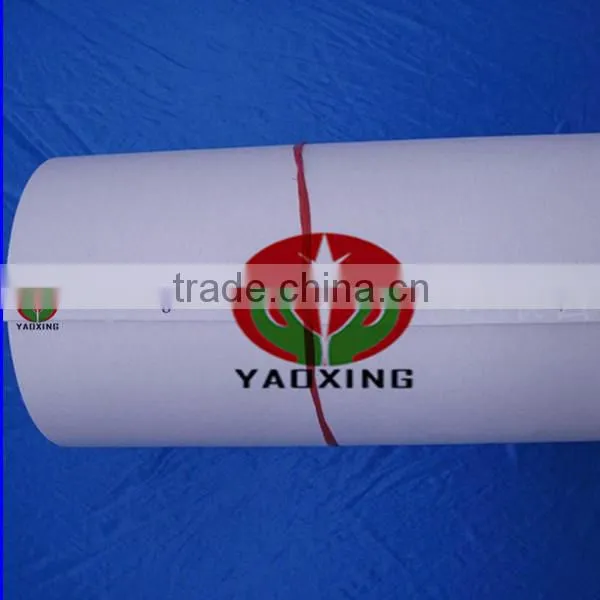

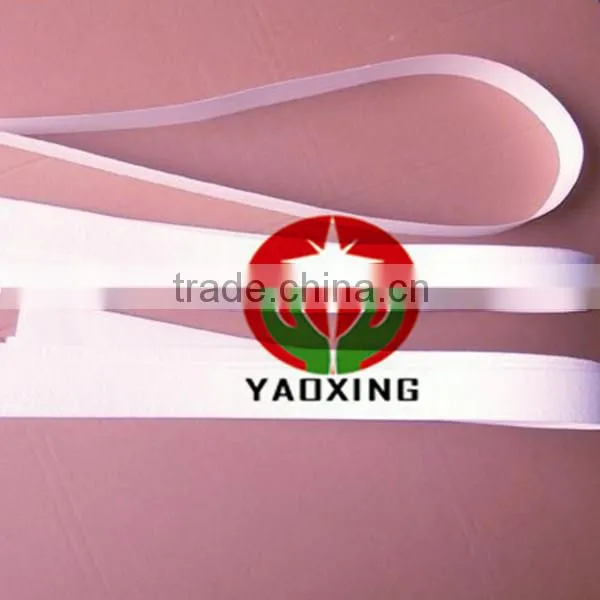

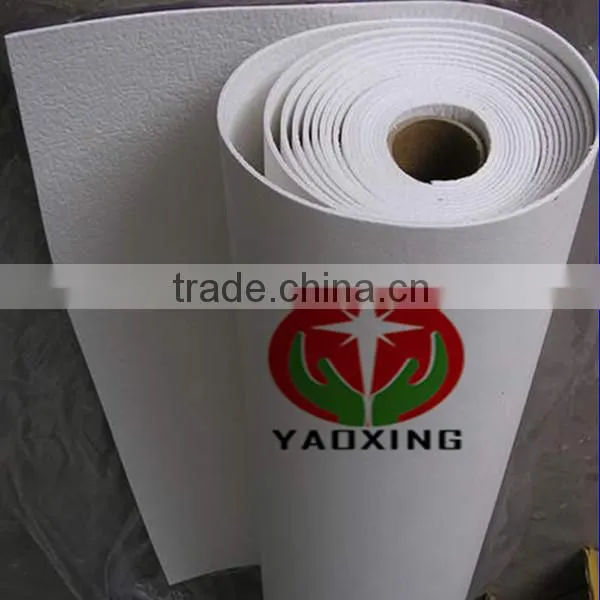

flame retardant ceramic fiber paper thermal ceramic fiber paper ceramic fiber
- 1000 Carton / Cartons per Month
- QINGDAO
- T/T
Product Details
Place of Origin: | Shandong, China | Thickness: | 0.5-7mm | ||
Width: | 610/1220mm | Length: | 12000mm | Grade: | ST (Standard) |
Chemical Composition: | Al2O3≥45%, | Working Temperature: | 1100℃ | Fiber Diameter: | 3μm |
Thermal Conductivity: | 0.075 | Shrinkage (1800℉, 3h): | ≤3% | Brand Name: | YAOXING |
Model Number: | YXTX-236 |
Product Description
ISO9001:2000 ceramic fiber paper
Description
1.YAOXING Ceramic Fiber Paper is processed from the high purity fiber,
which can be used in the field of high temperature insulation.
Because we have adopted the advanced processing work,
we cannot only make the fiber interweave shapely,
but also can control the thickness and the density rigidly.
2.A spot of bonding agent has been added into the fiber during processing,
which has been chosen and controlled scientifically, can be burnt during application.
Characteristic
1.Low Heat Storage
2.Low Thermal Conductivity
3.Excellent Thermal Electrical Insulation
4.Excellent Machine-processed Capability
5.Excellent Broken Resistance
6.Excellent Flexibility
7.Low Shot Content
Technical Index
ClassificationTemperature | 1260 | 1400 |
Code | YXTX-236 | YXTX-336 |
Shrinkage on Heating (%) | 1000°C×24h≤-3 | 1350°C×24h≤-3 |
Theoretical Thermal Conductivity (W/m·k) | 0.075-0.085(200°Caverage) 0.115-0.121(400°Caverage) 0.165-0.175(600°Caverage) | |
Theoretical Density (kg/m3) | 200±15 | 200±15 |
Specification (mm) | 100000/12000×610/1220×0.5/7, According to your requirements | |
Tensile Strength(MPa) | ≥0.04 | |
AL2O3(%) | 45-46 | 38~47 |
ZrO2(%) | - | 15~17 |
AL2O3+SiO2(%) | ≥97 | — |
AL2O3+SiO2+ZrO2(%) | — | ≥99 |
Fe2O3(%) | ≤1.0 | ≤0.2 |
K2O+Na2O(%) | ≤0.5 | ≤0.2 |
Package | Plastic Bag Inside, Carton Box Outside | |
Quality Control System | ISO9001-2000, ISO14001-1996 |

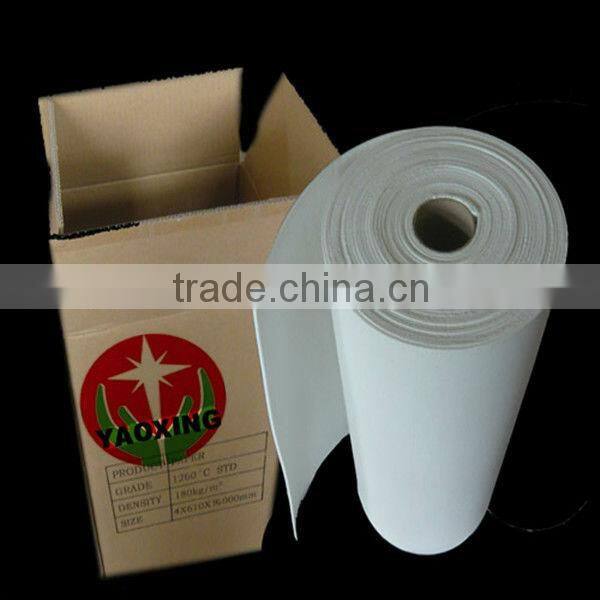

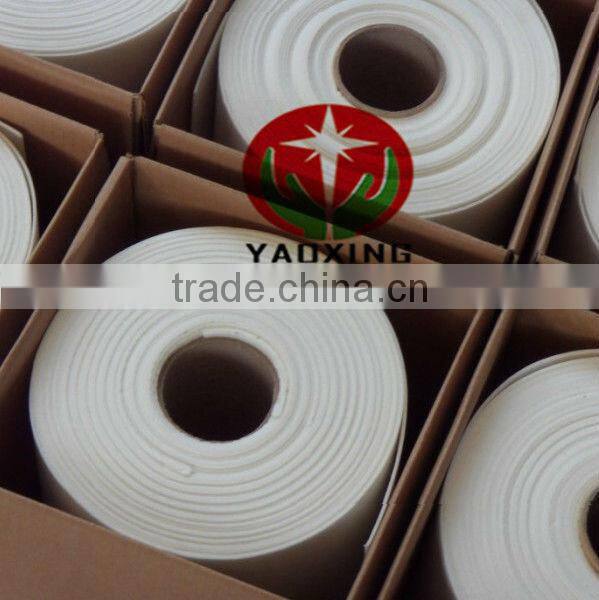

1.Plastic bags inside,Carton outside
2.Loading:441catons per 20 GP
We can suppoly you EOM Servise
