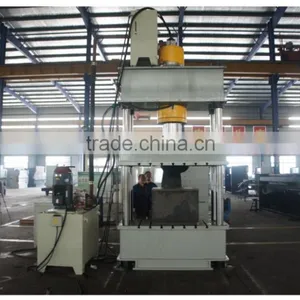

Y32-200T Hydraulic Press Machine With 4-Columns
US$ 22,238 - 25,238
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Hydraulic
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Q35Y-16 Hydraulic Iron Worker Machine With CEUS$ 13,555 - 13,885MOQ: 1 Set -
Q35Y-20 Hydraulic Combined Ironworkers With CEUS$ 12,917 - 13,017MOQ: 1 Set
-
Q35Y-25 Hydraulic Iron Worker Machine With CEUS$ 17,567 - 17,967MOQ: 1 Set
-
J23-100T Mechnical Accentric Press MachineUS$ 14,942 - 14,942MOQ: 1 Set
-
J23-160T Mechnical Accentric Press MachineUS$ 36,340 - 36,340MOQ: 1 Set
Condition
New
CNC or Not
Normal
Power Source
Hydraulic
Place of Origin
Liaoning, China
Brand Name
LFM
Model Number
Y32-200T
Voltage
220V/380V/415V/440V/480V
Power(W)
15kW
Certification
ISO9001:2008; CE
Warranty
12 Months
After-sales Service Provided
No overseas service provided
Y32-200T Hydraulic Press Machine
Application:
This hydraulic press is four-column structure, use to suppression and molding for the plasticity material. Such as stamping, bending, sheet drawing, flanging and so on. Also could be completed calibration, pressure equipment, pressing powder products pressing and various production processes.
NO. |
Item |
Unit |
Parameters |
|
1 |
Nominal force |
KN |
2000 |
|
2 |
Hydraulic working pressure |
Mpa |
25 |
|
3 |
Knockout force |
KN |
400 |
|
4 |
Daylight of slide |
mm |
1120 |
|
5 |
Slide stroke |
mm |
710 |
|
6 |
Knockout stroke |
mm |
250 |
|
7 |
Speed of slide |
Descent |
mm/s |
100 |
Pressing |
mm/s |
10 |
||
Return |
mm/s |
70 |
||
8 |
Table size |
L-R |
mm |
900 |
F-B |
mm |
900 |
||
9 |
Table height above floor |
mm |
550 |
|
10 |
Motor power |
KW |
15 |
|
