Y27Y-160T Hydraulic Press Machine With CE

US$ 36,843 - 36,843 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Hydraulic

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Hydraulic

Place of Origin Liaoning, China

Brand Name LFM

Model Number Y27Y-160T

Voltage 110V,220V,380V,410V 50/60Hz

Certification CE, ISO9001

Warranty 12 months after delivery

After-sales Service Provided Engineers available to service machinery overseas

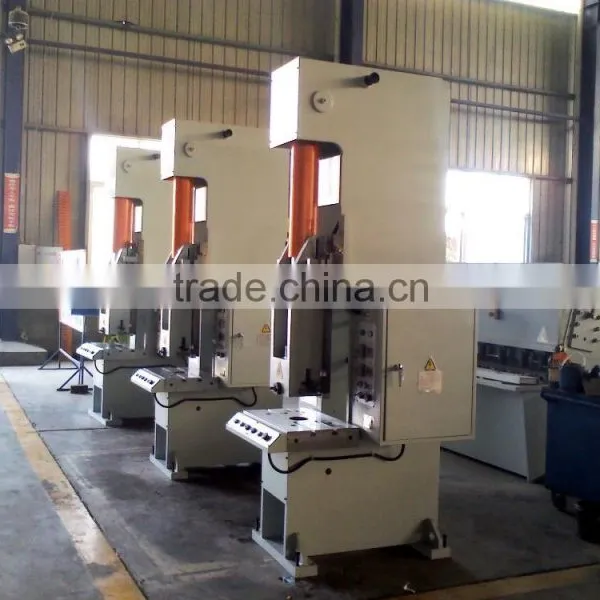

Y27Y-160T Hydraulic Fast Press Machine

Main Usage:

Mainly used for punching, stretching and pressing of plastic materials, sheet metal and so on;
Also be used for calibration, press-in, forming of grinding wheel, press forming of plastic products and powder products.

Characteristics of the machine:

The machine uses hydraulic driving mode and has the advantages of a hydraulic press and a mechanical press.
Pressing force of the machine can be changed at will.
Overload will not occur in the machine.
It can realize pressure keeping and time delay requirements in during pressing.
In order to realize slippers quick moving downwards without load and quick back stroke, the machine uses speeding-up oil cylinders.
The machine began to operate automatically at a slow speed as it contracts a workpiece, which decreases discharge capacity of an oil pump and motor power, and reduces noise.
Photoelectric protection devices may be installed in front of a bench, which forms a protection screen on upper front of the bench so as to protect operators.
It uses centralized buttons, which may realize adjustment, semi-automatic and automatic operations.
Therefore, the machine has the advantages of novel structure, reliable performance, a complete range of functions and high production efficiency of, and it is a substituting product of a mechanical press.

Specifications	Unit	Parameter
Nominal Pressure	KN	1600
Max. Work Pressure Liquid	mpa	25
Slipper Max. Stroke	mm	220
Slipper Work Times	1/min	10~30
Max. Closing Height	mm	520
Stroke Adjuster	mm	110
Throat Depth	mm	350
Height from Bench to Ground	mm	920
Speed to Quickly Move downwards	mm/s	230
Work Speed	mm/s	10
Back Stroke Speed	mm/s	170
Slipper Underside Size	mm	Left and Right: 600 Front and Back: 500 Die Hole: Φ60
Bench Size	mm	Left and Right:1000 Front and Back: 650 Aperture: Φ200
Machine Dimension	mm	Left and Right:1700 Front and Back: 2000 Height: 3500
Motor Power	KW	22/4
Oil Pump	ml/r	63
N.W/G.W	kg	11000/12000
Packing size	mm	3800×2000×2350
