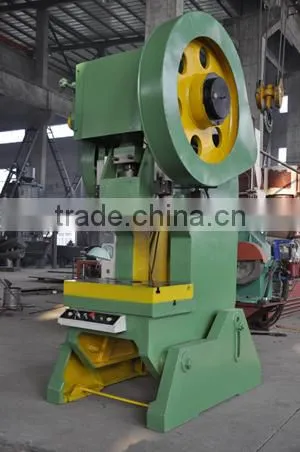

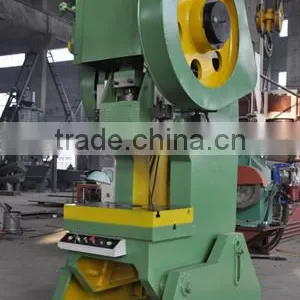

J23-63T Mechnical Accentric Press Machine

US$ 9,222 - 9,222 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Mechanical

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Mechanical

Place of Origin Liaoning, China

Brand Name LFM

Model Number J23-63T

Voltage 220V,380V,440V 50/60Hz

Dimension(L*W*H) 1700x1500x2500mm

Certification ISO9001, CE

Warranty 12 months after delivery

After-sales Service Provided Engineers available to service machinery overseas

J23-63T Accentric Press Machine Technical Data

Features:

Casting body,
inclinable body.
horizontally placed crankshaft is used;
rolling bearing is used instead of copper bush with lower noise and longer service life;
J23-80 and the upon models adopt balance cylinders;
Manual shut height adjustment with scale display;
High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

Main Usage:

Specifications	Unit	Parameter
Nominal pressure	kN	630
Slipper stroke	mm	100
Stroke times	s.m.p	56
Max. closing height	mm	305
Adjustment of closing height	mm	80
Throat depth	mm	240
Pole distance	mm	340
Thickness of bench	mm	90
Bench size (L and R)	mm	640
Bench size (F and B)	mm	445
Size of slipper (L and R)	mm	320
Size of slipper (F and B)	mm	255
Size of punch shank hole (Dia.)	mm	50
Size of punch shank hole (Depth)	mm	80
Dimension	mm	F and B: 1700 L and R: 1500 Height: 2500
Main motor power	KW	4
Weight	kg	3500
