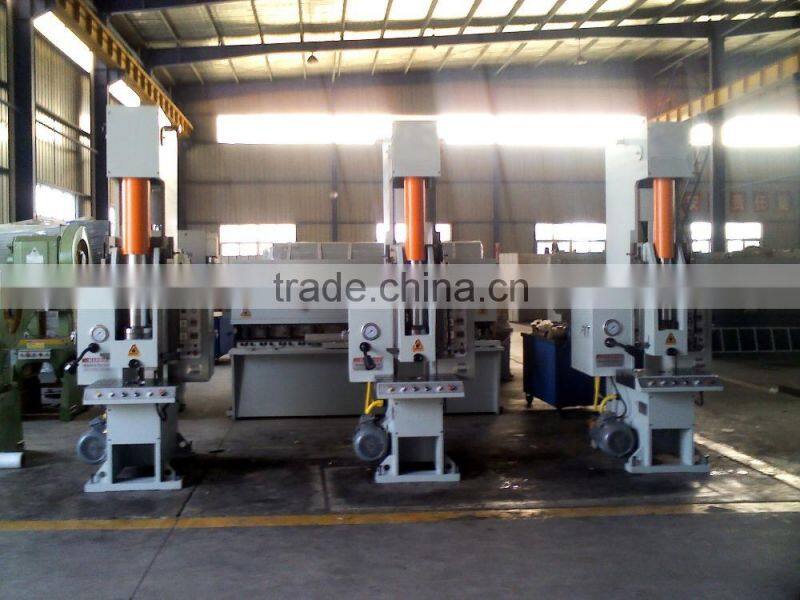

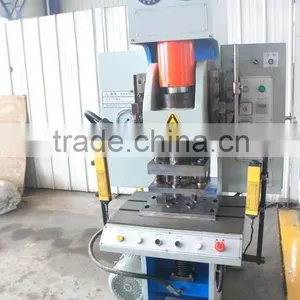

Y27Y-63T Hydraulic Press Machine With CE

US$ 14,084 - 14,084 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Hydraulic

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Hydraulic

Place of Origin Liaoning, China

Brand Name LFM

Model Number Y27Y-63T

Voltage 110V,220V,380V,410V 50/60Hz

Power(W) 5.5kW

Weight 3200kgs

Dimension(L*W*H) 1250x1450x2280mm

Certification CE, ISO9001

Warranty 12 months after delivery

After-sales Service Provided Engineers available to service machinery overseas

Y27Y-63T Hydraulic Fast Press Machine

Main Usage:

Mainly used for punching, stretching and pressing of plastic materials, sheet metal and so on;
Also be used for calibration, press-in, forming of grinding wheel, press forming of plastic products and powder products.

Characteristics of the machine:

The machine uses hydraulic driving mode and has the advantages of a hydraulic press and a mechanical press.
Pressing force of the machine can be changed at will.
Overload will not occur in the machine.
It can realize pressure keeping and time delay requirements in during pressing.
In order to realize slippers quick moving downwards without load and quick back stroke, the machine uses speeding-up oil cylinders.
The machine began to operate automatically at a slow speed as it contracts a workpiece, which decreases discharge capacity of an oil pump and motor power, and reduces noise.

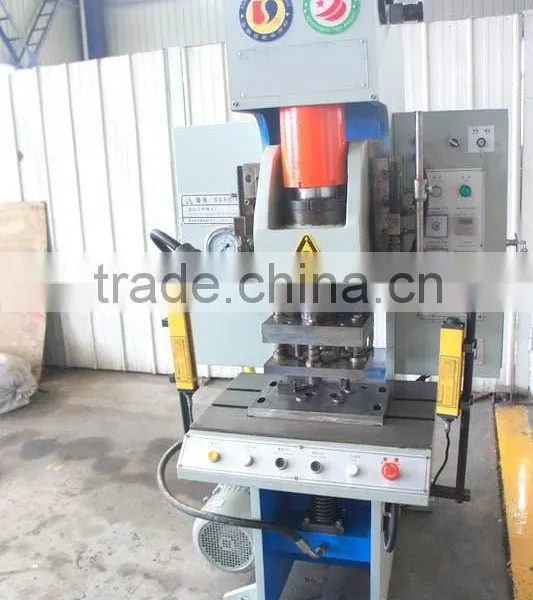

Photoelectric protection devices may be installed in front of a bench, which forms a protection screen on upper front of the bench so as to protect operators.
It uses centralized buttons, which may realize adjustment, semi-automatic and automatic operations.
Therefore, the machine has the advantages of novel structure, reliable performance, a complete range of functions and high production efficiency of, and it is a substituting product of a mechanical press.

Specifications	Unit	Parameter
Nominal Pressure	KN	630
Max. Work Pressure Liquid	mpa	20
Slipper Max. Stroke	mm	150
Slipper Work Times	1/min	10~40
Max. Closing Height	mm	445
Stroke Adjuster	mm	150
Throat Depth	mm	260
Height from Bench to Ground	mm	750
Speed to Quickly Move downwards	mm/s	220
Work Speed	mm/s	18
Back Stroke Speed	mm/s	195
Slipper Underside Size	mm	Left and Right: 440 Front and Back: 320 Die Hole: Φ50
Bench Size	mm	Left and Right:710 Front and Back: 500 Aperture: Φ150
Machine Dimension	mm	Left and Right:1250 Front and Back: 1450 Height: 2280
Motor Power	KW	5.5/4
Oil Pump	ml/r	25
Machine Weight	kg	3200
