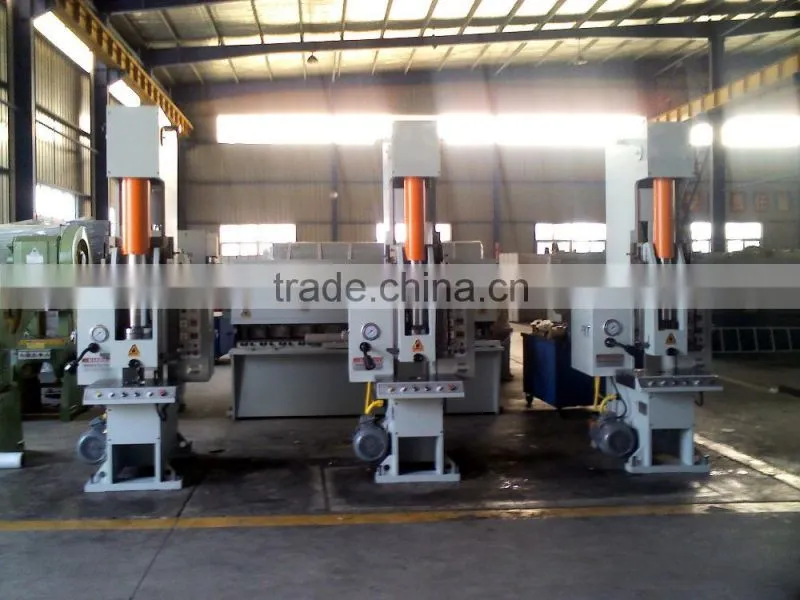

Y27Y-25T Hydraulic Fast Press Machine With CE

US$ 8,983 - 9,100 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Hydraulic

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Hydraulic

Place of Origin Liaoning, China

Brand Name LFM

Model Number Y27Y-25T

Voltage 110V,220V,380V,410V 50/60Hz

Power(W) 5.5kw

Weight 2000kg

Dimension(L*W*H) 1100x1155x1900mm

Certification CE, ISO9001

Warranty 12 months after delivery

After-sales Service Provided Engineers available to service machinery overseas

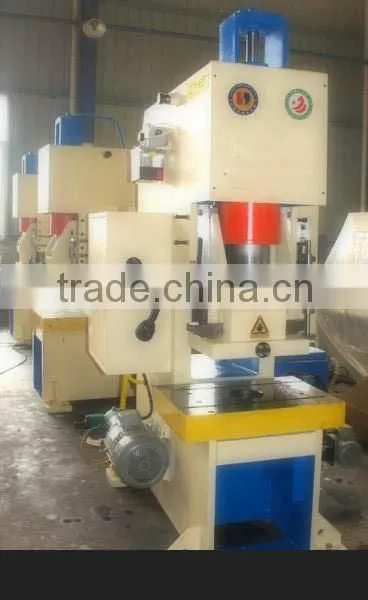

Y27Y-25T Hydraulic Fast Press Machine

Main Usage:

Mainly used for punching, stretching and pressing of plastic materials, sheet metal and so on;
Also be used for calibration, press-in, forming of grinding wheel, press forming of plastic products and powder products.

Characteristics of the machine:

The machine uses hydraulic driving mode and has the advantages of a hydraulic press and a mechanical press.
Pressing force of the machine can be changed at will.
Overload will not occur in the machine.
It can realize pressure keeping and time delay requirements in during pressing.
In order to realize slippers quick moving downwards without load and quick back stroke, the machine uses speeding-up oil cylinders.
The machine began to operate automatically at a slow speed as it contracts a workpiece, which decreases discharge capacity of an oil pump and motor power, and reduces noise.
Photoelectric protection devices may be installed in front of a bench, which forms a protection screen on upper front of the bench so as to protect operators.
It uses centralized buttons, which may realize adjustment, semi-automatic and automatic operations.
Therefore, the machine has the advantages of novel structure, reliable performance, a complete range of functions and high production efficiency of, and it is a substituting product of a mechanical press.

Specifications	Unit	Parameter
Nominal Pressure	KN	250
Max. Work Pressure Liquid	mpa	250
Slipper Max. Stroke	mm	22
Slipper Work Times	1/min	130
Max. Closing Height	mm	10~50
Stroke Adjuster	mm	315
Throat Depth	mm	130
Height from Bench to Ground	mm	210
Speed to Quickly Move downwards	mm/s	740
Work Speed	mm/s	225
Back Stroke Speed	mm/s	18
Slipper Underside Size	mm	Left and Right: 440 Front and Back: 220 Die Hole: Φ40
Bench Size	mm	Left and Right: 600 Front and Back: 400 Aperture: Φ100
Machine Dimension	mm	Left and Right:1100 Front and Back: 1155 Height: 1900
Motor Power	KW	5.5/4
Oil Pump	ml/r	10
Machine Weight	kg	2000
