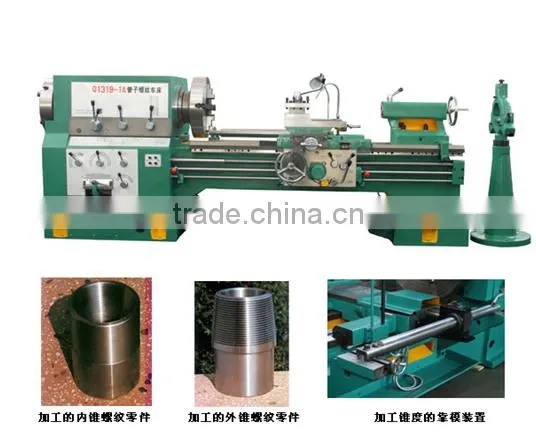

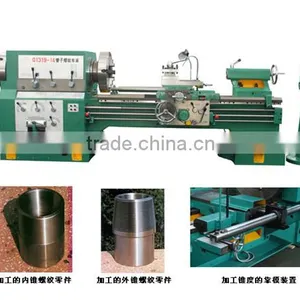

Such pipe threading lathe machines have following features:
Hollow spindle bore design for processing extra-long work-piece;
Double chuck equipment realizing better clamping of work-piece;
Taper guide bar installed ensures taper thread processing ability;
Such pipe threading lathe is mainly used for processing all kinds of pipe threads:
including inner, outer, taper, metric and inch thread etc.,
and also undertake various turning works such as inner and outer cylindrical surface, conical surface and end surfaces.
Specifications |
Unit |
Parameter |
Pipe/tube thread diameter range to be turned |
mm |
50~193 |
Max. swing over bed |
mm |
Φ630 |
Max. swing diameter over carriage |
mm |
350 |
Max. cutting diameter |
mm |
Φ190 |
Max. cutting length |
mm |
1500 |
Max. taper to be turned |
|
1:4 |
Max. travel of taper shaft |
mm |
500 |
Spindle bore diameter |
mm |
Φ200 |
Spindle speed number |
|
12 steps |
Range of spindle speed |
r/min |
24~300 |
Spindle speed number(reverse) |
|
6 steps |
Range of spindle speed(reverse) |
r/min |
38~384 |
Feed system | ||
Kind of longitudinal feed |
|
26 kinds |
Range of longitudinal feed |
mm |
0.07~1.33 |
Kind of transversal feed |
|
22 kinds |
Range of transversal feed |
|
0.02~0.45 |
Inch thread range and kinds |
tpi |
28~2/40kinds |
Metric thread range and kinds |
mm |
1~14/24kinds |
Pitch of leadscrew |
|
1/2 |
Fast speed of saddle |
mm/min |
4000 |
Max. longitudinal travel of saddle |
|
1310 |
Tool post | ||
Max. transversal travel of down-tool post |
mm |
390 |
Max. travel of upper tool post |
mm |
200 |
Max. swing angle of mid tool post |
° |
±60 |
Dial feed amount of down-tool post |
|
0.05mm/scale |
Dial feed amount of upper tool post |
|
0.05mm/scale |
Tailstock | ||
Diameter of center sleeve |
mm |
100 |
Taper of center sleeve |
|
MT 5 |
Travel of center sleeve |
mm |
205 |
Transversal travel of center sleeve |
mm |
±15 |
Main motor power |
kW |
7.5 970 r/min |
Fast motor |
kW |
0.3 1450 r/min |
Cooling pump |
kW |
0.125 2800 r/min |
Tool stations |
|
4 |
Max. turning length by copy of cone |
mm |
500 |
Net weight of machine |
kg |
3800 |
Overall dimensions of machine (L x W x H) |
mm |
3657×1449×1393 |
Item |
Size |
Brand |
4-jaw chuck KN520 |
Φ520 |
2 sets |
Chuck plate |
|
2 |
Center JB2887-81 |
|
1 |
Chuck wrench KN520 |
|
2 |
Foundation bolts |
M22X400 |
6 |
Nuts |
M22 |
6 |
Washer |
Φ22 |
6 |
General tools |
|
1 set |
V-belt |
|
5 |
Rear support |
Φ50~Φ190 |
1 set |
