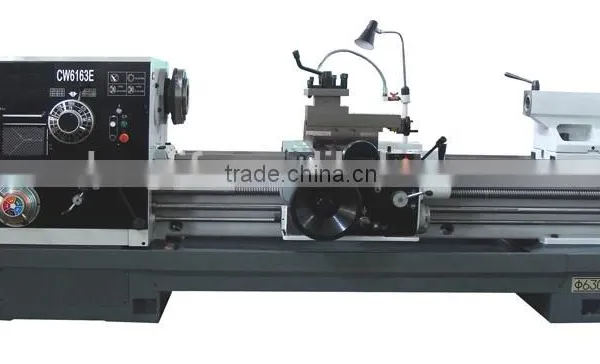

CW6163Dx12m Manual Pipe Threading Lathe Machine for Sale

US$ 73,500 - 74,433 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 630mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number pipe threading lathe machine

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 11kW

Dimension(L*W*H) 14300X1100X1600mm

Weight 9500kgs

Certification ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CW6163Dx12m manual pipe threading lathe machine

Main Technical Data

Specifications	Unit	Parameter
Max. Swing over bed	mm	Ø670
Max. Swing over slide	mm	Ø390
Distance between two centers	mm	12000
Head stock
Spindle hole through	mm	Ø105
Taper of spindle bore		120
Spindle nose type		C-type flange connected
Range of spindle speed	rpm	8~1100/18 steps
Max. output torque at spindle	N.m	3040(11kW motor)
Morse taper of center sleeve		MT6
Tailstock
Sleeve diameter	mm	Ø100
Morse taper of sleeve		MT6
Max. travel of tailstock sleeve	mm	300
Speed reduction rate of sleeve		1:1
Feed and threads
Longitudinal feed	mm	0.1~24/64 kinds
Transverse feed	mm	0.05~12/64kinds
Pitch of leadscrew		12
Metric threads	mm	1~240/50 kinds
Inch threads	T.P.I	19~1/16 43 kinds
Modular threads		0.5~120/53kinds
Diametrical pitch threads	D.P	30~1/8 42 kinds
Max. travel of top slide	mm	240
Max. travel of cross slide	mm	500
Longitudinal rapid travel speed	m/min	4
Transverse rapid travel speed	m/min	2
Main motor power	kW	11
Rapid motor	kW	1.1
Cooling motor	kW	0.125
N. W. / g. W. of machine	tons	9.5/12
Size	mm	14300X1100X1600

Free Std Accessories

Name	Size	Note
Manual 3 jaws chuck	diameter of 320 mm	1 set
Steady rest	25~200	1 set
Follow rest	30~100	1 set
Dead center	MT6	1 set
Special tools,		1 set
Oil gun		1 piece
Spanners		1 set
Full set of Documents in English		1 set
