Ceramic Fiber Modules

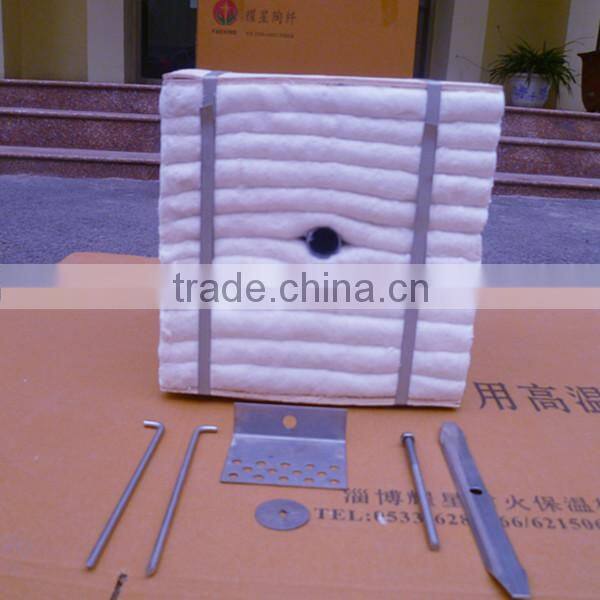

YAO XING modules are made from ceramic fiber blanket stacked with cut edges exposed,
and anchor systems to enable quick, easy and efficient installation in most furnace linings.
These prefabricated modules are designed to meet the thermal insulation requirements of high temperature furnaces.
Classification Temperature 1050°C ,1260°C, 1400°C,
Density: 190kg/m3
Advantages
1. Excellent thermal and physical stability
2. Low thermal conductivity
3. Low heat storage
4. Excellent corrosion resistance
5. Faster temperature cycling
6. Fast and easy installation
Applications
1.Oil heaters
2.Reformer
3.Forge furnaces
4.Process heaters
5.Preheating furnaces
6.Crude oil heaters
7.Fume incinerators
8.Tunnel kilns
9.Cracking Furnaces
10.Shuttle kilns
11.Annealing furnaces
Technical Index:
Classification Temperature |
1050 |
1260 |
1400 |
||
Code |
YXTX-189 |
YXTX-289 |
YXTX-389 |
TXTX-489 |
TXTX-589 |
|
Shrinkage on Heating (%) |
950℃×24h ≤-3 |
1000℃×24h ≤-3 |
1100℃×24h ≤-3 |
1200℃×24h ≤-3 |
1350℃×24h ≤-3 |
|
Theoretical Density (kg/m3) |
200±10 |
||||
|
Shot Content (φ≥0.25mm)(%) |
≤15 |
||||
|
Theoretical Thermal Conductivity (W/m·k) |
0.050-0.060(200℃) |
||||
0.095-0.120(400℃) | |||||
0.160-0.195(600℃) | |||||
Al2O3 (%) |
≥44 |
≥45 |
≥45 |
52-55 |
38-40 |
Al2O3+SiO2 (%) |
≥96 |
≥97 |
≥99 |
≥99 |
- |
ZrO2 (%) |
- |
- |
- |
- |
15-17 |
Al2O3+SiO2+ ZrO2 (%) |
- |
- |
- |
- |
≥99 |
Fe2O3 (%) |
≤1.2 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
K2O+Na2O (%) |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
Specification (mm) |
300×300×200,According to your requirements |
||||
Package |
Woven Bag/Carton |
||||
|
|||||
