Help CenterCeramic Fiber Module Ceramic Wool Block Refractory Lightweight Ceramic Module
Related Products
-
Ceramic Fiber Module Thermal Insulation Material for Oven Preheating Furnace Ceramic Fiber ModuleNegotiableMOQ: 5 Metric Tons -
Lightweight Ceramic Fiber Module 190K Ceramic Module Furnace Insulation Ceramic Fiber BlockNegotiableMOQ: 100 Pieces
-
Thermal Insulation Material for Ovenhigh Temperature Furnace Insulation Material Heat Insulation Module for BoilerNegotiableMOQ: 100 Metric Tons
-
Tunnel Kilns Ceramifc Fiber Module Ceramic Fiber Module Refractory Ceramic Fiber ModuleNegotiableMOQ: 100 Pieces
-
Ceramic Fiber Moudle Z-block Refractory Thermal Insulation Material for OvenNegotiableMOQ: 1 Metric Ton
Characteristic
Ceramic fiber folded module not only used in furnace,
but also brought following benefit with ended custom
1.Folded blanket will impact tight with each other in differently way
without gaps after release from packing.
2.Elastically fiber blanket can withstand mechanical force.
3.The elasticity of fiber blanket could make up
distortion of furnace casing and with gaps between modules.
4.Because of the light weight, the decalescence capability
is low as the insulation materials.
5.Low thermal conductivity can save much energy.
6.Excellent thermal shock resistance capability.
7.Can be betaken immediately as soon as being installed,
for there is no need to be dried and maintained.

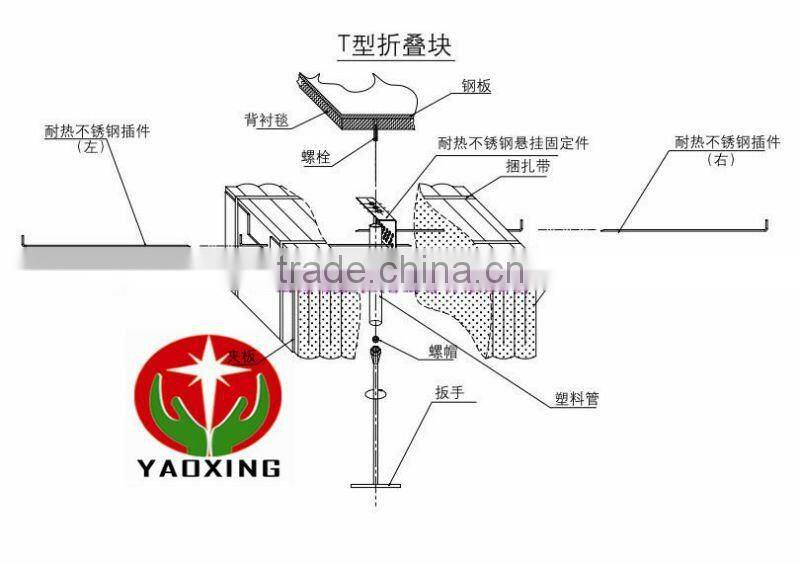

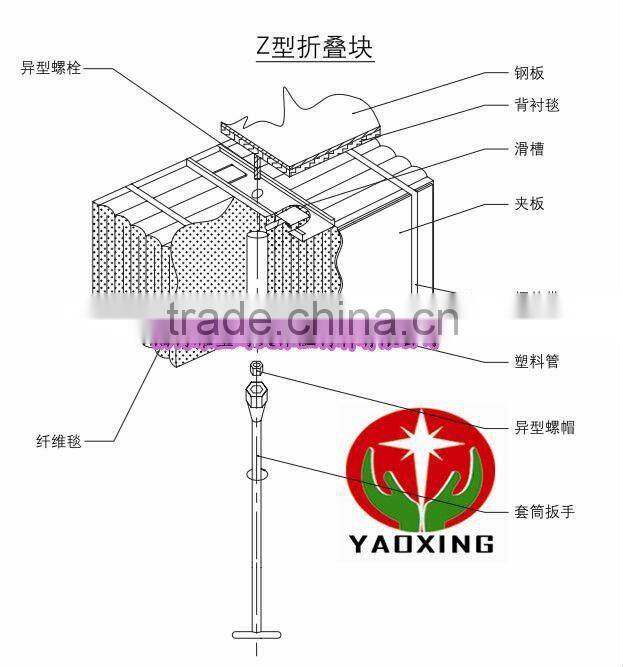

8.The Anchor system should be far away from
the hot surface of the modules and kept in the lower temp.
Technical Index
|
Classification Temperature |
1050 |
1260 |
1400 |
||
Code |
YXTX-189 |
YXTX-289 |
YXTX-389 |
TXTX-489 |
TXTX-589 |
|
Shrinkage on heating (%) |
950°C×24h ≤-3 |
1000°C×24h ≤-3 |
1100°C×24h ≤-3 |
1200°C×24h ≤-3 |
1350°C×24h ≤-3 |
|
Theoretical density (kg/m3) |
200±10 |
||||
|
Shot content (φ≥0.25mm)(%) |
≤15 |
||||
|
Theoretical Thermal conductivity (W/m·k) |
0.050-0.060(200°C) |
||||
0.095-0.120(400°C) | |||||
0.160-0.195(600°C) | |||||
Al2O3 (%) |
≥44 |
≥45 |
≥45 |
52-55 |
38-40 |
Al2O3+SiO2 (%) |
≥96 |
≥97 |
≥99 |
≥99 |
- |
ZrO2 (%) |
- |
- |
- |
- |
15-17 |
Al2O3+SiO2+ ZrO2 (%) |
- |
- |
- |
- |
≥99 |
Fe2O3 (%) |
≤1.2 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
K2O+Na2O (%) |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
Specification (mm) |
300×300×200,According to your requirements |
||||
Package |
Woven Bag/Carton |
||||
Quality Control System |
ISO9001-2000 ,ISO14001-1996 |
||||
