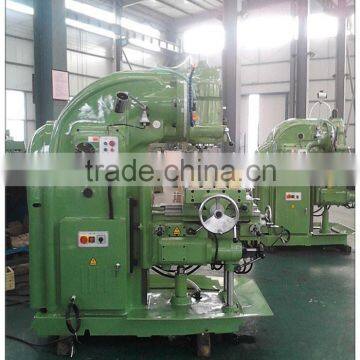

X5032 CE Economic Knee Type Vertical Milling Machine

US$ 5,074 - 33,971 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number X5032 vertical milling machine

Type Universal

CNC or Not Normal

Voltage 220V/380V/415V/440V/480V

Power(W) 7.5kW

Dimension(L*W*H) 2294x1770x1904mm

Weight 2900~3100kgs

Certification CE; ISO9001:2008; GB/T19001:2008

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

X5032 vertical milling machine

Product Introduction

vertical milling machine has following features:

1. one more powerful metal cutting machine,

2. high rigidity,

3. wide range of spindle feed also can bear a heavy burden.

4. the spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on,

5. optional accessories as dividing head, rotary table, machine vice,milling chuck, Digital readout, can make such machine more functional.

Main Usage:

6. Suitable for machining all parts plane, inclined plane, groove, hole,keyway, etc,

7. for machinery manufacturing, mould, apparatus, instrument, car and motor car;

Main Technical Data

SPECIFICATIONS	UNIT	X5032	X5032B	X5032H	X5032BH
Table size	mm	320×1325	320×1600	320×1325	320×1600
T-slots(No./WIDTH/PITCH)	mm	3/18/70	3/18/70	3/18/70	3/18/70
Longitudinal travel(manual/auto)	mm	700/680	900/880	700/680	900/880
Cross travel(manual/auto)	mm	255/240	255/240	255/240	255/240
Vertical travel(manual/auto)	mm	370/350	370/350	460/440	460/440
Rapid feed speed	mm/min	2300/1540/770	2300/1540/770	2300/1540/770	2300/1540/770
Spindle pore	mm	29	29	29	29
Spindle taper		7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50
Spindle speed range	r/min	30~1500	30~1500	30~1500	30~1500
Spindle speed step	steps	18	18	18	18
Spindle travel	mm	70	70	70	70
Max.swovel angle of vertical milling head		±45°	±45°	±45°	±45°
Distance between spindle nose and table surface	mm	30~400	30~400	30~490	30~490
Distance between spindle axis and colomn guideway	mm	350	350	350	350
Feed motor power	kW	1.5	1.5	1.5	1.5
Main motor Power	kW	7.5	7.5	7.5	7.5
Overall dimensions(LxWxH)	mm	2294×1770× 1904	2294×2050× 1904	2294×1770× 2084	2294×2050× 2084
Net weight	kg	2900/3200	3000/3300	3000/3300	3100/3400
