Home > Products > Horizontal Universal Lathes > CDS6236 Small Conventional Horizontal Lathe

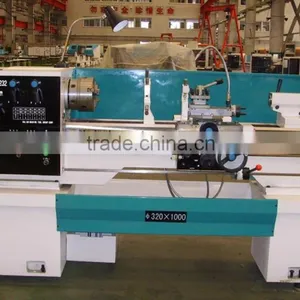

CDS6236 Small Conventional Horizontal Lathe
- 1000 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 360mm | Place of Origin: | Liaoning, China |
Brand Name: | DALIAN | Model Number: | CDS6236x750~1000 | Voltage: | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz |
Certification: | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CDS6236 CE Lathe Technical Specification
Main Features:
- CE certified-CE Certificate;
- Standard spindle head: C6,
- Optional spindle head: D6, spindle bore:52 mm
- Guide rail width:280mm
- High-frequency quenching Guide rail hardness: HRC50, Depth 1.5mm
- Maximum load capacity between two centers:200kg
- Standard: the lathe is equipped with left-handed wheel slip board boxes,
- Right-handed wheel can also be provided, but shall be informed specially when placing order;
- Headstock in the clutch, three boxes all use self inside lubrication;
- 3-jaw chuck and 4-jaw chuck: Direct coupled type;
- Standard: the lathe is equipped with mechanical clutch and mechanical braking
- Main motor is double - speed motor, unable to offer dual voltage;
- Available voltage frequency: 50HZ: 220V, 380V, 400V, 415V, 420V, 440V, 600V
- DRO: yes
Specifications | Unit | Parameter |
Max swing over bed | mm | 360 |
Max swing over carriage | mm | 220 |
Center distance | mm | 500/750/1000 |
Max swing in gap | mm | 520 |
Width of bed | mm | 280 |
Spindle nose |
| D6 |
Spindle bore | mm | 52 |
Taper of spindle bore |
| M6 |
Spindle speeds | rpm | 59~2100 (1 2speeds) |
Range of whit worth thread | TPI | 56~2 (52) |
Range of metric thread | mm | 0.4~14 (40) |
Range of module thread |
| 0.2~3.5 (46) |
Range of Di metrical pitch thread | DP | 112~6 (33) |
Taper of tail quill |
| M4 |
Travel of tail quill | mm | 125 |
Diameter of tail quill | mm | 50 |
Power of main motor | kW | 3.3/2.2 |
Power of coolant motor | W | 60 |
Net weight | kg | 1130 |
Gross weight | kg | 1580 |
Overall dimensions(L×W×H) | mm | 2110×935 ×1200 |
Packing dimensions(L×W×H) | mm | 2330 ×1040 ×1500 2200 ×1000 ×1300 |
