Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CW6280Ex5000 Horizontal Lathe With Large Spindle Bore

CW6280Ex5000 Horizontal Lathe With Large Spindle Bore

Name: CW6280Ex5000 Horizontal Lathe With Large Spindle Bore
Brand: DALIAN
SKU: 102718541
Availability: InStock

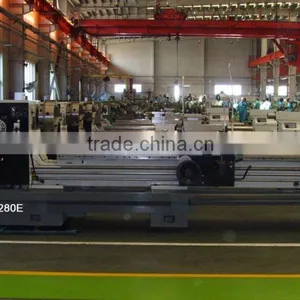

CW6280Ex5000 Horizontal Lathe With Large Spindle Bore thumbnail-1

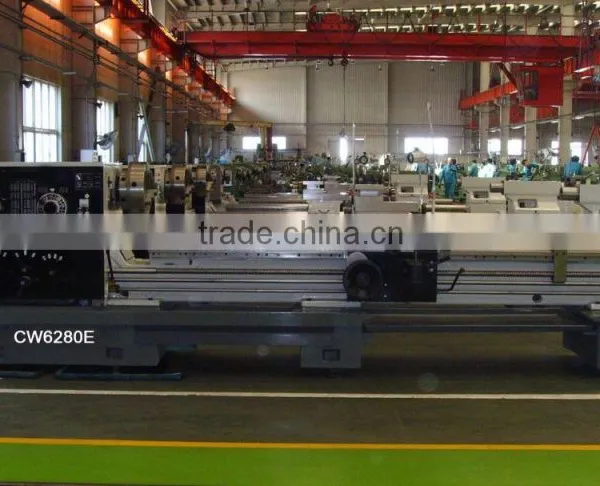

CW6280Ex5000 Horizontal Lathe With Large Spindle Bore photo-1

US$ 27,400 - 27,742 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 800mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CW6280Ex5000

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 7.5/11kW

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CW6280x5000 Large Spindle Universal Lathe

Machine Features:

l Standard: spindle head: C11/D11, spindle bore diameter: Φ100/105mm.

l Optional: spindle head: D11, spindle bore diameter Φ130mm.

l Guide rail width: 550mm.

l Guide way hardness: HRC50, Depth1.5mm.

l Max load weight between 2-centers: 1000kg; with steady rest: up to 2000kg.

l Standard: Left-hand wheel is equipped;

Right-handed wheel shall be informed specially when placing order.

l Equipped with hydraulic clutch and electrical cabinet.

l Slide board boxes with vertical and horizontal rapid shift handle.

l Special indication is required if tailstock sleeve is with a scale.

Specifications	Unit	Parameter
Max. swing over bed	mm	800
Max. swing over carriage	mm	520
Center distance	mm	5000
Width of gap	mm	320
Swing over gap	mm	1000
Width of guide way	mm	550
Spindle bore diameter	mm	105/130(Opt)
spindle nose		C11/D11 (Opt)
Spindle speed	rpm	(18 speeds) 7.5~1000
Longitudinal feed	mm/r	(64) 0.1~24.3
Cross feed	mm/r	(64) 0.05~12.15
Rapid traverse speed	m/min	3.8
Metric thread	mm	(39)1~240
Inch thread	TPI	(26) 14~1
Module thread	mm	(53) 0.5~120
Diametrical pitch thread	D.P	(24) 28~1
Max. travel of cross slide	mm	493
Travel of top slide	mm	200
Main motor power	kW	11
Rapid traverse motor power	kW	1.1
Coolant pump motor power	kW	0.09
Wooden box Pallet packing	mm	7600x1150x1990 7470x1100x1800
Gross/Net weight	kg	8500/6450

Free Standard Accessories:

Name	Size(mm)
3-jaw chuck	Φ400(For CW6280E)
4-jaw chuck	Φ630(For CW6280E)
Steady rest	Φ40~Φ250(For CW6280E)
Follow rest	Φ20~Φ100(For CW6280E)
Dead center	2 sets
Reducing sleeve	1 set
Wrench Tool	1 set
Oil gun	1 set
Instruction Manual	1 set
Certificate of Conformity	1 set
Packing List	1 set
