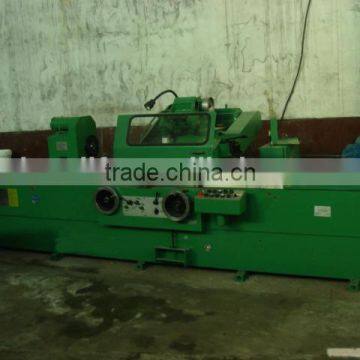

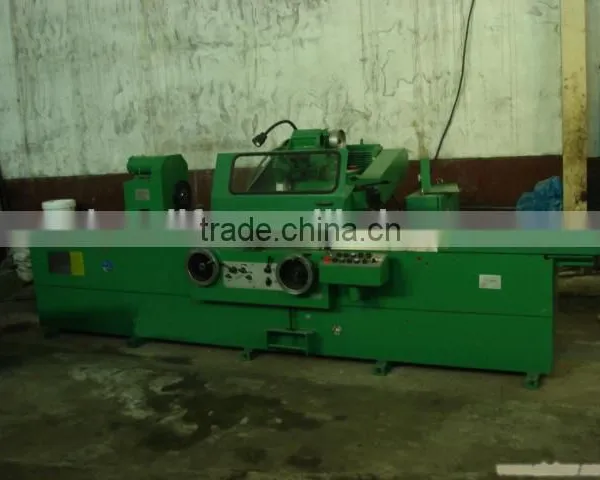

M1332x2000 Semi-auto Cylindrical Grinding Machine

US$ 48,000 - 48,362 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Cylindrical Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 320mm

Max. Grinding Length 2000mm

Place of Origin Shanghai, China

Brand Name LFM

Model Number M1332x2000

Voltage 220V 380V 400V 415V 440V 480V

Power(W) 15kW

Dimension(L*W*H) 4180x1810x1665mm

Weight 5600kgs

Certification CE; ISO9001:2008; GB/T 19001:2008

After-sales Service Provided Engineers available to service machinery overseas

M1332x2000 Semi-auto Cylindrical Grinding Machine

Main Usage:

Main Features:

Wheel bearings hybrid bearing, high accuracy and good rigidity
The first frame spindle driven by a DC motor, variable speed within the speed range.
Tailstock by a dense ball in the form of its rigidity.
With a grinding machine indicator to facilitate high-precision grinding of the workpiece.

Working Accuracy:

Specifications		Unit	Parameter
Outside diameter grinding	Use Center Frame	mm	Min/Max: 8/60
Outside diameter grinding	No Center Frame	mm	Min/Max: 8/320
Inside diameter grinding	Use Center Frame	mm	Min/Max: 30/125
Inside diameter grinding	No Center Frame	mm	Min/Max:16/125
Max. Workpiece Weight		kg	150
Max. Grinding Length		mm	2000
Max. Grinding Diameter		mm	Φ320
Distance between centers		mm	2000
Height of center		mm	180
Motor total power		KW	14.55
Wheel Size ( diameter x width x bore )		mm	Min/Max Φ280 ×50 ×Φ203 Φ400×50×Φ203
Wheel peripheral velocity		m/s	35/17.5
Wheel Spindle Speed		r/min	1680/840
Max. Transferred Quantity (Fast-moving Included)		mm	241
Rapid Advance and Retreat for Grinding Carriage		mm	25
Wheel Size (dia ×width×bore )		mm	Min: Φ15×20×Φ5 Max: Φ50×25×Φ13
Wheel Spindle Speed( HJX33-03A)		r/min	10000/15000
Machine Size (L×W×H)		mm	4180×1810×1665
Packing Size (L×W×H)		mm	4880×2250×2000
Gross/Net		kg	5600/6500
