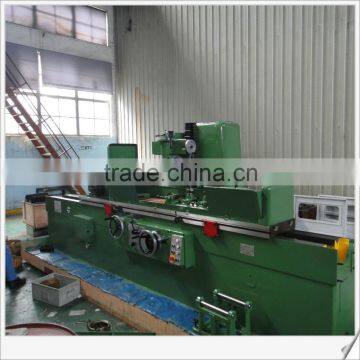

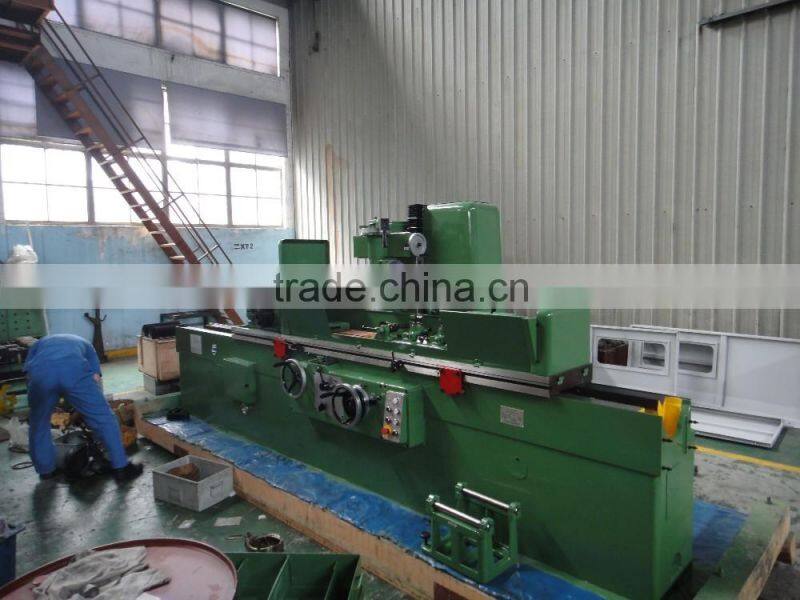

M8612x1500 spline shaft grinding machine
Special-purpose machine for spline shaft grinding,
including: rectangular spline shafts, the spline flanks of spline broaches, or the bottom- cylindrical surface of the spline,
suitable for automobile, tractor, tractor, machinery, and tool manufacturing industry, as well as the common repair workshops;
Such spline shaft grinding machine has following features:
l The wheel has three speeds, which can be realized by changing the belt-pulley.
l Vertical feed is carried out by manual operation, besides, it is also provided with the given amount micro-feed lever.
l Wheel rotation, hydraulic drive and coolant supply are respectively realized by their individual motors.
Specifications |
Unit |
Parameter |
Grinding diameter |
mm |
Φ30~125 |
Max.loadedlength |
mm |
1500 |
Max.grindinglength |
mm |
1300 |
Center height |
mm |
180 |
Wheelhead spindle rotating speed |
rpm |
3000/4500/6000 |
Worktable travel speed |
m/min |
0.5~10 |
Distance from wheel center to worktable surface |
mm |
Min. 230 Max. 350 |
Max. travel of grinding head |
mm |
Vertical: 120 Horizontal: 20 |
Per division of feed handwheel |
mm |
0.005 |
Per turn of feed handwheel |
mm |
1 |
No. of notches to be indexed |
|
4/6/8/10/12/16/20/24 |
Center tapered-bore |
|
MT #4 |
Indexing-plate dia |
mm |
Φ200 |
Wheel dimensions (O.D.×W×I.D) |
mm |
Max. Φ200x25xΦ32 Min. Φ100x6xΦ20 |
Total motor power |
kW |
4.5 |
N.W/G.W |
kg |
5100/6600 |
Overall dimensions |
mm |
4870x1420x1830 |
Packing Size |
mm |
5660x1650x2150 |
Accumulated indexing error: 0.015
Parallelism of the bottom dia, elementary lines: 0.010
Parallelism of spline flank relative to the axis: 0.010
Item |
Motel |
parameters |
Q’ty1 |
Sediment coolant tank |
HJX71-25 |
25L/min |
1set |
Correcting bracket |
M8612A-23 |
M8612A-1500 |
1set |
Steady rest |
M8612A-87 |
|
2sets |
Pulley |
M8612A-30 |
Φ135 |
1pcs |
24 notch indexing plate |
M8612A-30 |
24 notches |
1pcs |
center |
M8612A-353 |
MT#4/ MT#2 |
1pcs /each |
Nut |
M8612A-355 |
M36x1.5 |
1pcs |
Measuring bridge board |
M8612A-319 |
|
1pcs |
Supporting rod |
M8612A-347 |
|
2sets |
Smaller chuck |
M8612A-314 |
|
1set |
Screw rod |
M8612A-315 |
|
1pcs |
