LFM8280Bx3000 CE Crankshaft Grinding Machine

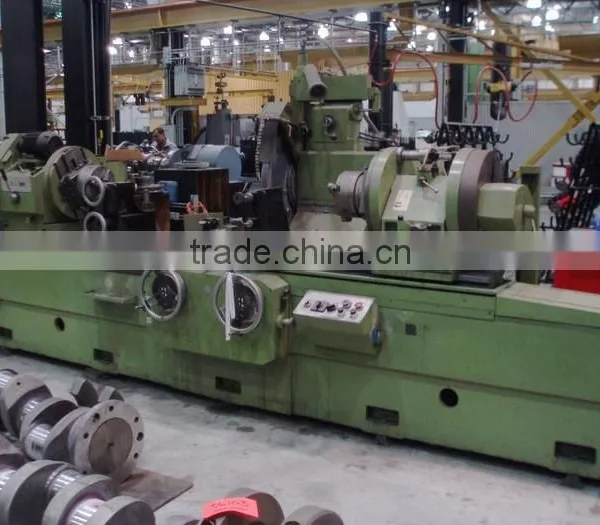

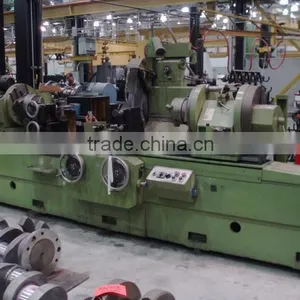

LFM8280Bx3000 CE Crankshaft Grinding Machine photo-1
US$ 68,317 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Crankshaft Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Crankshaft Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 800mm
Max. Grinding Length 3000mm
Place of Origin Shanghai, China
Brand Name LFM
Model Number LFM8260Bx3000 crankshaft grinding machine
Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz
Power(W) 15kW
Dimension(L*W*H) 5410*2130*2210mm
Weight 7500kgs
Certification CE Certificate; ISO9001:2008; GB/T19001:2008
After-sales Service Provided Engineers available to service machinery overseas

LFM8280Bx3000 crankshaft  grinding machine



Main Usage

such crankshaft grinding machine has following features:

a. Such machine is suitable for grinding the crankshaft of marine diesel engines and vehicle diesels.

b. It is applied to  batch-production, single-piece production or repair factories.

c. It can also be used for cylindrical grinding.

Working Accuracy

1. Roundness 0.015mm

2.Cylindricity 0.015mm

3. Roughness: cylindrical / end- face  Ra 0.4 / Ra0.8

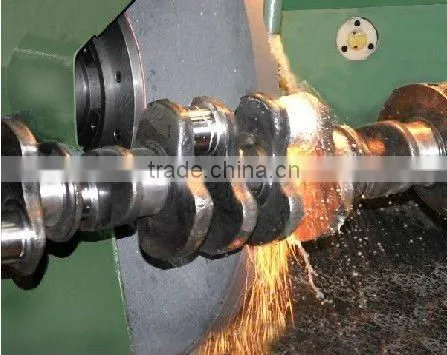

Detailed Photos
LFM8280Bx3000 CE crankshaft grinding machine
Main Technical Data

Specifications

Unit

Parameter

Max. swing Dia.

mm

800

Dia. to be ground

mm

Max. 300

Min. 100

Radius of crankpin

mm

Max. 160

Min. 0

Radius of crankpin

mm

150

Center height

mm

420

Length of work

mm

1200~ 3000

Max. weight of work

kg

400

Workhead center tapered bore



Morse #6

Tailstock center tapered bore



Morse #6

Guide-way dimensions: width x center distance

mm

For machine bed :

120 x 110 x 360

Guide-way dimensions: width x center distance

mm

For wheelhead :

150 x 140 x 600

Dimensions of Wooden Case;

cm



Gross weight

kg


General Performance

Specifications

Unit

Note

Auto. Plunge feed



with

Auto. Intermittent: feed



without

Auto measuring



without

Suspension type measuring



with

Auto feed and compensation

mm

0.01 ~ 0.04

Min. Manual feed

mm

0.005

Workhead sleeve travel

mm

450

Tailstock sleeve travel

mm

450

Free Std Accessories

Specifications

Unit

Note

Work Dia. clamping between right and left chuck

mm

100~ 300

Work Dia. supported by steady rest

mm

100 ~300

Wheel peripheral and end-face dresser



with

Suspension type measuring stand

mm

100 ~ 200
