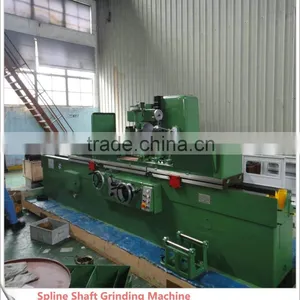

M8612x2000 Spline Shaft Grinder Made in China

US$ 57,300 - 58,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Spline Shaft Grinder

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Spline Shaft Grinder

CNC or Not Normal

Max. Grinding Diameter 125mm

Max. Grinding Length 2000mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number M8612x2000 spline shaft grinder

Voltage Customer's Requirement

Power(W) 4.5kW

Dimension(L*W*H) 5370x1420x1830mm

Weight 5700

Certification CE; ISO9001:2008

After-sales Service Provided Engineers available to service machinery overseas

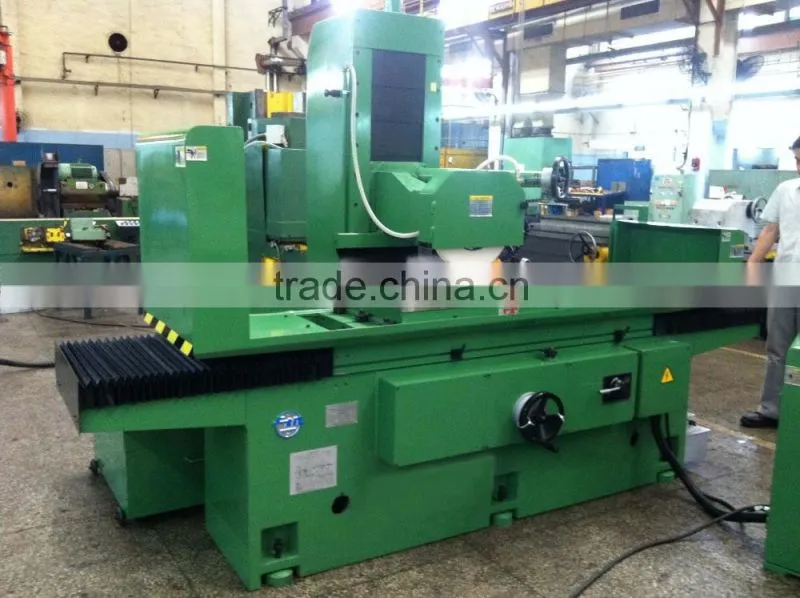

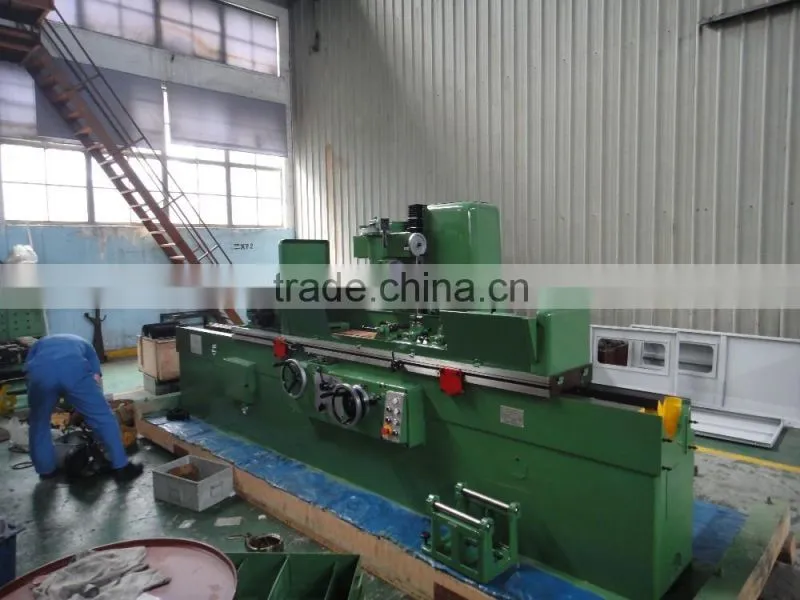

M8612x2000 spline shaft grinder

Main Features

Such spline shaft grinder has following features:

l The wheel has three speeds, which can be realized by changing the belt-pulley.

l Vertical feed is carried out by manual operation, besides, it is also provided with the given amount micro-feed lever.

l Wheel rotation, hydraulic drive and coolant supply are respectively realized by their individual motors.

l CE Standard and CE Certificate;

Main Usage

Special-purpose machine for spline shaft grinding,

including: rectangular spline shafts, the spline flanks of spline broaches, or the bottom- cylindrical surface of the spline,

suitable for automobile, tractor, tractor, machinery, and tool manufacturing industry, as well as the common repair workshops;

Main Technical Data

Specifications	Unit	Parameter
Grinding diameter	mm	Φ30~125
Max.loadedlength	mm	1500
Max.grindinglength	mm	1300
Center height	mm	180
Wheelhead spindle rotating speed	rpm	3000/4500/6000
Worktable travel speed	m/min	0.5~10
Distance from wheel center to worktable surface	mm	Min. 230 Max. 350
Max. travel of grinding head	mm	Vertical: 120 Horizontal: 20
Per division of feed handwheel	mm	0.005
Per turn of feed handwheel	mm	1
No. of notches to be indexed		4/6/8/10/12/16/20/24
Center tapered-bore		MT #4
Indexing-plate dia	mm	Φ200
Wheel dimensions (O.D.×W×I.D)	mm	Max. Φ200x25xΦ32 Min. Φ100x6xΦ20
Total motor power	kW	4.5
N.W/G.W	kg	5700/7200
Overall dimensions	mm	5370x1420x1830
Packing Size	mm	6160x1650x2150
