M1432x3000 Universal Cylindrical Grinding Machine

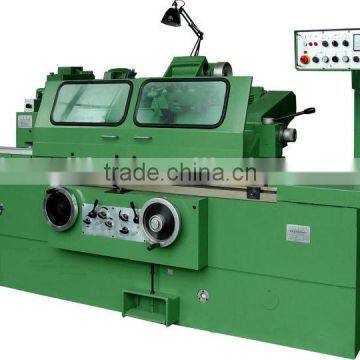

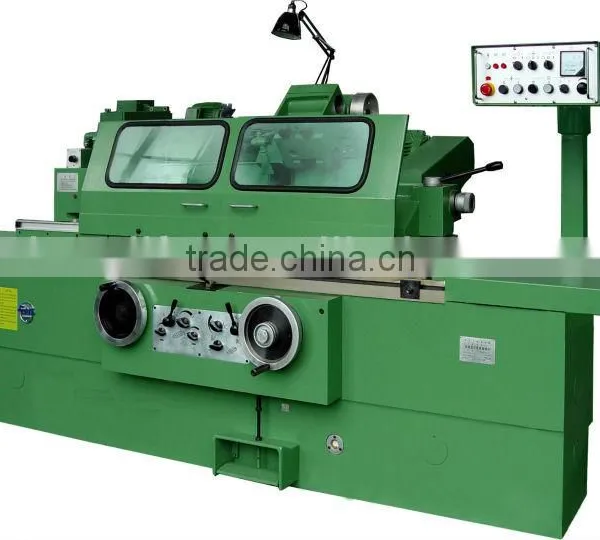

M1432x3000 Universal Cylindrical Grinding Machine photo-1
US$ 65,000 - 65,242 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cylindrical Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Cylindrical Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 320mm
Max. Grinding Length 3000mm
Place of Origin Shanghai, China
Brand Name LFM
Model Number M1432x3000
Voltage 220V 380V 400V 440V
Power(W) 5.5kW
Dimension(L*W*H) 5900x1810x1515mm
Weight 5900
Certification CE; ISO9001:2008; GB/T 19001:2008
After-sales Service Provided Engineers available to service machinery overseas

M1432x3000 Universal Cylindrical Grinding Machine



Main Features:



  • Wheel bearings hybrid bearing, high accuracy and good rigidity
  • The first frame spindle driven by a DC motor, variable speed within the speed range.
  • Tailstock by a dense ball in the form of its rigidity.
  • With a grinding machine indicator to facilitate high-precision grinding of the workpiece.
  • it is operated by hand and can be controlled and acted either by power or by hydraulic system.
  • not only for cylindrical grinding, but also for inner grinding.





Specifications

Unit

Parameter

Outside diameter grinding

mm

Min/Max: 8/320

Inside diameter grinding

mm

Min/Max: 30/100

Max. Outside grinding Length

mm

3000

Max. Inside grinding Length

mm

125

Distance between centers

mm

3000

Height of center

mm

180

Max. Workpiece Weight

kg

150

Worktable speed

m/min

0.1~4

Rapid advance and withdrawal amount

mm

50

Wheel peripheral velocity

m/s

35/17.5

Wheelhead displacement per div of handwheel

mm

Coarse/ Fine: 0.001/0.0025

Internal grinding wheel speed

r/min

10000/15000

Max. Grinding Length when dressing wheel on tailstock

mm

2750

Max. upper worktable swing angle



C.W.: 3°/3°/3°/3°/2°/1.5°

Max. upper worktable swing angle



CC.W.: 3°/1.5°

Max. upper worktable travel

mm

3050

Wheelhead displacement per rev. of handwheel

mm

Coarse/ Fine: 2/0.5

Rapid Advance and Retreat for Grinding Carriage

mm

25

Hydraulic pump pressure

Mpa

2.5

Hydraulic pump capacity

ml/r

10

Coolant pump capacity

L/min

25

Motor total power

kW

8.975

Wheelhead power

kW

5.5

Packing Size (L×W×H)

mm

5900×1810×1515

Net weight

kgs

5900
