M7140x1000 CE Auto Matic Surface Grinding Machine Quality Choice

US$ 26,000 - 26,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 400mm

Max. Grinding Length 1000mm

Place of Origin Shanghai, China

Brand Name LFM

Model Number M7140x1000 surface grinding machine

Voltage Customer's Requirement

Power(W) 5.5kW

Dimension(L*W*H) 35000x2200x2000mm

Weight 3700kgs

Certification ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

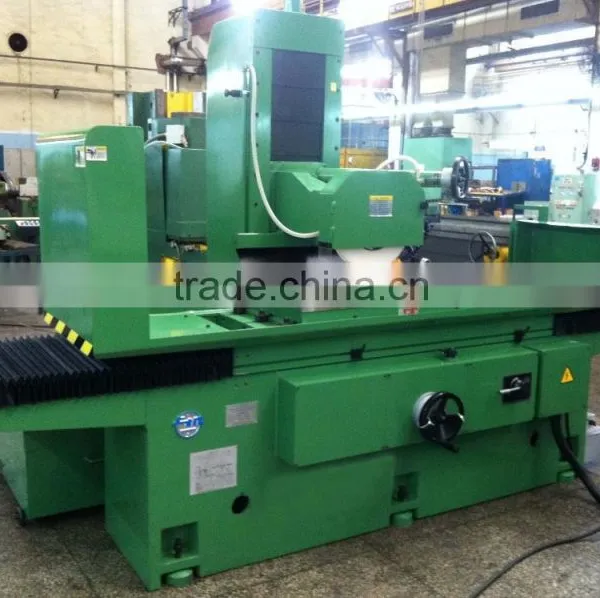

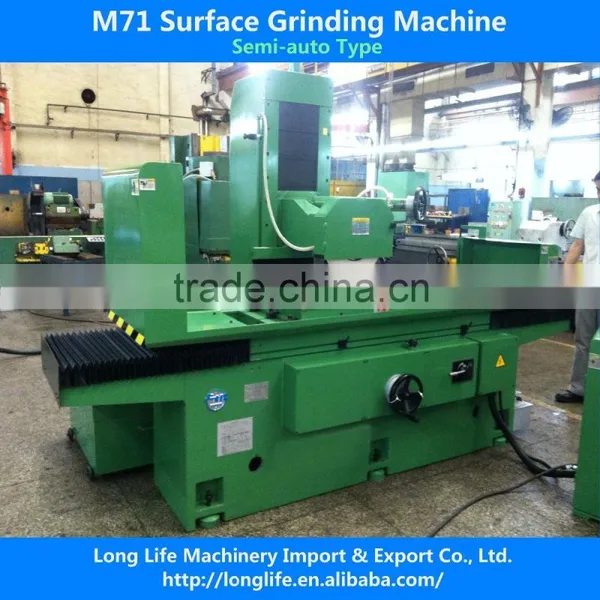

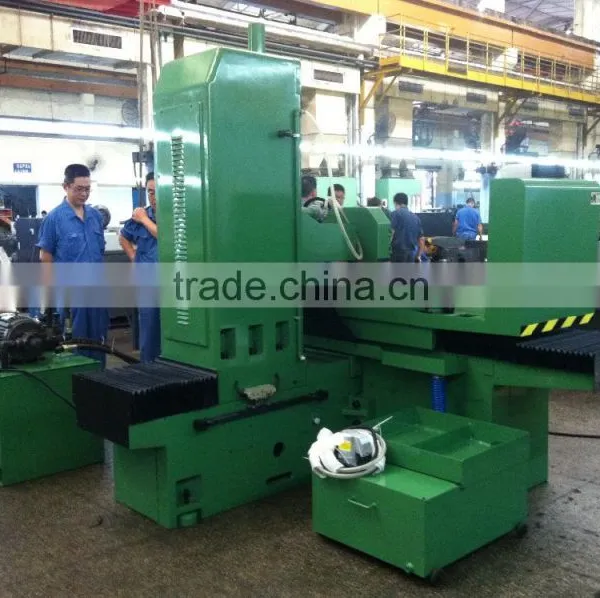

M7140x1000 semi-auto surface grinding machine

Main Features

Such surface grinding machine has following features:

l It has higher accuracy and cutting efficiency.

l Vertical movable type wheelhead can load heavier workpiece than saddle type.

l The table in longitudinal movement driven by the vane pump, stability and low noise, easy opration.

l The temperature of oil pool is low and the precision is fit for National Standard (GB/T4022-1983).

l Grinding head has rapid movements mechanism invertical movement, but also manually feed.

l Grinding head vertical move can be adopted with power rapid movement or hand micro feed.

l Grinding head motor and pump motors are high-grade motor, electrical carry out the national safety standards.

l CE Standard and CE Certificate;

Main Technical Data

Specifications	Unit	Parameter
working area	mm	400×1000
Longitudinal table travel	mm	1100
Cross feed saddle travel	mm	440
Distance from spindle center to table	mm	580
Max. workpiece weight	kg	500
T-slots	mm×N	18×3
Table speed	m/min	5~28
Feed amount by hand wheel	mm/gra.	0.02
Feed amount by hand wheel	mm/rev.	5
Table auto cross feed	mm/min	0.1~15
wheel size	mm	400×40×127
spindle speed	rpm	1450
Up-down handwheel feed	mm	700
Vertical on hand wheel	mm/gra.	0.002
Vertical on hand wheel	mm/rev.	0.25
Auto feed regulating amount	mm	0.005~0.04
Up-down rapid movement speed	mm/min	180
spindle speed	KW	2.8
Up-down drive motor	KW	0.09
Flush water motor	W	47
Cross drive motor	W	94
Hydraulic motor	KW	2.2
Machine height	mm	2000
Floor space	mm	35000×2200
Net weight	kg	3700
Gross weight	kg	4800
