M84100 Manual Roll Grinding Machine With CE

US$ 515,250 - 550,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Roll Grinding Machine

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Roll Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 1000mm

Max. Grinding Length 7000mm

Place of Origin Shanghai, China

Brand Name LFM

Model Number M84100x7000

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 55kW

Certification CE; ISO9001:2008; GB/T 19001:2008

After-sales Service Provided Engineers available to service machinery overseas

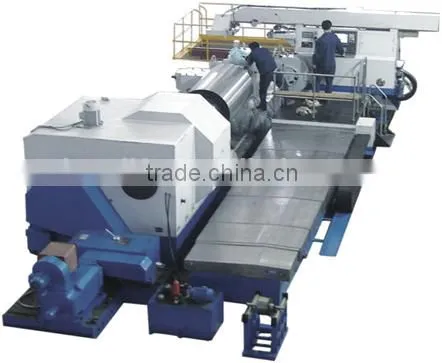

M84100 Manual Roll Grinding Machine

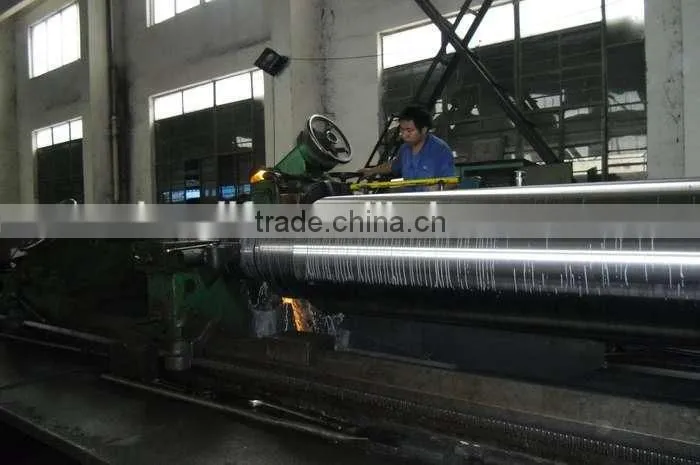

Machine Features

The Roll Grinding Machine is suitable for grinding the convexity and the concave of the medium and small type rolling mill.

The above table can be drived by the copying device and minim-swing with the profile ruler, so that can grind the convex and the concave of the roller. After loosing the profiling ruler and locking the table, it can grind the cylindrical body and journal of the roller.

Many kinds of special bracket can be choosed to grind the roller in order to do well.

There are the check equipment for the convexity and the concave or the jump distance.

Specifications	Unit	Parameter
Maximum grinding diameter	mm	1000
Min grinding diameter	mm	150
Max. center distance	mm	7000
Maximum weight of workpiece	t	20
Specification of grinding wheel	r/min	6~60
Maximum peripheral speed of grinding wheel	mm	750×75×305
Cross travel of grinding wheel	m/s	35
Cross rapid traveling speed of grinding wheel	mm	580
Cross rapid speed of wheel rest	mm/min	400
Longitudinal speed of carriage	mm/min	40~3000
Min set unit of hand encoder	mm	0.001
Max. travel of tailstock quill	mm	300
Support diameter of steady rest	mm	150~400
Flow of coolant system	L/min	200
Power of main motor	kW	55
Grinding spindle motor power	kW	45
Cross feed motor of wheel rest(X axis)	Nm	16
Motor of carriage(Z axis)	Nm	41
Range of steady rest	mm	90-300-450
Consistency of machined diameters	mm/travel	0.003~0.12
Cylinder surface grinding	μm	0.2
Curve surface grinding	μm	0.2
Convex(concave)symmetry at central section	mm	0.003
Weight of the lathe	kg	85000
Machine overall dimension(length×width×height)	mm	14500×4200×2700
Roundness	mm	≤0.004
Circularity	mm/m	≤0.005
Roll shape error	mm	≤0.005
Roughness(Ra min)	μm	Ra:0.32
