Help CenterM1332Bx1000 Semi Auto Cylindrical Grinding Machine With CE
Related Products
-
MK84160 Often-used CNC Roll Grinding Machine With CEUS$ 110,700 - 111,700MOQ: 1 Set -
MK8280 CNC Crankshaft Grinding MachineUS$ 550,000 - 550,000MOQ: 1 Set
-
M1432x750 Universal Cylindrical Grinding MachineUS$ 21,000 - 21,632MOQ: 1 Set
-
LMM80200 China Gantry Surface Grinding MachineUS$ 56,500 - 57,000MOQ: 1 Set
-
2408 Hydrostatic Centerless Grinding Machine for SaleUS$ 308,000 - 308,533MOQ: 1 Set

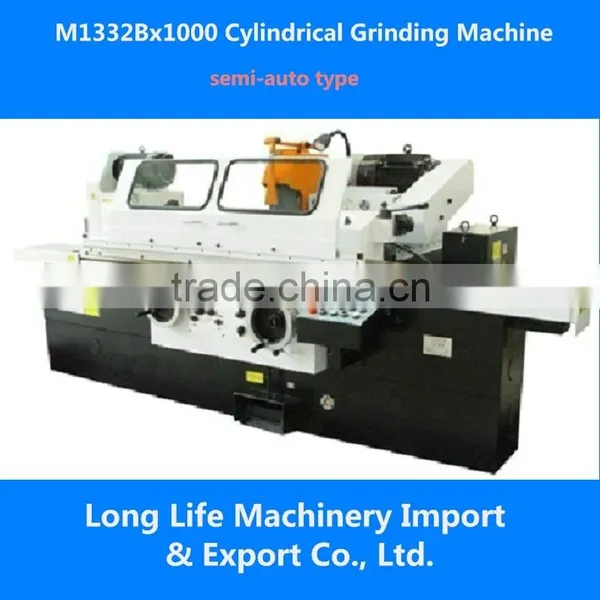

M1332x1000 semi-auto cylindrical grinding machine
suitable for grinding cylindrical or conical parts for its accuracy IT6-IT5,
and adaptable for batch or mass production;
Wheel bearings hybrid bearing, high accuracy and good rigidity
The first frame spindle driven by a DC motor, variable speed within the speed range.
Tailstock by a dense ball in the form of its rigidity.
With a grinding machine indicator to facilitate high-precision grinding of the workpiece.
CE Standard and CE Certificate;
Roundness: 0.0015mm
Dia. Uniformity in the long. Section: 0.005mm
Surface roughness: Ra0.32mm;
Specifications |
Unit |
Parameter |
|
Outside diameter grinding |
Use Center Frame |
mm |
Min/Max: 10/60 |
Outside diameter grinding |
No Center Frame |
mm |
Min/Max: 8/320 |
Inside diameter grinding |
Use Center Frame |
mm |
Min/Max: 30/125 |
Inside diameter grinding |
No Center Frame |
mm |
Min/Max:16/125 |
Max. Workpiece Weight |
kg |
150 |
|
Max. Grinding Length |
mm |
1000 |
|
Distance between centers |
mm |
1000 |
|
Height of center |
mm |
180 |
|
Max. Grinding Length when dressing wheel on tailstock |
mm |
750 |
|
Max. upper worktable swing angle |
|
C.W.: 3°/3°/3°/3°/2°/1.5° |
|
Max. upper worktable swing angle |
|
CC.W.: 3°/1.5° |
|
Max. upper worktable travel |
mm |
1050 |
|
Wheel dimensions (O.D. x W x I.D.) |
mm |
Max. Φ600 x 75 x Φ305 |
|
Wheel dimensions (O.D. x W x I.D.) |
mm |
Worn toΦ450 x 75 x Φ305 |
|
Peripheral Speed of Grinding Wheel |
m/s |
35/35/35/35/35/17.5/17.5 |
|
Wheel Spindle Speed |
r/min |
1100 |
|
Max. leadscrew travel |
mm |
231 |
|
Rapid advance and withdrawal amount |
mm |
50 |
|
Wheelhead displacement per rev. of handwheel |
mm |
Coarse / Fine: 2/0.5 |
|
Wheelhead displacement per div of handwheel |
mm |
Coarse / Fine: 0.001/0.0025 |
|
Motor total power |
kW |
14.55 |
|
Wheel peripheral velocity |
m/s |
35/17.5 |
|
Max. Transferred Quantity (Fast-moving Included) |
mm |
241 |
|
Rapid Advance and Retreat for Grinding Carriage |
mm |
25 |
|
Wheel Spindle Speed( HJX33-03A) |
r/min |
10000/15000 |
|
Machine Size (L×W×H) |
mm |
L: 3180 |
|
mm |
W: 1810 |
||
mm |
H : 1665 |
||
Packing Size (L×W×H) |
mm |
4880×2250×2000 |
|
Gross/Net |
kg |
3700/4000 |
|
