M618/818 Small Manual Surface Grinding Machine

US$ 3,100 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 220mm

Max. Grinding Length 520mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number M618 M818 surface grinding machine

Voltage 220V 380V 400V 415V 440V

Power(W) 1.5kW

Dimension(L*W*H) 1330/1450x1090x1680mm

Weight 790~1120kgs

Certification CE; ISO9001:2008; GB/T 19001:2008

After-sales Service Provided Engineers available to service machinery overseas

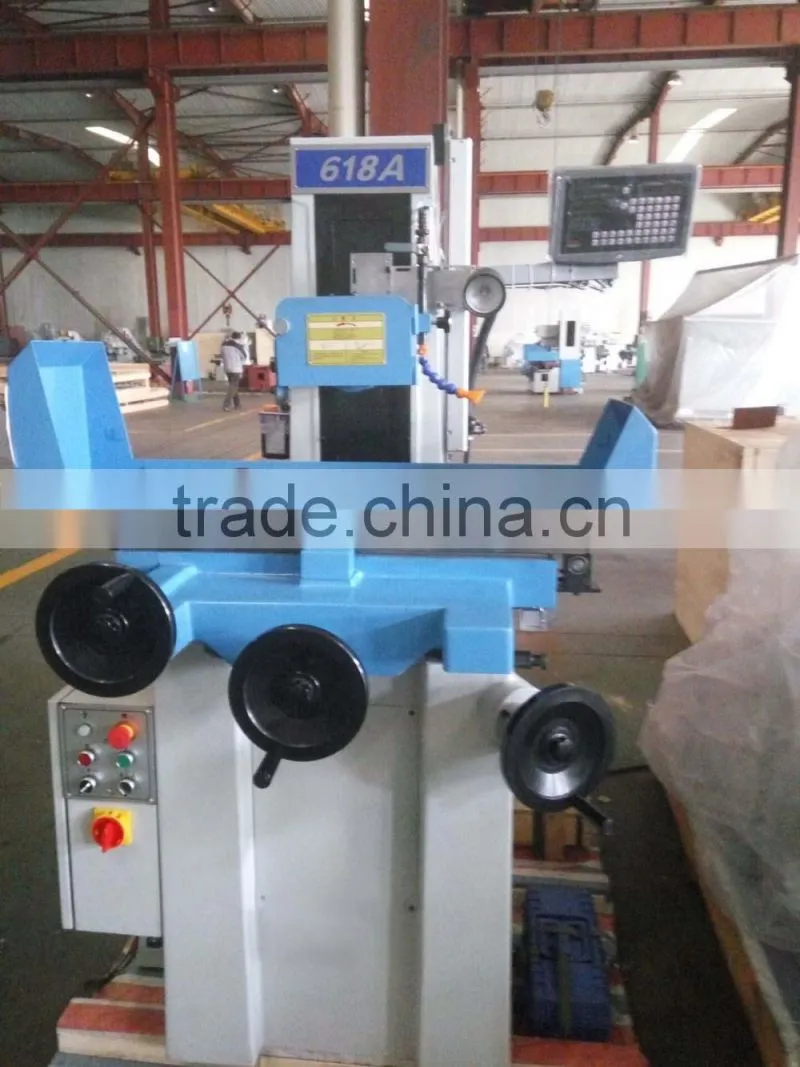

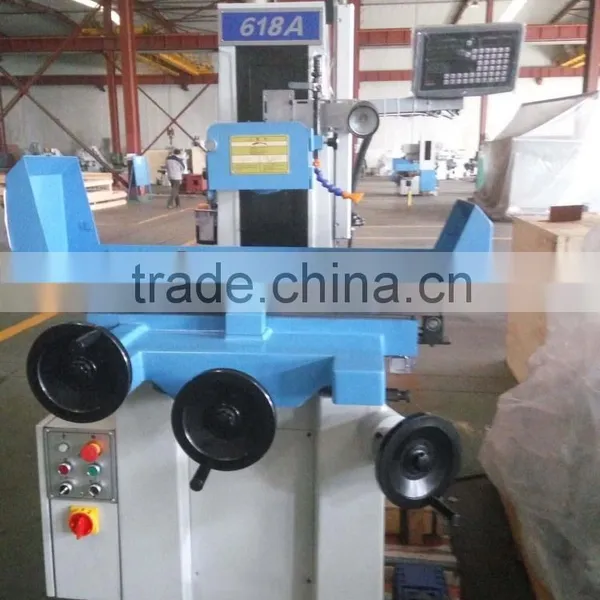

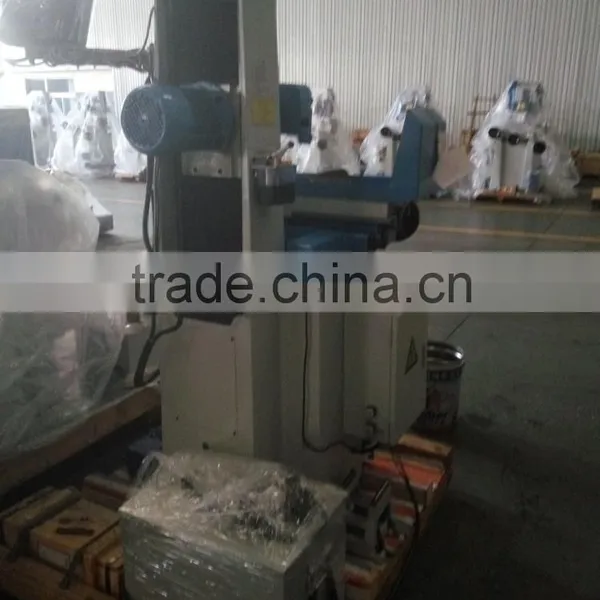

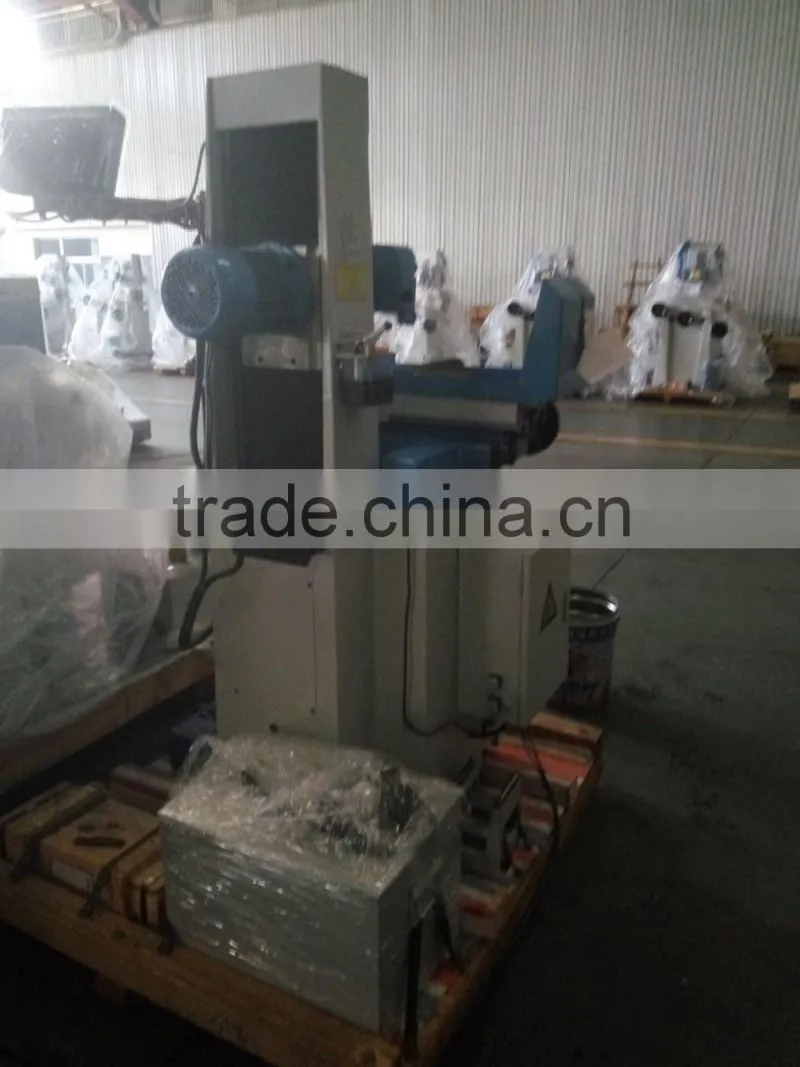

M618/818 small manual surface grinding machine

Main Features

Such manual surface grinding machine has following features:

compact construction, excellent capability, and suitable to grinding surface and complex form surface by form dressed whell.

it can be performed without power feeding.

The distance between the grinding wheel and working table has been enlarged;

reliablity, flexibility, high accuracy, high rigidity, small thermo-deformation and low noise;

CE Standard and CE Certificate;

Main Technical Data

Item/Model		Unit	M618A	M818A	SG200	SG250
Max. width to be ground		mm	165	220	165	220
Max. length to be ground		mm	470	470	470	520
Max. height to be ground		mm	350
Table size		mm	155x460	210x450	150x460	200x520
Permanent magnetic chuck size(optional)		mm	150x400	200x400	150x400	200x450
Max. longitudinal travel		mm	500	500	500	570
Max. cross travel		mm	185	240	200	250
Max. distance from spindle center to table surface		mm	450
Feed of vertical handwheel	Per rev.	mm	1		2
Feed of vertical handwheel	Per div.	mm	0.005
Grinding wheel size(ODWID)		mm	200x13x31.75		200x20x31.75
Spindle speed		r/min	3450(60Hz),2850(50Hz)
Power of spindle head		kW	Standard 1.5(build in spdindle:1.1kW)
Max. load capacity (include permanent magnetic chuck)		kg	97	128	110	140
Machine weight		kg	790	920	1000	1120
Machine appearance size(L x W x H)		mm	1330x1090x1680	1330x1150x1680	1360x1350x1710	1450x1390x1770
Package dimension(L x W x H)		mm	1153x1373x1920	1153x1413x1950	1670x1560x1930	1670x1700x1980
Package size(dismantle table) (L x W x H)		mm	1340x1120x1930	1400x1120x1980	1670x1120x1930	1670x1120x1980
