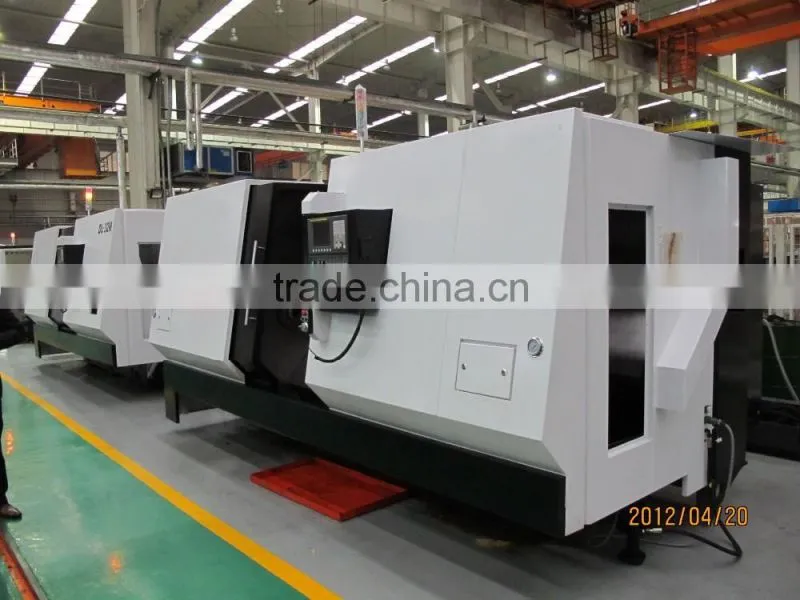

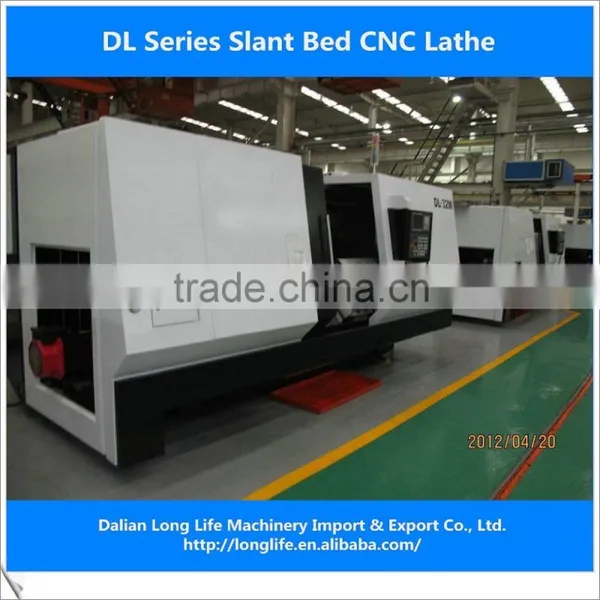

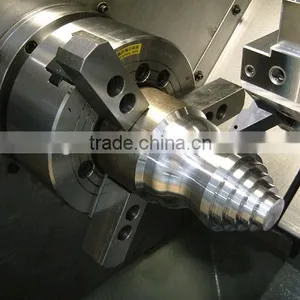

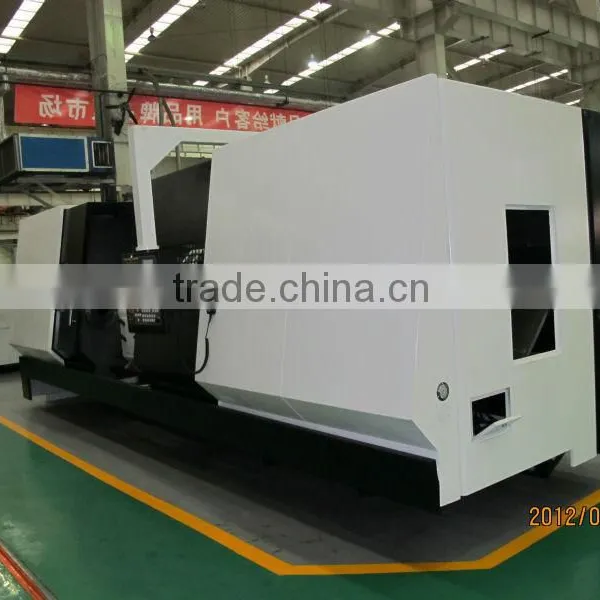

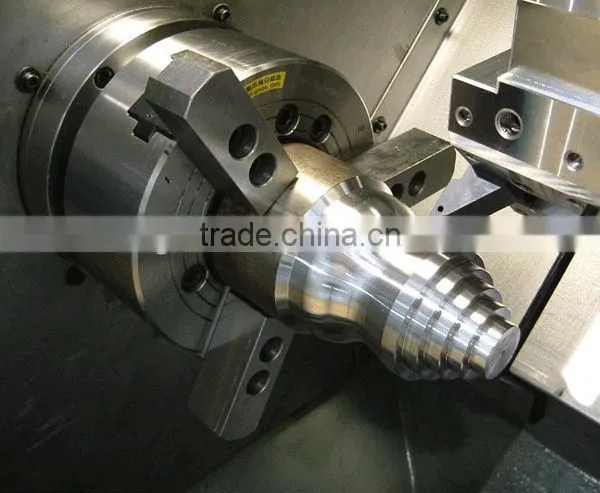

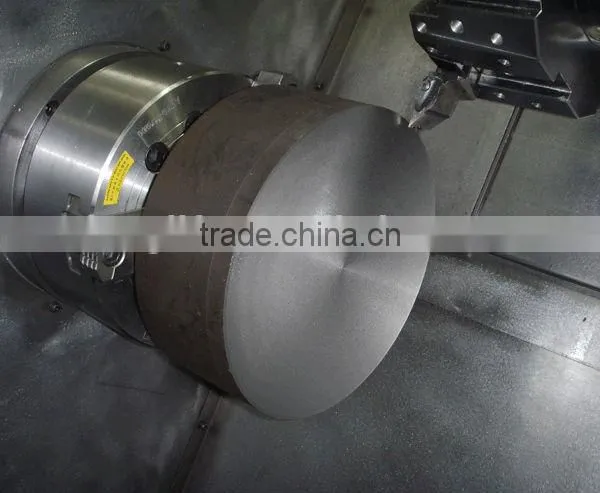

DL Series CE slant bed cnc lathe Technical Data
DL series slant bed cnc lathe machine has following features:
1. Rigid cast-iron structure hardened (50-52HRC) and ground guarantee high precision and stability;
2. The machine bed is made of heat stabilized cast-iron;
3. A wide range of options and accessories allow the machine to be highly customized for very accurate and reliable machining;
4. Various configuration are available with spindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm;
5. CE Standard and CE Certificate;
slant bed cnc lathe machine's technical information:
Item |
DL15 |
DL20 |
DL20M |
DL25M |
DL30M |
DL32M |
DL40 slant bed cnc lathe |
DL50 slant bed cnc lathe |
Swing over bed mm) |
¢450 |
¢460 |
¢460 |
¢520 |
¢625 |
¢680 |
¢800 |
¢1000 |
Center distance (mm) |
320 |
600/1000 |
600/1000 |
1000/1500 |
1000/1500 |
1000/2000 |
2000/2500/3000 |
2000/3000/4000 |
Max. turning diameter(Shafts/ Discs)(mm) |
¢250/300 |
¢260/380 |
¢260/380 |
¢310/500 |
¢310/600 |
¢400/630 |
¢550/750 |
¢800/1000 |
Guide way type |
linear |
linear |
linear |
box-type |
linear |
box-type |
box-type |
box-type |
Chuck size |
6" |
8" |
8" |
10" |
12" |
15" |
15" |
15" |
Spindle nose |
ISO A2-5 |
ISO A2-6 |
ISO A2-8 |
ISO A2-8 |
ISO A2-8 |
ISO A2-11 |
ISO A2-11 |
ISO A2-15 |
Spindle speed (rpm) |
50~5000 |
40~4000 |
45~4500 |
35~3500 |
30~3000 |
20~2000 |
20~2000 |
50~1200 |
Main spindle motor power(S6)(kW) |
5.5/(7.5) |
11(15) |
11(15) |
18.522 |
15(18.5) |
22(30) |
22(30) |
22(30) |
Spindle bore diameter (mm) |
¢70 |
¢70 |
¢76 |
¢88 |
¢88 |
¢100 |
¢100 |
¢100 |
X-axis travel (mm) |
150 |
220 |
265 |
260 |
325 |
375 |
375 |
500 |
Z-axis travel (mm) |
320 |
540/100 |
700/1040 |
1100/1600 |
1110 |
1030/2030 |
2160/2660/3160 |
2160/3160/4060 |
X-axis rapid traverse(m/min) |
20 |
12 |
20 |
12 |
24 |
13 |
12 |
12 |
Z-axis rapid traverse(m/min) |
20 |
16 |
20 |
12 |
24 |
13 |
16 |
12 |
Positioning accuracy(mm) |
X0.016 Z0.020 |
X0.016Z0.025 |
X0.010 Z0.012 |
X0.016 Z0.025 |
X0.019 Z0.032 |
X0.019 Z0.032 |
X0.019 Z0.040 |
X0.019 Z0.040 |
Repeat positioning accuracy(mm) |
X0.007 Z0.008 |
X0.007 Z0.010 |
X0.0040 Z0.006 |
X0.0070 Z0.010 |
X0.0010 Z0.013 |
X0.0010 Z0.013 |
(X0.0012 Z0.015 |
(X0.0012 Z0.020 |

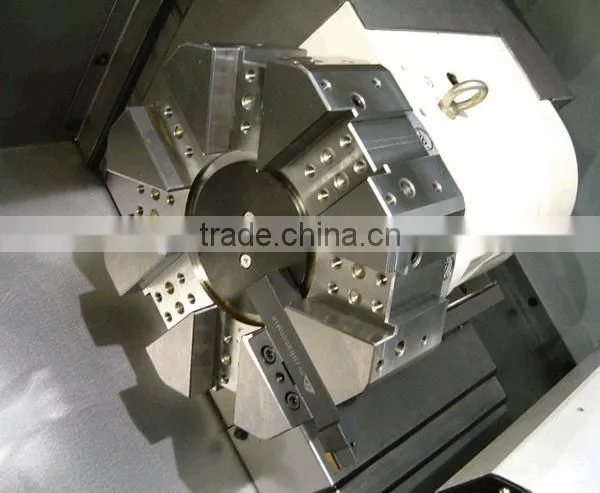

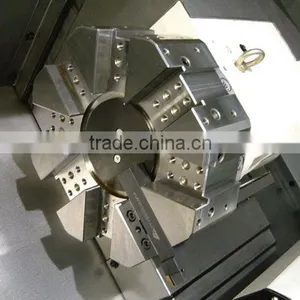

Turret: number of stations |
8 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
Tool size (mm) |
20×20 |
25×25 |
25×25 |
25×25 |
25×25 |
32×25 |
32×25 |
32×25 |
Tailstock quill diameter(mm) |
¢70 |
¢85 |
¢85 |
¢100 |
¢140 |
¢160 |
¢160 |
¢180 |
Tailstock quill travel(mm) |
80 |
100 |
139 |
139 |
150 |
180 |
180 |
180 |
Tailstock taper(MT) |
4 |
4 |
5 |
5 |
5 |
5 |
5 |
6 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
