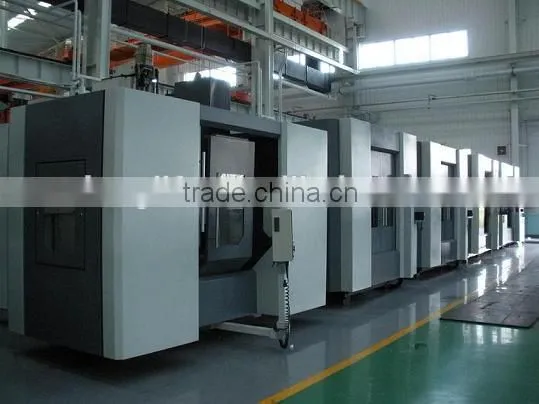

CE Certified Linear Way Vertical Machining Center Hot-sale VDL600

Table(L×W)

mm

700×320

800×420

T-slot(Numbers×Width×Distance)(b/t slots)

mm

3×14×110

3×18×125

Max. Table load

kg

150

500

The distance from spindle center line to column guide way surface

mm

430

511

The distance from spindle nose end face to table upper surface

mm

140~520

150~670

X/Y/Z travel

mm

450/350/380

600/420/520

X/Y/Z guide way type

Linear way

Linear way

X/Y/Z rapid traverse speed

m/min

30/30/30

24/24/20

Feed rate

mm/min

1~10000

1~10000

X/Y/Z servo motor power

kW

1.4/1.4/1.6 (1.2/1.2/1.8)

( 2.85/2.85/2.85)

3/3/3 (1.2/1.2/1.8)

(1.8/1.8/2.5)

X/Y/Z servo motor torque

N.m

7/7/7

11/11/11

Positioning accuracy

mm

0.016

X/Z:0.020

Y:0.016

Repeat positioning accuracy

Nm

0.006

X/Z:0.008

Y:0.006

Spindle motor power

kW

3.7/5.5

7.5/11

Spindle speed range

r/min

60~10000

60~8000

Spindle taper

#40(7/24)

#40(7/24)

Tool magazine capacity/Type

12/drum

16/drum

Tool adaptor type

BT40

BT40

Max. Tool weight

kg

6

7

Max. Tool diameter/length

mm

80/200

drum

100/280

drum 77/280

swing arm

Time of tool change(T-T)

sec

6~8

6~8/3.5

Air pressure requirement

MPa

0.6

0.6

Power requirement

kW

15

25

Overall dimension(L×W×H)

mm

2450×1590×2200

2310×2040×2337

Net weight

kg

2000

4800
