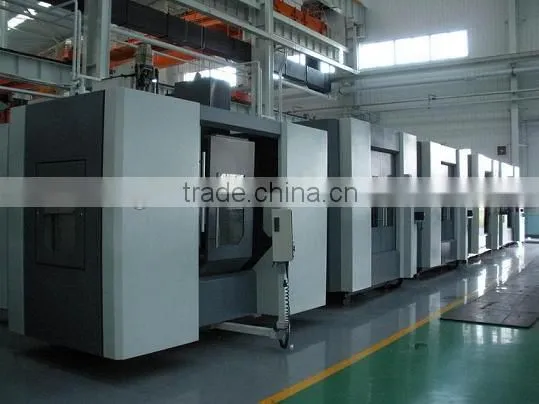

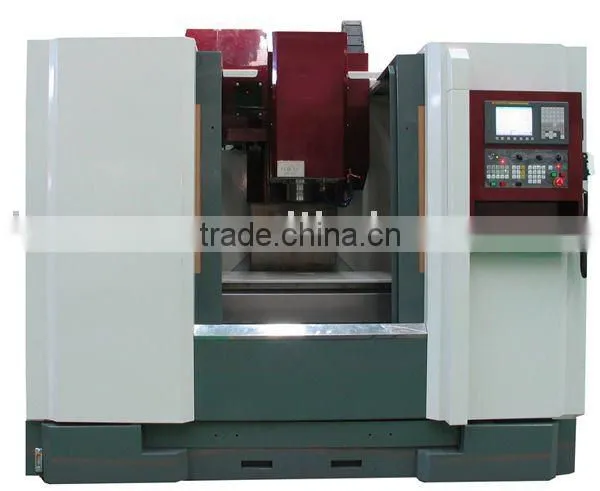

VDL1300 Linear Way CNC Vertical Machining Center with CE

Table (L × W)

mm

1300×560

T-slot (Numbers × Width × Distance) (b/t slots)

mm

5×18×100

Table load Max

kg

750

The distance from spindle center line to column guide way surface

mm

629

Distance from spindle nose end face to table upper surface

mm

135~735

X/Y/Z travel

mm

1270×560×600

X/Y/Z guide way type

X/Y: Linear way
Z: Sliding guide way
Y-axis-3 Rails

X/Y/Z rapid traverse speed

m/min

24/24/18

Feed rate

mm/min

1~10000

X/Y/Z servo motor power

Nm

22/22/22

X/Y/Z servo motor torque

N.m

22/22/22

Positioning accuracy

mm

X:0.025  Y/Z:0.020

Repeat positioning accuracy

mm

X:0.010  Y/Z:0.008

Spindle motor power

kW

11/15

Spindle speed range

r/min

60~8000

Spindle taper

#40(7/24)

Tool magazine capacity / Type

20/drum

Tool adaptor type

BT40

Max. Tool weight

kg

7

Max. Tool diameter/length

mm

127/305

swing arm

Time of tool change (T-T)

sec

3.5

Air pressure requirement

MPa

0.6

Power requirement

kW

35

Overall dimension (L × W × H)

mm

3330×2280×2650

Net weight

kg

7200
