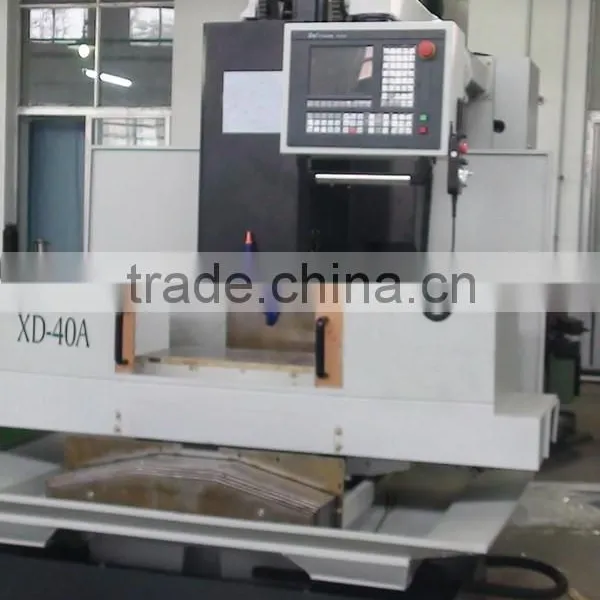

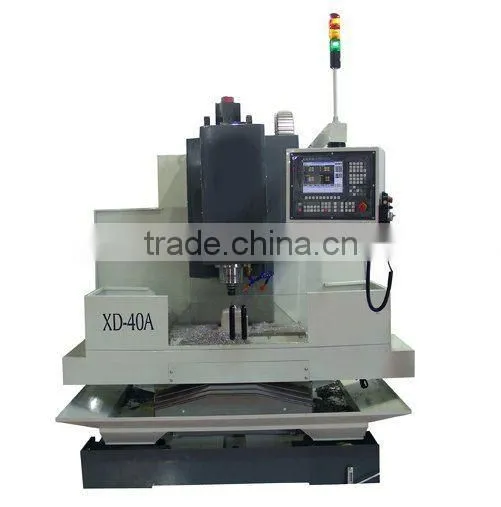

Vertical Milling Machines

Item

XD-30A

XD-40A

Table(L×W)(mm)

700×320

800×420

T-slot(Numbers × Width × Distance)(b/t slots)

3×14×110

3×18×125

Table load Max(kg)

350

500

The distance from spindle center line to column guide way surface(mm)

430

511

The distance from spindle nose end face to table upper surface(mm)

140~520

150~670

X/Y/Z travel(mm)

450/350/380

600/420/520

X/Y/Z guide way type

Linear way

X/Y/Z rapid traverse speed(m/min)

30/30/30

24/24/20

Feedrate(mm/min)

1-10000

X/Y/Z servo motor power(Nm)

11/11/11

12/12/12

Spindle motor power(kW)

5.5/7.5

7.5/11

Spindle speed range(r/min)

60~10000

60~8000

Spindle taper

#40(7/24)

X/Y/Z Positioning accuracy(mm)

0.016

X/Z:0.02  Y:0.016

Air pressure requirement (mPa)

0.5

0.6

Overall dimension(L×W×H)

2500×2000×2200

2310×2040×2337

Net weight (kg)

2400

4000
