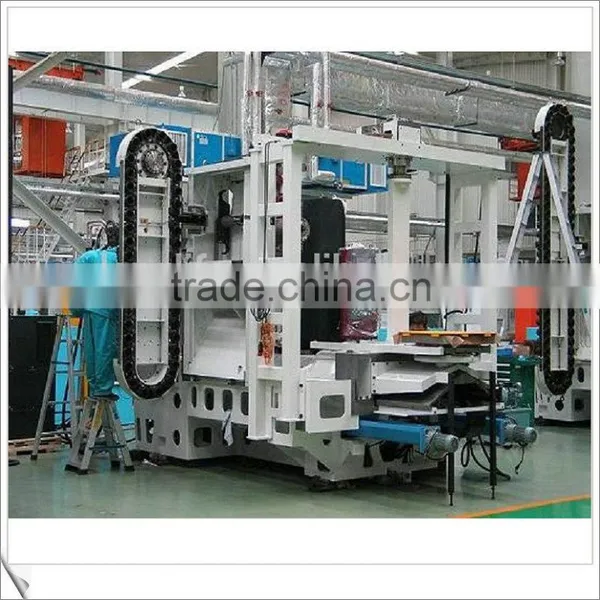

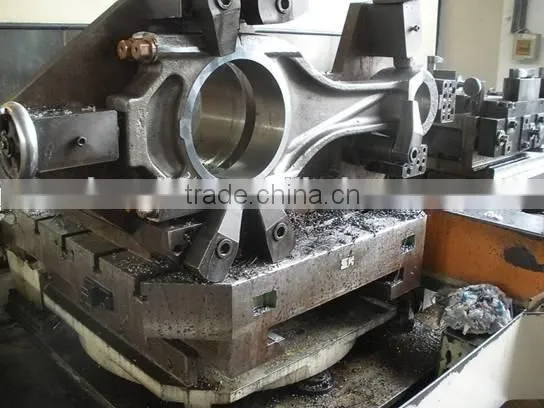

MDH125 Large OKK cnc horizontal machining center with ISO9001

Specifications

Unit

Parameter

Table size

mm

1250×1250

Table top to spindle center distance

mm

70~1470

Table center to spindle front-end distance

mm

360~1600

Maximum table load

kg

3000

Table indexing

1°×360°

Tool storage capacity

40/60/80/120

Time of tool change

s

2.5(T-T),6.2(C-C)

Maximum tool weight

kg

25

Maximum tool diameter

mm

Φ115(Adjacent empty:Φ270)

Maximum tool length

mm

500

Table indexing time

S

5 (90°)

Coordinate travel (X/Y/Z)

mm

1700/1400/1240

Fast moving speed

m/min

45

Spindle speed

rpm

12000

Spindle speed gears

2(MS)

Spindle internal taper

7/24 No.50

Spindle diameter

mm

Φ100

knife handle form

BT-50

Rivets form

45°

change table amount

2

Table change the time

s

35

Positioning accuracy

mm

X±0.0030

Y/Z±0.0030

Repeat positioning accuracy

mm

X±0.0015

Y/Z±0.0015

Machine weight

kg

32500

Machine covers an area of size

mm

5530×8195
