CE Box-way CNC Vertical Machining Center Hot-sale VDF1000
- 300 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
- Industrial CNC working Compact Machine Center, | CNC milling machine of 4-axis | Small CNC Machines For Workshop
- Metal working CNC, MX400 Small Machine Center, | CNC milling machine of 4-axis | Small CNC Machines For Workshop
- MX400 Small Machine Center Small CNC Milling | CNC milling machine of 4-axis | Small CNC Machines For Workshop
- MX400 Small Drilling & Milling Center
- MX400 Small Drilling & Milling Center Small CNC Milling | CNC milling machine of 4-axis | Small CNC Machines For Workshop
- MX400 Small Drilling & Milling Center Small CNC Milling | CNC milling machine of 4-axis | Small CNC Machines For Workshop
Product Details
Condition: | New | Type: | Vertical | Place of Origin: | Liaoning, China |
Brand Name: | DALIAN | Model Number: | VDF1000 VDF1200 VDF1500 VDF1800 | Voltage: | 3Ph 220V/380V/415V/440V/480V 50/60Hz |
Certification: | CE; ISO9001:2008; GB/T19001:2008 | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

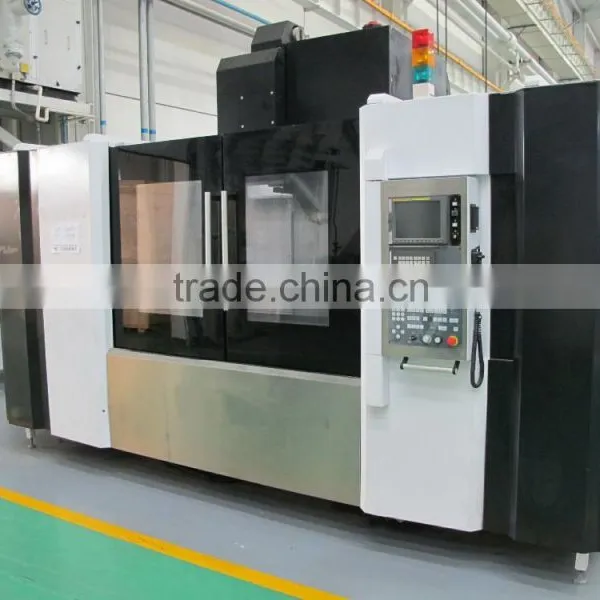

Vertical Machining Center Box Way
to:export(at)
Main Features:
- With CE Certificate;
- The basic parts, including in machine floor, column, spindle box, cross slide and work-table, are casted with high rigidity cast-iron, so that guarantees s stable structure and ever high quality.
- The P4 precision angular contact bearing is applied to spindle assembled in constant house temperature environment, which guarantees the stability and high machining precision.
- X, Y, Z axes are all equipped with high-precision ballscrews;
- Disk-type tool magazine with the capacity of holding 24 BT40 tools simultaneously, which is powered by electric motor and operates quickly and stably.
- The machine is equipped with full-guard and good-looking, waterproof, safe and also environment-friendly.
- The control system is employed FANUC Oi-M control system and completely digital AC Servo Unit supported by powerful software that supports the RS232 serial interface.
Item | VDF1000 | VDF1200 | VDF1500 | VDF1800 |
Table(L×W)(mm) | 1120×560 | 1220×620 | 1700×800 | 2000×800 |
T-slot(Numbers × Width × Distance) (b/t slots) | 5×18×100 | 5×18×100 | 6×18×125 | |
Table load Max(kg) | 750 | 1200 | 2500 | |
The distance from spindle center line to column guide way surface(mm) | 629 | 660 | 850 | |
The distance from spindle nose end face to table upper surface(mm) | 135-735 | 90-765 | 200-962 | 180-942 |
X/Y/Z travel(mm) | 1020/560/600 | 1200/600/675 | 1530/800/762 | 1850/800/762 |
X/Y/Z guide way type | box way | box way | box way | |
X/Y/Z rapid traverse speed(m/min) | 24/24/18 | 20/20/18 | 15/15/12 | |
Feedrate (mm/min) | 1-10000 | 1-10000 | 1-6000 | |
X/Y/Z servo motor power(Nm) | 12/12/12 | 22/22/22 | 22/22/22 | |
Spindle motor power(kW) | 7.5/11 | 11/15 | 11/15 wide range motor | |
Spindle speed range(r/min) | 60-8000 | 45-6000 | 45-6000 | |
Spindle taper | #40(7/24) | #50(7/24) | #50(7/24) | |
Tool magazine capacity/Type | 20/drum | 24/swing arm | 24/swing arm | |
Tool adaptor type | BT40 | BT50 | BT50 | |
Max. Tool weight(kg) | 7 | 15 | 15 | |
Max. Tool diameter/length(mm) | 77/305 | 127/305 | 110/350swingarm | |
Time of tool change(T-T)(sec) | 6-8/3 | 3.5 | 3.5 | |
Air pressure requirement (mPa) | 0.6 | 0.6 | 0.6 | |
Power requirement (kW) | 25 | 35 | 40 | |
Overall dimension(L×W×H) | 2820×2820×2477 | 2880×2815×2791 | 4300×3480×3120 | 5160×3480×3120 |
Net weight (kg) | 8000 | 8500 | 14000 | 14500 |
