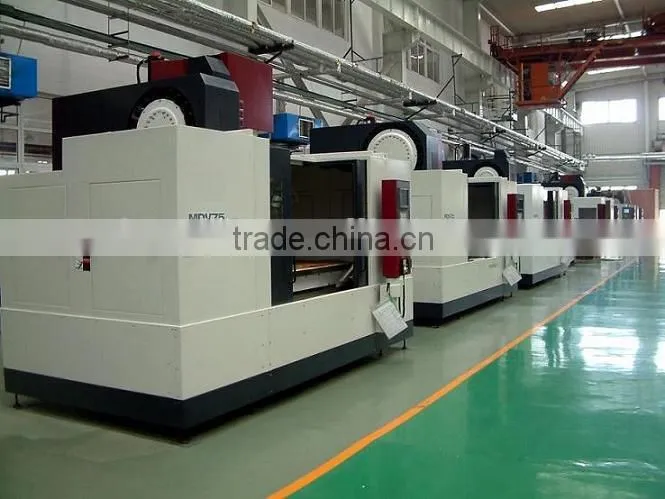

MDV75 high speed cnc vertical machining center
l Full - enclosed protective cover, XYZ track slip surface protection, and protection of steel, cutting oil installations(Cutting Oil separating tank)
l Work lights spindle lubricating oil temperature adjusting device, rear - mounted spiral chip removal device on each one, the level of alignment component
l Mechanical handling parts, automatic cut - off devices, electrical spare fuse
l FANUC 18 I control system of 10.4'' color LCD displays, auto power off function, memory length of 160 M procedures, electric leakage protection device
l Electric heat exchanger equipped with 20 disc type tool changer, and silver HIWIN Ball screws
l MDV55 configure the original Japanese OKK spindle -8000rpm gear spindle 117.5KW 25, MDV75 configuration IBAG
l 25~6000rpm gear spindle 117.5KW
l When exporting countries and regions need different when transformer no further charges.
l Standard accessories:
l Iron gasket for Machine Tool and Tool box wrenches, basic installation instructions, maintenance manuals and electrical manual NC system information;
l CE Certificate is provided;
l High-prision spindle and high spindle speed: 6000~13000rpm;
Specifications |
Unit |
Parameter |
Table(L×W) |
mm |
1550x740 |
T-slot(Numbers×Width×Distance)(b/t slots) |
mm |
22×140×5 |
Table load Max |
kg |
1500 |
The distance from spindle center line to column guide way surface |
mm |
810 |
The distance from spindle nose end face to table upper surface |
mm |
150-810 |
X/Y/Z travel |
mm |
1530/740/660 |
X/Y/Z guide way type |
|
Sliding Guide way |
X/Y/Z rapid traverse speed |
m/min |
24/24/20 |
Feed rate |
mm/min |
1~10000 |
X/Y/Z servo motor power |
Nm |
4.0/4.0/7.0 |
Positioning accuracy |
mm |
±0.003(JIS)/0.008(VDI) |
Repeat positioning accuracy |
mm |
±0.002(JIS)/0.004(VDI) |
Spindle motor power |
kW |
7.5/11(SPECIAL:11/15) |
Spindle speed range |
r/min |
6000(Second level gear speed) (Special:8000rpm(Second level gear speed/13000rpm MS) |
Spindle taper |
|
50 |
Tool magazine capacity/Type |
|
20(Special:30) |
Tool adaptor type |
|
JISB6339 50T |
Max. Tool weight |
kg |
20 |
Max. Tool diameter/length |
mm |
Φ110 (30Drum:Φ103)/350 |
Time of tool change(T-T) |
sec |
(T-T), 5.9 (C-C) Speed as per the tool weight |
Air pressure requirement |
MPa |
0.4~0.6 |
Net weight |
kg |
10500 |
Repeat positioning accuracy |
mm |
X±0.0015 Y/Z±0.0015 |
Machine weight |
kg |
32500 |
Machine covers an area of size |
mm |
5530×8195 |
