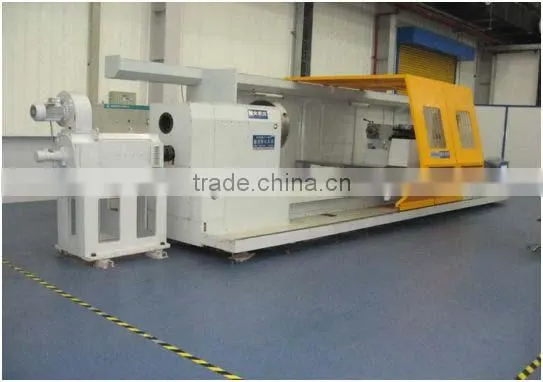

Heavy-duty CNC Horizontal Lathe With CE

Heavy-duty CNC Horizontal Lathe With CE thumbnail-1
Heavy-duty CNC Horizontal Lathe With CE thumbnail-2
Heavy-duty CNC Horizontal Lathe With CE photo-1

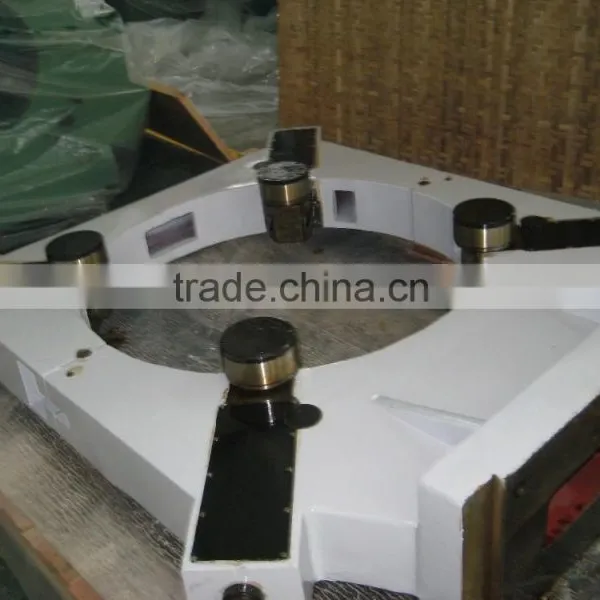

Heavy-duty CNC Horizontal Lathe With CE photo-2
US$ 60,000 - 180,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 1800mm
Place of Origin Liaoning, China
Brand Name DALIAN
Model Number CK61125 CK61140 CK61160 CK61180
Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz
Certification CE; ISO9001:2008; GB/T19001:2008
After-sales Service Provided Engineers available to service machinery overseas

Heavy Duty CNC Lathe

Heavy-duty CNC Horizontal Lathe with CE
Main Features:



  • Machine bed has three guideways or guideways on one-piece casting,
  • induction hardened and ground to guarantee high accuracy ,load capacity and long life working.

Specifications

Unit

CK61125 CKW61125

CK61140 CKW61140

CK61160 CKW61160

CK61180/1 CKW61180/1

CK61125/2 CKW61125/2

CK61140/2 CKW61140/2

CK61160/2 CKW61160/2

CK61180/2 CKW61180/2

Swing over bed

mm(in)

1250(50)

1400(56)

1600(64)

1800(72)

1250(50)

1400(56)

1600(64)

1800(72)

Swing over carriage

mm(in)

900(36)

1100(44)

1280(51)

1480(59)

880(35)

1080(43)

1280(51)

1480(59)

Between distance

mm(in)

1500-8000(60-320)

1500-8000(60-320)

1500-8000(60-320)

1500-8000(60-320)

1500-8000(60-320)

1500-8000(60-320)

1500-8000(60-320)

1500-8000(60-320)

Width of bed

mm(in)

970(39)

970(39)

970(39)

970(39)









Support capacity between centers

Kg

8000,10000

8000,10000

8000,10000

8000,10000

15000,18000

15000,18000

15000,18000

15000,18000

Spindle hole through

mm(in)

130(5.2) 100(4)

130(5.2) 100(4)

130(5.2) 100(4)

130(5.2) 100(4)

100(4)

100(4)

100(4)

100(4)

Spindle nose



ISO A2-15

ISO A2-15

ISO A2-15

ISO A2-15

ISO A2-15

ISO A2-15

ISO A2-15

ISO A2-15

Spindle taper

mm

Metric No. 140

Metric No. 140

Metric No. 140

Metric No. 140

140, 1:7

140, 1:7

140, 1:7

140, 1:7

Spindle speed

rpm

3.15~ 315

Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear

3.15~ 315

Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear

3.15~ 315

Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear

3.15~ 315

Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear

2.5~ 250

Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear

2.5~ 250

Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear

2.5~ 250

Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear

2.5~ 250

Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear

Turret made by China



Vert.: 4

Hor.: 8,12

Vert.: 4

Hor.: 8,12

Vert.: 4

Hor.: 8,12

Vert.: 4

Hor.: 8,12

Vert.: 4

Hor.: 8,12

Vert.: 4

Hor.: 8,12

Vert.: 4

Hor.: 8,12

Vert.: 4

Hor.: 8,12

Changing time

s

0.5

0.5

0.5

0.5

0.5

0.5

0.5

0.5

Size of tool holder

mm(in)

32×32(1.3×1.3) /45×45(1.8×1.8)

32×32(1.3×1.3) /45×45(1.8×1.8)

32×32(1.3×1.3) /45×45(1.8×1.8)

32×32(1.3×1.3) /45×45(1.8×1.8)

32×32(1.3×1.3) /45×45(1.8×1.8)

32×32(1.3×1.3) /45×45(1.8×1.8)

32×32(1.3×1.3) /45×45(1.8×1.8)

32×32(1.3×1.3) /45×45(1.8×1.8)

Repeated positioning accuracy of cutterhead



2"

2"

2"

2"

2"

2"

2"

2"

Rapid traverse of X-Axis & Z-Axis

mm / min

X: 4000

Z: 6000

X: 4000

Z: 6000

X: 4000

Z: 6000

X: 4000

Z: 6000

X: 4000

Z: 6000

X: 4000

Z: 6000

X: 4000

Z: 6000

X: 4000

Z: 6000

Diameter of tailstock sleeve

mm(in)

Ø 160

Ø 160

Ø 160

160(6.4)180(7.2)200(8)

240(9.6),280(11)







Taper of tailstock quill





Metric No. 80

Metric No.8,(Morse No.6)

80; 1:7









Rapid speed of tailstock

mm/min



3000













Inverter to change speed of motor



Yasakawa of Japan

Yasakawa of Japan

Yasakawa of Japan

Yasakawa of Japan

Yasakawa of Japan

Yasakawa of Japan

Yasakawa of Japan

Yasakawa of Japan

Electrical power



380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

Heavy-duty CNC Horizontal Lathe with CE
