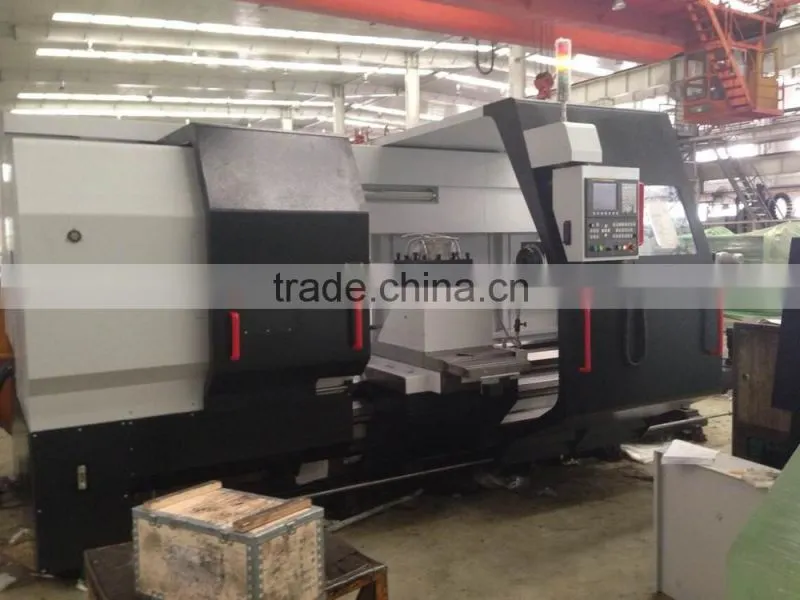

CKE6180/100/125M Large CNC Flat Bed Lathe with CE
- 1000 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
-
CK210B Small CNC Lathe, Siemens CNC, training cnc, cnc trainer, school cnc, training cnc
-
CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
-
CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
-
TP 35/45 Series Parallel Double Spindle Turning Center
-
WF-450QTN Line Rail Inclined Bed Turret Lathe
-
Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 800~1250mm | Place of Origin: | Liaoning, China |
Brand Name: | DALIAN | Model Number: | CKE61100Mx1500~6000mm | Voltage: | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz |
Power(W): | 22/26kW | Certification: | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

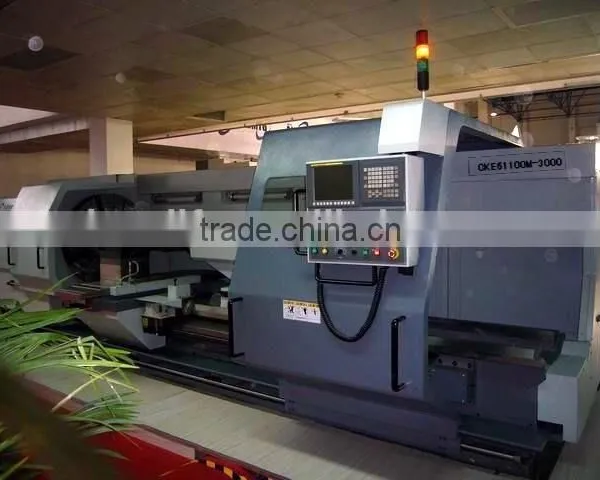

CKE6180/100/125M Large CNC Flat Bed Lathe
- Construction casting molded with resin sand of bed, headstock, saddle plinth, etc;
- Turcite-B coated on mating surfaces between saddle and guide ways;
- Precision ballscrew, high rigidity precision compound bearings ensure accurate positioning and efficient driving. Centralized oil lubricator providing forced automatic lubrication onto ballscrew, mating surfaces;
- High spindle speed with wide variable speed ranges. Low noise 80db,CKE-Zseries machine adopting the smart automatic gear changing mechanism enables automatic speed changes among low,medium,high speed ranges without turning off the machine
- CKE-i series with independent spindle structure and frequency converted motor or servo motor enables high spindle speed and stepless spindle changing.
- Flexible control panel enables convenient tool setting.
- Popular full enclosed guards with interlock offer a waterproof and chip-free environment.
- Vertical 4-p toolpost,horizontal 6-p toolpost,quick change toolpost,etc are available for your selection;
Item | CKE6180Z | CKE61100M | CKE61125M |
Max. swing over bed(mm) | 800 | 1000 | 1250 |
Width of bed (mm) | 550 | 755 | 755 |
Max. length of work piece (mm) | 1000~4000 | 1000~8000 | 1500~8000 |
Max. swing over slide(mm) | 490 | 630 | 880 |
X travel (mm) | 420 | 520 | 640 |
Z travel (mm) | 790~3790 | 1400~7900 | 1400~7900 |
Spindle nose | C11 | A2-15 | A2-15 |
Chuck size (mm) | 400 |
|
|
Taper of spindle bore | 1:20 | 1:20 | 1:20 |
Spindle bore (mm) | 100 | 130 | 130 |
Steps of spindle speed | 4-step actuator | 4-step actuator | 4-step actuator |
Frequency conversion motor power (kW) | 11 | 22 | 22 |
Rapid traverse X/Z (m/min) | 4/8 | 6/8 | 6/8 |
Vertical 4-position Tool post changing time (s) | 2.6 | 4.0 | 4.0 |
Horizontal 6-position Tool post changing time(s) | 3.0 | 3.0 | 3.0 |
Diameter of tailstock quill (mm) | 100 | 200 | 200 |
Travel of tailstock quill (mm) | 240 | 300 | 300 |
Taper of tailstock quill | M5 | M6 | M6 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
