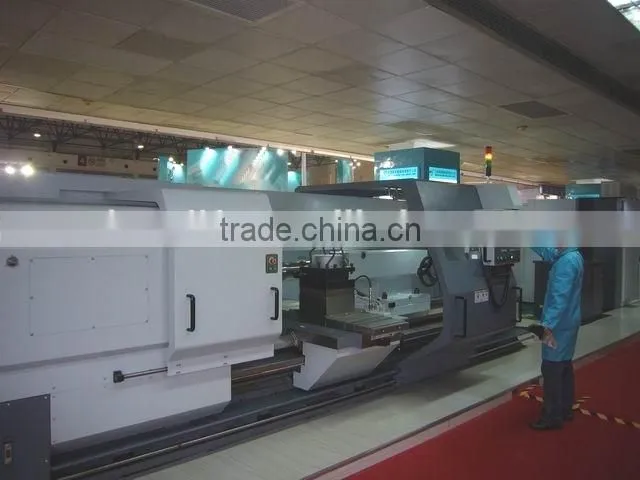

CKE61100Mx5000 Large Flat Bed CNC Lathe for Heavy Machining

CKE61100Mx5000 Large Flat Bed CNC Lathe for Heavy Machining thumbnail-1
CKE61100Mx5000 Large Flat Bed CNC Lathe for Heavy Machining thumbnail-2
CKE61100Mx5000 Large Flat Bed CNC Lathe for Heavy Machining photo-1
CKE61100Mx5000 Large Flat Bed CNC Lathe for Heavy Machining photo-2
US$ 124,599 - 127,136 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 1000mm
Place of Origin Liaoning, China
Brand Name DALIAN
Model Number CKE61100Mx5000
Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz
Power(W) 22/26kW
Weight 17000kgs
Certification CE; ISO9001:2008; GB/T19001:2008
After-sales Service Provided Engineers available to service machinery overseas

CKE61100Mx5000 Heavy Flat bed CNC Lathe



Machine Features:

1. CKE61100M is heavy-duty flat-bed CNC lathe: max load capacity can be 6000kgs;

2. It is a two-axis simultaneously controlled machine with semi-closed-loop CNC feedback system.

3. Servo main motors, 22/26kW;

4. Kinds of CNC Controllers for your choice: FANUC, SIEMENS, FARGO, GSK, etc.

5. With full splash-cover;

6. Vertical 4-station Electrical Tool Post; Horizontal 6/8 Electrcial Tool Post is available, too.

7. With CE Certificate;

8. Featuring heavy duty load, high rigidity & reliable design and structure, it is able to meet various machining, ie. ID & OD turning, threading, contouring, taper turning, end facing, etc. on rotary parts (shafts & discs) of ferrous or non-ferrous metals.

9. Wide applications are made in industries such as automotive, power generation, power transformer, steel, casting & foundry milll, general machining, chemical, petroleum, aerospace & aviation, hydro-mechanical, pump, paper machinery, food machinery, motor, electronics, textile machinery, etc.

Main Technical Data

Specifications

Unit

Parameter

Max. swing over bed

mm

φ1000

Width of bed

mm

755

Max. length of work piece

mm

5000

Max. swing over slide

mm

φ630

X travel

mm

520

Z travel

mm

5900

Spindle nose



A2-15

Chuck size

mm



Taper of spindle bore

Morse

1:20

Spindle bore

mm

φ130

Steps of spindle speed



4-step actuator

Frequency conversion motor power

kW

22

Rapid traverse X/Z

m/min

6/8

Positioning accuracy

mm

X: 0.030  Z:0.080

Repeat positioning accuracy

mm

X: 0.012  Z:0.025

Vertical 4-position Tool post changing time

s

4.0

Horizontal 6-position Tool post changing time

s

3.0

Diameter of tailstock quill

mm

200

Travel of tailstock quill

mm

300

Taper of tailstock quill

Morse

M6

Net weight

t

17

Overall dimensions

mm


Std Configuration
  • Servo main motor, X/Z axis servo motor , automatic 3 gears,  infinitely variable speeds within the gear,
  • Spindle Speed: 5~500rpm, 4-position electric turret, Spindle bore: φ130mm,
  • Bed width: 750mm, φ1000mm manual 4-jaw chuck, manual tailstock;
Factory Overview:

CKE61100Mx5000 Large Flat bed CNC Lathe for Heavy Machining

CKE61100Mx5000 Large Flat bed CNC Lathe for Heavy Machining

CKE61100Mx5000 Large Flat bed CNC Lathe for Heavy Machining

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

  1. 30% down payment, 70% by T/T before shipment;
  2. 100% LC at sight(optional and shall be discussed before placing order);

Delivery Time:

  1. Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.

Minimum Order Quantity:

  1. 1 Set;
  2. ≥2 sets, there will be much discounts.

Warranty:

  1. Normally, 12 months for parts as of delivery of the machines;

Shipment:

  1. For machine itself, by sea or train(inland countries).
  2. For documents, by international express. eg DHL, TNT or EMS.
Packaging & Shipping

CKE61100Mx5000 Large Flat bed CNC Lathe for Heavy Machining

CKE61100Mx5000 Large Flat bed CNC Lathe for Heavy Machining

CKE61100Mx5000 Large Flat bed CNC Lathe for Heavy Machining

CKE61100Mx5000 Large Flat bed CNC Lathe for Heavy Machining
