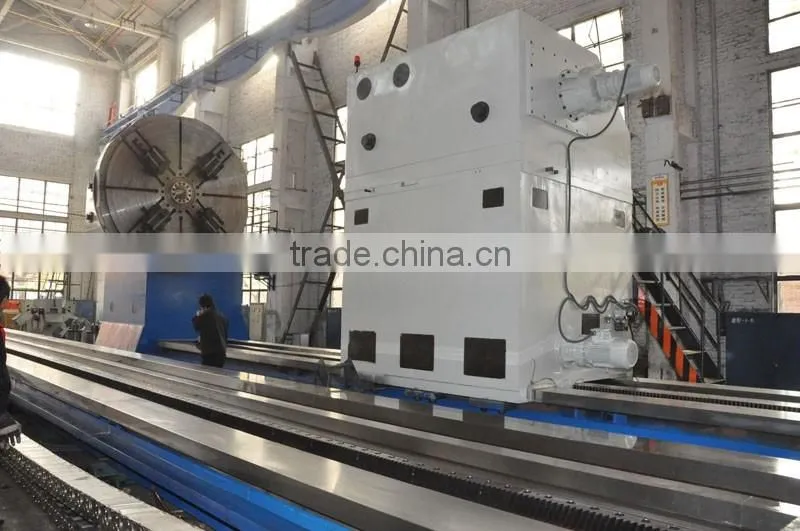

CK61140 Series 8 Tons Load Capacity Cnc Heavy Lathe Machine

Name: CK61140 Series 8 Tons Load Capacity Cnc Heavy Lathe Machine
Brand: DALIAN
SKU: 102713635
Availability: InStock

US$ 21,000 - 79,394 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1400mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CK61140(swing 1400mmx2000~8000mm)

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 30kW

Certification CE Certificate; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CK61140 8 tons CNC Heavy Lathe Technical Data

Main Features:

With CE Certificate;
Kinds of CNC Controllers for your choice: FANUC, SIEMENS, FARGO, GSK, etc.

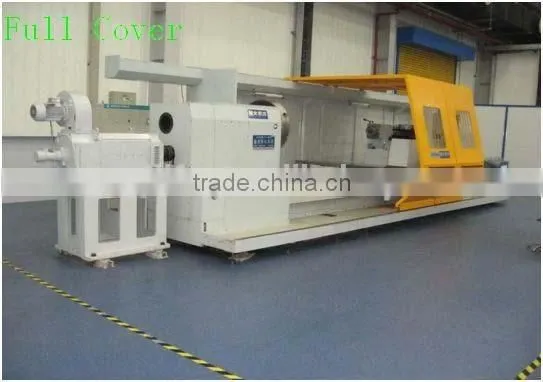

With full splash-cover/also can be semi-cover

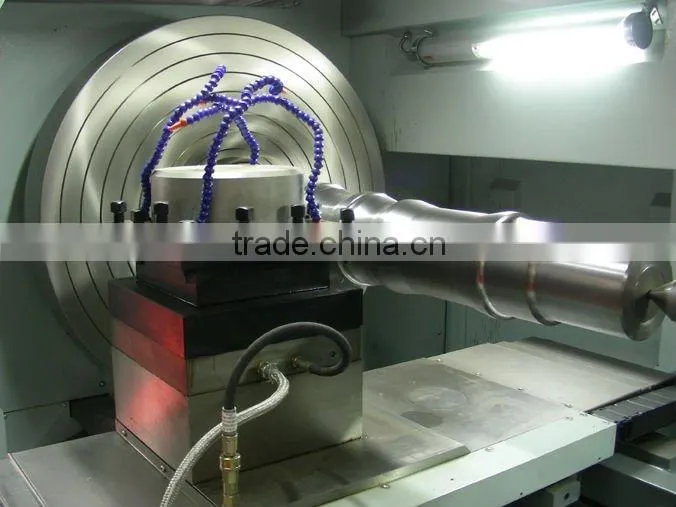

Vertical 4-station Electrical Tool Post; Horizontal 6/8 Electrcial Tool Post is available, too.

Main Technical Data

Specifications	Unit	Parameter
Swing over bed	mm	1400
Swing over carriage	mm	1100
Between distance	mm	2000/4000/6000/8000/10000
Dia. Of chuck	mm	1250
Cutting length	mm	1800/3800/5800/7800/9800
Width of bed	mm	970
Support capacity between centers	kg	8000
Spindle hole through	mm	130
Spindle nose		ISO A2-15
Spindle taper	mm	Metric No. 140
Spindle speed	rpm	2.5~ 250 Manual 21 gears/ automatic 4 gears, infinitely variable speeds within the gear
Turret made by China		4 positions, vertical type
Size of tool holder	mm	32×32
Travel of X-Axis	mm	740
Travel of Z-Axis	mm	3800
Feeding speed of X-Axis & Z-Axis	mm / min.	X: 0.1 ~ 4000 Z: 0.1 ~ 6000
Rapid traverse of X-Axis & Z-Axis	mm / min	X: 4000 Z: 6000
Travel of tailstock quill	mm	300
Diameter of tailstock sleeve	mm	Ø 160
Taper of tailstock quill		Metric No. 80
Rapid speed of tailstock	mm/min	3000
Controller		SIEMENS 802D
Torque of X & Z-axis servo motor	Nm	41
Ball screw of X-axis (diameter)	mm	Ø 50×PITCH 10
power of main servo motor	kW	AC 30
Inverter to change speed of motor		Yasakawa of Japan
Electrical power
Net dimension of the machine	mm
Packing dimension of the machine	mm
N. W./ G. W.	kg
