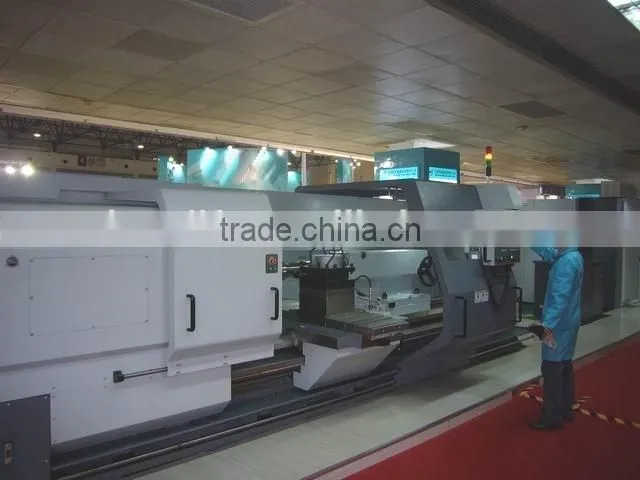

CKE61125M Large CE Flat bed CNC Lathe For Promation
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
- CK210B Small CNC Lathe, Siemens CNC, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
- TP 35/45 Series Parallel Double Spindle Turning Center
- WF-450QTN Line Rail Inclined Bed Turret Lathe
- Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 1250mm | Place of Origin: | Liaoning, China |
Brand Name: | DALIAN | Model Number: | CKE61125M series | Voltage: | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz |
Power(W): | 22kW | Certification: | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

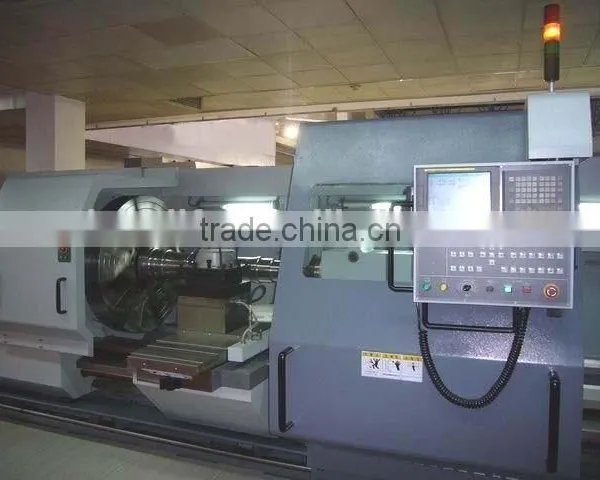

Heavy-duty CE Flat bed CNC Lathe CKE61125M
Standard Configuration
Servo main motor, X/Z axis servo motor , automatic 3 gears, infinitely variable speeds within the gear, Spindle Speed: 5~500rpm, 4-position electric turret, Spindle bore: φ130mm, Bed width: 755mm, φ1250mm manual 4-jaw chuck, manual tailstock;
Specifications | Unit | Parameter |
Max. swing over bed | mm | 1250 |
Width of bed | mm | 755 |
Max. length of work piece | mm | 1500~6000 |
Max. swing over slide | mm | 880 |
X travel | mm | 640 |
Z travel | mm | 7900 |
Spindle nose |
| A2-15 |
Taper of spindle bore | Morse | 1:20 |
Spindle bore | mm | φ130 |
Steps of spindle speed |
| 3-gears automatic |
Frequency conversion motor power | kW | 22 |
Rapid traverse X/Z | m/min | 6/8 |
Positioning accuracy | mm | X: 0.030 Z:0.080 |
Repeat positioning accuracy | mm | X: 0.012 Z:0.025 |
Vertical 4-position Tool post changing time | s | 4.0 |
Horizontal 6-position Tool post changing time | s | 3.0 |
Diameter of tailstock quill | mm | 200 |
Travel of tailstock quill | mm | 300 |
Taper of tailstock quill | Morse | M6 |
Net weigh | kg |
|
Overall dimensions | mm |
|
Overall dimensions | mm | 6320×2300×2200 (Example1500) |
