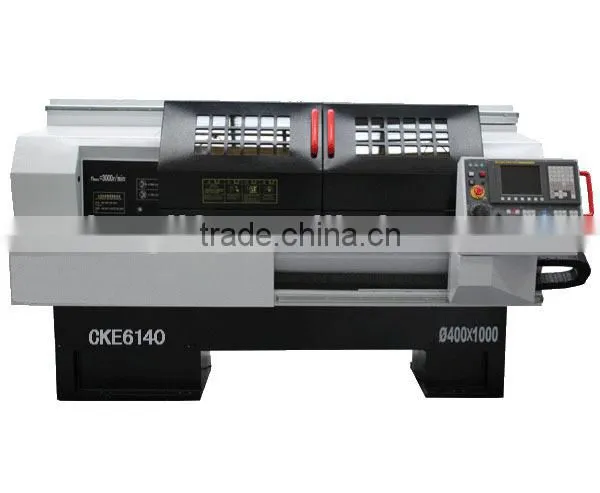

CKE6140Zx1000 CNC Flat Bed Lathe
- All main components, bed, headstock, saddle, plinth, etc., are high-quality solid castings.
- Low friction Turcite-B coating on mating surfaces between saddle and guideways.
- Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability.
- Centralized oil system provides forced automatic lubrication onto ballscrews and all mating surfaces.
- Choice of two model ranges. The CKE-Z series has automatic headstock gear changing, high spindle speed with wide range, and low noise levels of under 80db.
- The CKE-I series, with independent spindle structure, utilizes a frequency converted spindle motor or servomotor to offer stepless high spindle speeds.

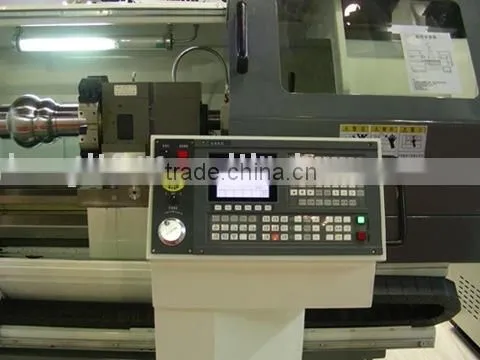

- Operator adjustable control panel enables convenient tool setting.
- Fully enclosed guards with interlock offer a waterproof and chip-free environment.

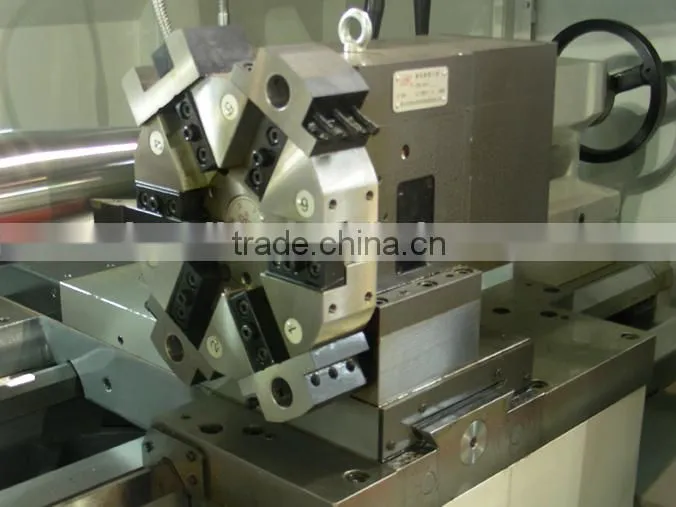

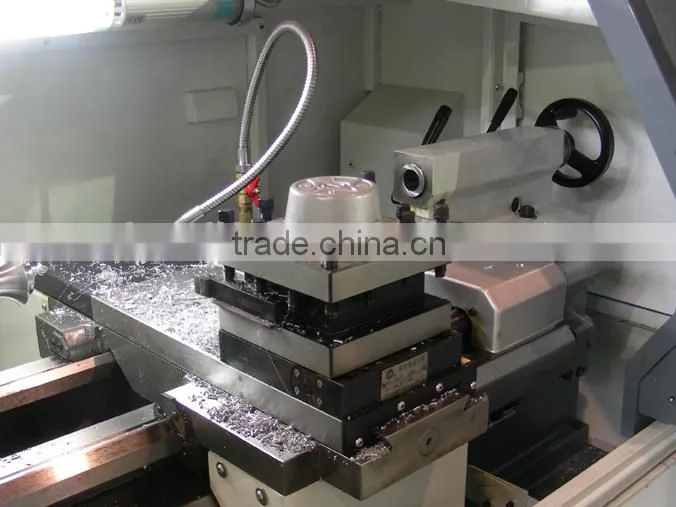

- Horizontal /vertical 4-P automatic tool post is provided as standard, while vertical 4-P indexing tool post, horizontal 6/8-P tool post, quick-change toolpost, etc can also be supplied to suit customers' specific requirements.
- Optional pneumatic or hydraulic chuck and tailstock are available.
- FANUC, SIEMENS, FAGOR, etc control systems can be supplied.
- E-hand wheel function is also available.
- 3 kinds of main motors for your choice: 2-speed main motor; varaible-frequency main motor and Servo main motor;
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
φ400 |
Width of bed |
mm |
300 |
Max. length of work piece |
mm |
1000 |
Max. swing over slide |
mm |
φ200 |
X travel |
mm |
225 |
Z travel |
mm |
620/870 |
Spindle nose |
|
A2-6/D6 |
Chuck size |
mm |
φ200 |
Taper of spindle bore |
Morse |
M6 |
Spindle bore |
mm |
φ52 |
Frequency conversion motor power |
kW |
5.5 |
Rapid traverse X/Z |
m/min |
4/5 |
Positioning accuracy |
mm |
X: 0.030 Z:0.040 (750) 0.045 (1000) |
Repeat positioning accuracy |
mm |
X:0.012 Z:0.016(750) 0.020(1000) |
Vertical 4-position Tool post changing time |
s |
2.4 |
Horizontal 6-position Tool post changing time |
s |
3.0 |
Diameter of tailstock quill |
mm |
63 |
Travel of tailstock quill |
mm |
130 |
Taper of tailstock quill |
Morse |
M4 |
Net weigh |
kg |
1950 |
Overall dimensions |
mm |
|
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
