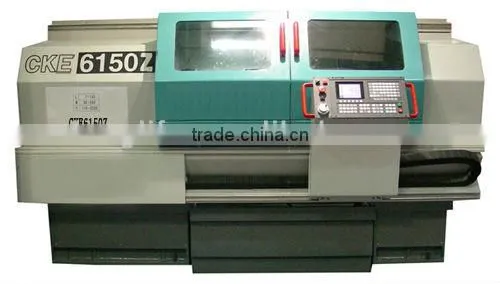

Help CenterCKE6156(Z) Economic Flat-bed CNC Lathe With CE
Related Products
-
CKE6163(Z)x1000 CE Flat Bed Metal Cnc LatheUS$ 25,925 - 37,710MOQ: 1 Set -
CKE6166 Hot-sale CNC Flat-bed Lathe With CEUS$ 13,517 - 28,865MOQ: 1 Set
-
CKE6180 Middle-sized CNC Horizontal Lathe With CEUS$ 27,706 - 65,880MOQ: 1 Set
-
CKE61100M Large Flat Bed CNC Lathe for Heavy MachiningUS$ 95,380 - 135,188MOQ: 1 Set
-
CK61100 Series CNC Horizontal Lathe With 6 Tons Load CapacityUS$ 159,017 - 509,394MOQ: 1 Set
CKE6156(Z) CNC Lathe Technical Specifications
- All main components, bed, headstock, saddle, plinth, etc., are high-quality solid castings.
- Low friction Turcite-B coating on mating surfaces between saddle and guideways.
- Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability.
- Centralized oil system provides forced automatic lubrication onto ballscrews and all mating surfaces.
- Choice of two model ranges. The CKE-Z series has automatic headstock gear changing, high spindle speed with wide range, and low noise levels of under 80db.
- The CKE-I series, with independent spindle structure, utilizes a frequency converted spindle motor or servomotor to offer stepless high spindle speeds.
- Operator adjustable control panel enables convenient tool setting.
- Fully enclosed guards with interlock offer a waterproof and chip-free environment.
- Horizontal /vertical 4-P automatic tool post is provided as standard, while vertical 4-P indexing tool post, horizontal 6/8-P tool post, quick-change toolpost, etc can also be supplied to suit customers' specific requirements.
- Optional pneumatic or hydraulic chuck and tailstock are available.
- FANUC, SIEMENS, FAGOR, etc control systems can be supplied.
- E-hand wheel function is also available.
- 3 kinds of main motors for your choice: 2-speed main motor; varaible-frequency main motor and Servo main motor;
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
φ560 |
Width of bed |
mm |
400 |
Max. length of work piece |
mm |
750/1000/1500/2000 |
Max. swing over slide |
mm |
φ330 |
X travel |
mm |
305 |
Z travel |
mm |
680/930/1430/1930 |
Spindle nose |
|
D8 |
Chuck size |
mm |
φ250 |
Taper of spindle bore |
Morse |
1:20 |
Spindle bore |
mm |
φ82 |
Steps of spindle speed |
|
3-step actuator |
Frequency conversion motor power |
kW |
7.5 |
Rapid traverse X/Z |
m/min |
6/10 |
Positioning accuracy |
mm |
X: 0.030 Z: 0.040(750) 0.045(1000/1500) 0.050(2000) |
Repeat positioning accuracy |
mm |
X: 0.012 Z:0.016 |
Vertical 4-position Tool post changing time |
s |
2.4 |
Horizontal 6-position Tool post changing time |
s |
3.0 |
Diameter of tailstock quill |
mm |
75 |
Travel of tailstock quill |
mm |
150 |
Taper of tailstock quill |
Morse |
M5 |
Net weigh |
kg |
2600/2650/2750/2850 |
Overall dimensions |
mm |
2580×1750×1620 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
