CKE6163(Z)x1000 CE flat bed metal cnc lathe
- 100 Set / Sets per Month
- Dalian China
- T/T Credit Card PayPal
-
CK210B Small CNC Lathe, Siemens CNC, training cnc, cnc trainer, school cnc, training cnc
-
CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
-
CK210B Small CNC Lathe, servo motor, training cnc, cnc trainer, school cnc, training cnc
-
TP 35/45 Series Parallel Double Spindle Turning Center
-
WF-450QTN Line Rail Inclined Bed Turret Lathe
-
Prototype CNC Lathe ,CNC Turning Lathe Machines,mini lathe,CNC lathe,rolling cnc milling,hobby cnc lathe,DIY CNC lathe
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 630mm | Place of Origin: | Liaoning, China |
Brand Name: | DALIAN | Model Number: | CKE6163(Z) | Voltage: | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz |
Power(W): | 11kW | Dimension(L*W*H): | 3455x2000x1800mm | Weight: | 4800kgs |
Certification: | CE Certificate; ISO9001:2008; GB/T19001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

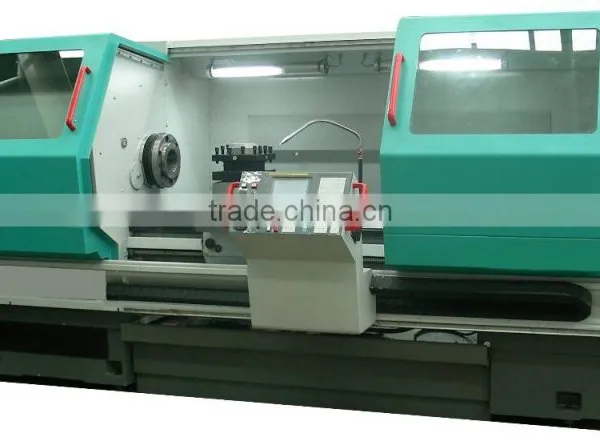

CKE6163(Z)x1000 CNC Flat Bed Lathe with CE
CKE6163 cnc lathe has following featurers:
- All main components, bed, headstock, saddle, plinth, etc., are high-quality solid castings.
- Low friction Turcite-B coating on mating surfaces between saddle and guideways.
- Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability.
- Centralized oil system provides forced automatic lubrication onto ballscrews and all mating surfaces.
- Choice of two model ranges. The CKE-Z series has automatic headstock gear changing, high spindle speed with wide range, and low noise levels of under 80db.
- The CKE-I series, with independent spindle structure, utilizes a frequency converted spindle motor or servomotor to offer stepless high spindle speeds.
- Operator adjustable control panel enables convenient tool setting.
- Fully enclosed guards with interlock offer a waterproof and chip-free environment.
- Horizontal /vertical 4-P automatic tool post is provided as standard, while vertical 4-P indexing tool post, horizontal 6/8-P tool post, quick-change toolpost, etc can also be supplied to suit customers' specific requirements.
- Optional pneumatic or hydraulic chuck and tailstock are available.
- FANUC, SIEMENS, FAGOR, etc control systems can be supplied.
- E-hand wheel function is also available.
- 3 kinds of main motors for your choice: 2-speed main motor; varaible-frequency main motor and Servo main motor; 11kW
Specifications | Unit | Parameter |
Max. swing over bed | mm | φ630 |
Width of bed | mm | 550 |
Max. length of work piece | mm | 1000 |
Max. swing over slide | mm | φ320 |
X travel | mm | 320 |
Z travel | mm | 790 |
Spindle nose |
| C11 |
Chuck size | mm | φ400 |
Taper of spindle bore | Morse | 1:20 |
Spindle bore | mm | φ100 |
Steps of spindle speed |
| 4-step actuator |
Frequency conversion motor power | kW | 11 |
Rapid traverse X/Z | m/min | 4/8 |
Positioning accuracy | mm | X: 0.030 Z: 0.045 |
Repeat positioning accuracy | mm | X: 0.012 Z: 0.020 |
Vertical 4-position Tool post changing time | s | 2.6 |
Horizontal 6-position Tool post changing time | s | 3.0 |
Diameter of tailstock quill | mm | 100 |
Travel of tailstock quill | mm | 240 |
Taper of tailstock quill | Morse | M5 |
Net weight | kg | 4800 |
Overall dimensions | mm | 3455×2000×1800 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
