Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 1250mm | Place of Origin: | Liaoning, China |
Brand Name: | DALIAN | Model Number: | CKE6130i CKE6136Z/40Z CKE6150Z CKE6166Z CKE6180Z cnc lathe machine | Voltage: | 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz |
Power(W): | 5.5/7.5/11kW | Dimension(L*W*H): | Depend | Weight: | 4500~13500kgs |
Certification: | CE; SO9001:2008; GB/T19001:2008;CE; | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

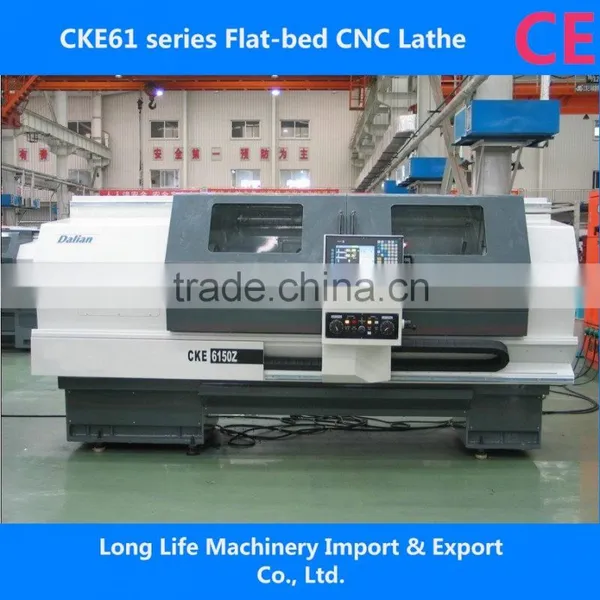

CKE61 Series flat bed cnc lathe machine specification
This series cnc lathe has following featurers:
- All main components, bed, headstock, saddle, plinth, etc., are high-quality solid castings.
- Low friction Turcite-B coating on mating surfaces between saddle and guideways.
- Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability.
- Centralized oil system provides forced automatic lubrication onto ballscrews and all mating surfaces.
- Choice of two model ranges. The CKE-Z series has automatic headstock gear changing, high spindle speed with wide range, and low noise levels of under 80db.
- The CKE-I series, with independent spindle structure, utilizes a frequency converted spindle motor or servomotor to offer stepless high spindle speeds.
- Operator adjustable control panel enables convenient tool setting.
- Fully enclosed guards with interlock offer a waterproof and chip-free environment.

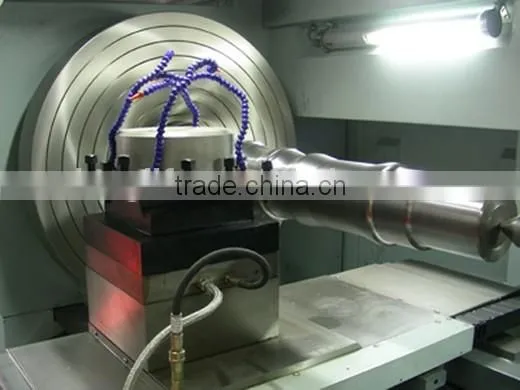

- Horizontal /vertical 4-P automatic tool post is provided as standard, while vertical 4-P indexing tool post, horizontal 6/8-P tool post, quick-change toolpost, etc can also be supplied to suit customers' specific requirements.
- Optional pneumatic or hydraulic chuck and tailstock are available.
- FANUC, SIEMENS, FAGOR, etc control systems can be supplied.
- E-hand wheel function is also available.
- 3 kinds of main motors for your choice: 2-speed main motor; varaible-frequency main motor and Servo main motor;

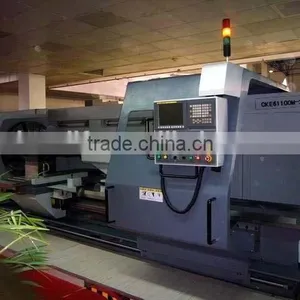

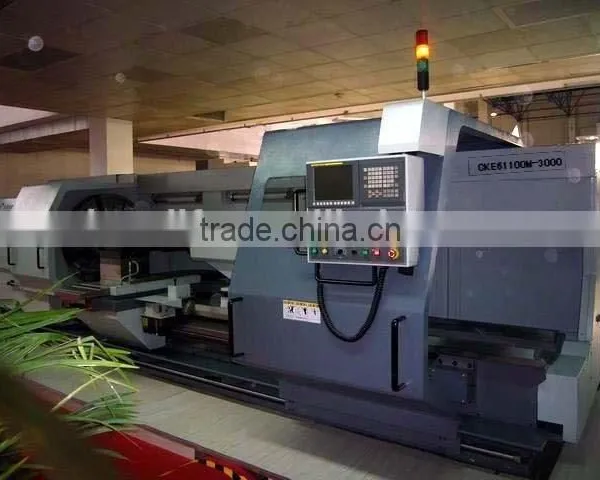

Item | CKE6130i | CKE6136Z | CKE6140Z | CKE6150Z | CKE6156Z | CKE6163Z | CKE6166Z | CKE6180Z | CKE61100M | CKE61125M |
Max. swing over bed(mm) | 300 | 360 | 400 | 500 | 560 | 630 | 660 | 800 | 1000 | 1250 |
Width of bed (mm) | 205 | 300 | 300 | 400 | 400 | 550 | 400 | 550 | 755 | 755 |
Max. length of work piece (mm) | 600 | 750~1000 | 750~1000 | 750~2000 | 750~2000 | 1000~4000 | 750~2000 | 1000~4000 | 1000~8000 | 1500~8000 |
Max. swing over slide(mm) | 145 | 180 | 200 | 280 | 330 | 320 | 430 | 490 | 630 | 880 |
X travel (mm) | 190 | 205 | 225 | 280 | 305 | 320 | 305 | 420 | 520 | 640 |
Z travel (mm) | 550 | 620~870 | 620~870 | 680~1930 | 680~1930 | 790~3790 | 680~1930 | 790~3790 | 1400~7900 | 1400~7900 |
Spindle nose | A2-5 | A2-6/D6 | A2-6/D6 | D8 | D8 | C11 | D8 | C11 | A2-15 | A2-15 |
Chuck size (mm) | 165 | 200 | 200 | 250 | 250 | 400 | 315 | 400 |
|
|
Taper of spindle bore | M5 | M6 | M6 | 1:20 | 1:20 | 1:20 | 1:20 | 1:20 | 1:20 | 1:20 |
Spindle bore (mm) | 40 | 52 | 52 | 82 | 82 | 100 | 82 | 100 | 130 | 130 |
Steps of spindle speed | step less | 2-step actuator | 2-step actuator | 3-step actuator | 3-step actuator | 4-step actuator | 3-step actuator | 4-step actuator | 4-step actuator | 4-step actuator |
Frequency conversion motor power (kW) | 4.0 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 7.5 | 11 | 22 | 22 |
Rapid traverse X/Z (m/min) | 4/5 | 4/5 | 4/5 | 6/10 | 6/10 | 4/8 | 4/8 | 4/8 | 6/8 | 6/8 |
Vertical 4-position Tool post changing time (s) | 2.1 | 2.4 | 2.4 | 2.4 | 2.4 | 2.6 | 2.4 | 2.6 | 4.0 | 4.0 |
Horizontal 6-position Tool post changing time(s) | 2.8 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
Diameter of tailstock quill (mm) | 42 | 63 | 63 | 75 | 75 | 100 | 75 | 100 | 200 | 200 |
Travel of tailstock quill (mm) | 110 | 130 | 130 | 150 | 150 | 240 | 150 | 240 | 300 | 300 |
Taper of tailstock quill | M3 | M4 | M4 | M5 | M5 | M5 | M5 | M5 | M6 | M6 |
Flexible control panel enables convenient tool setting. |
Popular full enclosed guards with interlock offer a waterproof and chip-free environment. |
Vertical 4-p toolpost,horizontal 6-p toolpost,quick change toolpost,etc are available for your selection |
Optional, pneumatic, hydraulic chuck and tailstock are available. |
FANUC, SIEMENS, FAGOR, etc control systems can be appointed E-hand wheel function can also be equipped. |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Delivery Time:
- Normally, 30~60 days, however, different sizes of machines, delivery time will be different, pls consult for exact machine.
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
