L57/51 Series Vertical Internal Broaching Machine

L57/51 Series Vertical Internal Broaching Machine thumbnail-1
L57/51 Series Vertical Internal Broaching Machine photo-1
US$ 125029.00 - 125029.00 MOQ: 2 Sets
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
LFM
Model Number:
LFM5720, LFM5140F vertical internal broaching machine
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Tianjing/Shanghai/Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name LFM
Model Number LFM5720, LFM5140F vertical internal broaching machine
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Hydraulic Vertical Internal Broacher

L57/51 Series vertical internal broaching machine



Main Technical Data:

Specifications

Unit

LFM5720

LFM5140F

Rated pulling capacity

kN

200

400

Nominal working stroke

mm

1600

2000

Working stroke speed(stepless)

m/min

2~10

2~7.5

Return stroke main sliding plate

speed of main sliding plate (stepless)

m/min

2~20

3~18

Speed of tools(to main sliding board)

m/min

1~5

1~5

Pushing speed of pushing tool (to main sliding board)

m/min

1~5

1~5

Worktable size(lengthxwidth)

mm

430×380

690×480

Max. size of workpiece(ODxWidth)

mm

Φ280×90

Φ520×150

Hole diameter of worktable

mm

φ200

φ250

The aperture of the faceplate

mm

Φ100 H7

Φ150H7

Max. length of tool

mm

1700

2200

Min. length of tool

mm

600

800

Distance from tool to surface of main slidingboard

mm

210

264

Distance from tools to sub-sliding board

mm

111

129.5

Operation height

mm

≤1100

≤900

Distance from end face of toolshank to

worktable surface

mm

200

330

Axial piston pump for main drive



A145-F-R-04

A3H180-FR14K

Displacement

ml/r

145

180

Max. working pressure

MPa

16

16

Rotated working pressure

MPa

11

11

Main motor



Y200L-4-B35

Y225M-4-B35

The main motor power

kW

30

45

Main motor rotational speed

r/min

1470

1480

Motor pump package for sub system



SVPF-40-70(4P-3HP)

SVPF-40-70(4P-3HP)

Max. working pressure

MPa

6

6

Rotated working pressure

MPa

4

4

Power of sub-motor

kW

2.2

2.2

Speed of sub-motor

r/min

1420

1420

coolant pump



QLY6-45×5 -A

QLY6-45×5 -A

Lift of coolant pump

m

45

45

Cooling pump flow

m3/h

6

6

Cooling pump power

kW

2.2

2.2

Rotational speed cooling pump

r/min

2840

2840

Power of lub pump

W

100

100

Flow amount of lub pump

ml/min

150

150

volume of lub pump

L

3

3

ZLYC1 7U

Magneto chi p conveyor ZLYC1 7U power

W

200

200

Total capacity of main motor

kW

36

55

Overall dimension(LxWxH)

mm

3000×3700×5000

3900×3143×6700

Net weight machine

kg

13000

21000

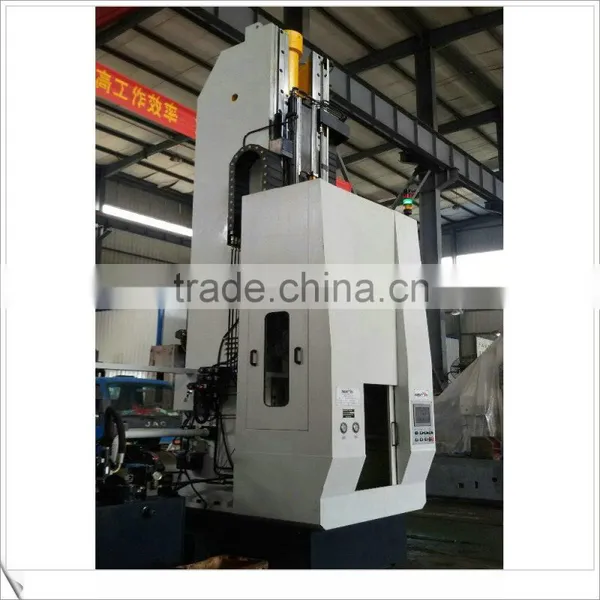

Real Photos:

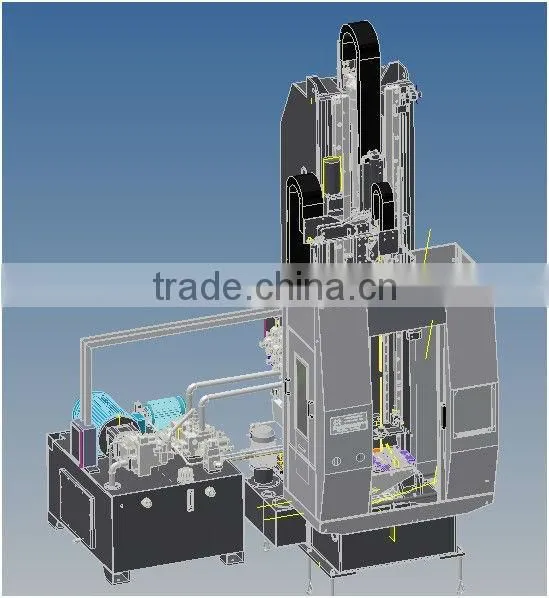

L57/51 Series vertical internal broaching machine
Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

Call us at any time: +86 -15641121240/15641121140

Fax us:+86-411-84410129

FAQ

Payment Term:

  1. 30% down payment, 70% by T/T before shipment;
  2. 100% LC at sight(optional and shall be discussed before placing order);

Minimum Order Quantity:

  1. 1 Set;
  2. ≥2 sets, there will be much discounts.

Warranty:

  1. Normally, 12 months for parts as of delivery of the machines;

Shipment:

  1. For machine itself, by sea or train(inland countries).
  2. For documents, by international express. eg DHL, TNT or EMS.
Factory Overview:

L57/51 Series vertical internal broaching machine

L57/51 Series vertical internal broaching machine
